Main Window (Layout 0): Adjustment Window (Default)
You use this window to set up a measurement process and perform test measurements to confirm
whether the measurements are processed as intended.
Based on the results of the test measurement, move to the property settings for each processing unit
and make adjustments.
When the Main Window (layout 0) is being displayed, measurement results are not output and the
RUN signal remains OFF. (Layout modification can be used to change the layout.)
You can manually execute or stop test measurements.
If the measurement results are stable, switch to the Main Window (layout 1) and perform measure-
ments.
Additional Information
Use the following procedure to switch to Main Window (layout 1).
Select Switch layout from the Function menu (default layout).
l

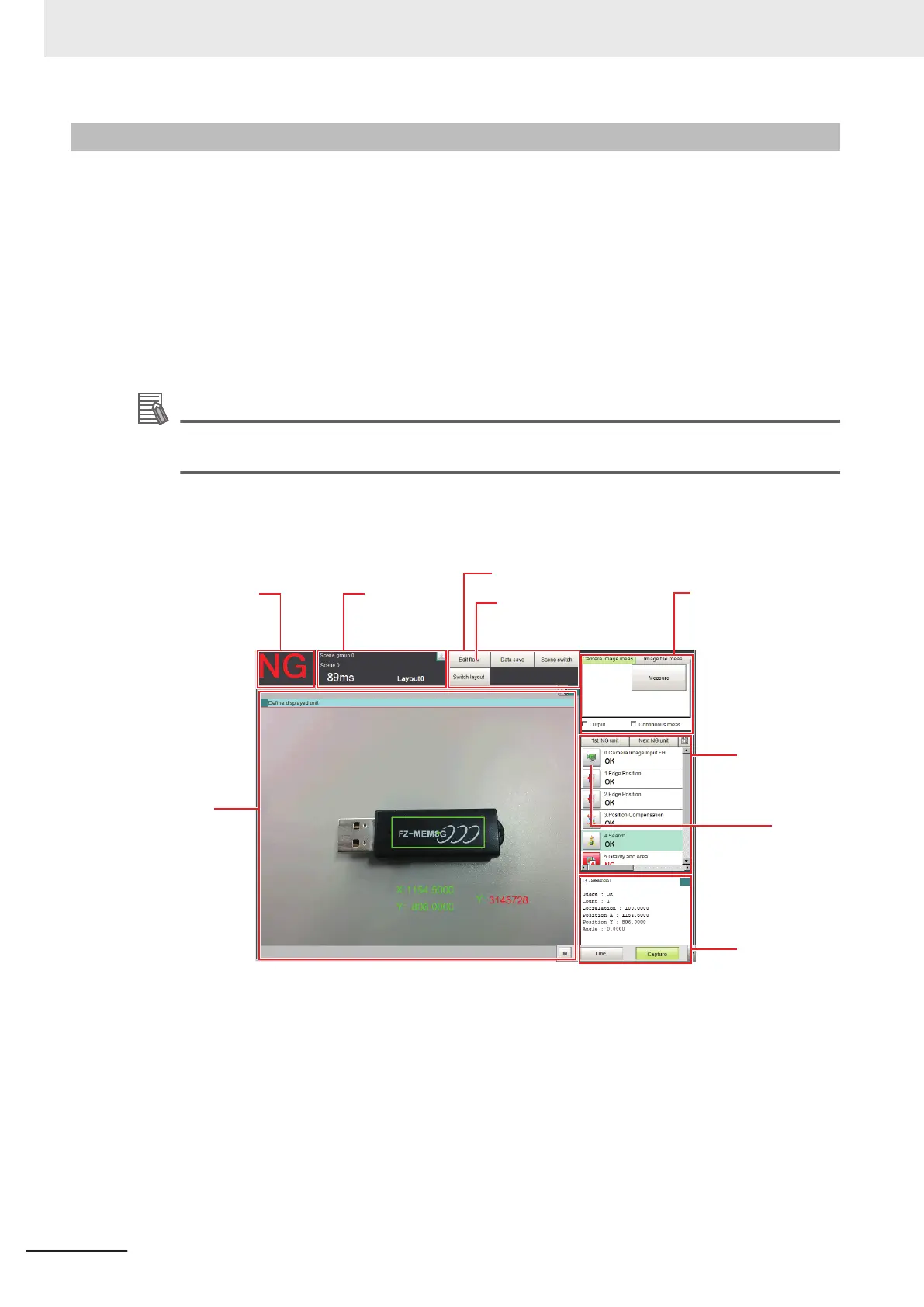

Names of the Parts of the Main Window (Layout 0): Adjustment Window
(Default)
3. Toolbox Pane
This button displays the edit flow window.
4. Measurement Pane
7. Flow Display Pane
6. Detail Result Pane
The Properties
Tab Page is
displayed.
2. Information
Pane
1. Judgement
Pane
5. Image
Pane
(1)
Judgement Pane
• Overall Judgement Result:
The overall judgment (OK/NG) for the scene is displayed.
This is the overall judgement result for the entire scene. If any processing unit that is reflect-
ed in the overall judgement returns NG, the overall result is NG.
(The judgement results for individual processing units are displayed in the Detail Result
Pane.)
(2)
Information Pane
• Layout:
The number of the currently display layout is displayed.
8 Setting Windows
8 - 4
FH/FHV Series Vision System User’s Manual (Z365-E1)
