Omron fh series User Manual

A-6
Image file
IFZ/BMP(BFZ)/JPG(JFZ) file types can be selected as a save image file type. Select the types accord-
ing to user environment.
(Refer to 6-3-1 Logging Measurement Values and Measurement Images [Data Logging/Image Log-
ging] on page 6 - 7, 3-2-3 Selecting Files and Folders on page 3 - 9.)
A-6-1
IFZ file type
IFZ file type is an OMRON image file type using FH/FHV/FZ/FJ series or FQ series.
A-6-2
BMP(BFZ) file type
BMP(BFZ) file types are image file types supported in software version 5.50, or later. This is an image
logging file format based on BMP image file types in a directory format.

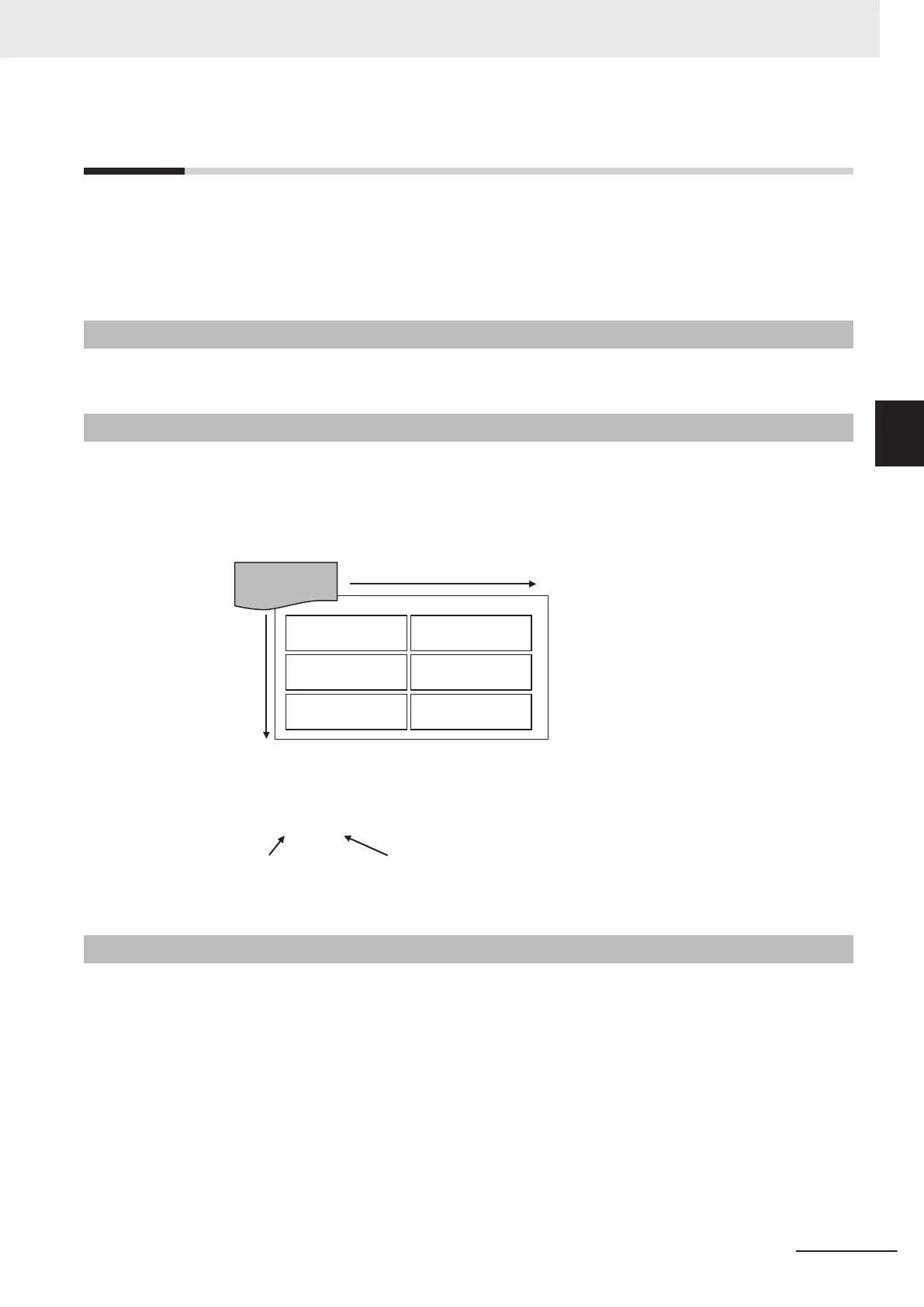

The BFZ file format is for Multiple image logging and is actually a container file comprised of multiple
BMP format image files. See the BFZ file structure below.
Camera number
***.bfz
Number of
Camera input image
The file names for the BMP image files included in the BFZ image logging file are determined auto-
matically.The name is configured camera number and input order of camera input as below.
Number of camera input image
(Image*)
Camera numbe
r
(Camera*)
A-6-3
JPG(JFZ) file type
PG(JFZ) file types are image file types supported in software version 5.71, or later. This is an image
logging file format based on JPG image file types in a directory format.
The JFZ file format is for Multiple image logging and is actually a container file comprised of multiple
JPG format image files. See the JFZ file structure below.
Appendices
A - 21
FH/FHV Series Vision System User’s Manual (Z365-E1)
A-6 Image file
A
A-6-1 IFZ file type
