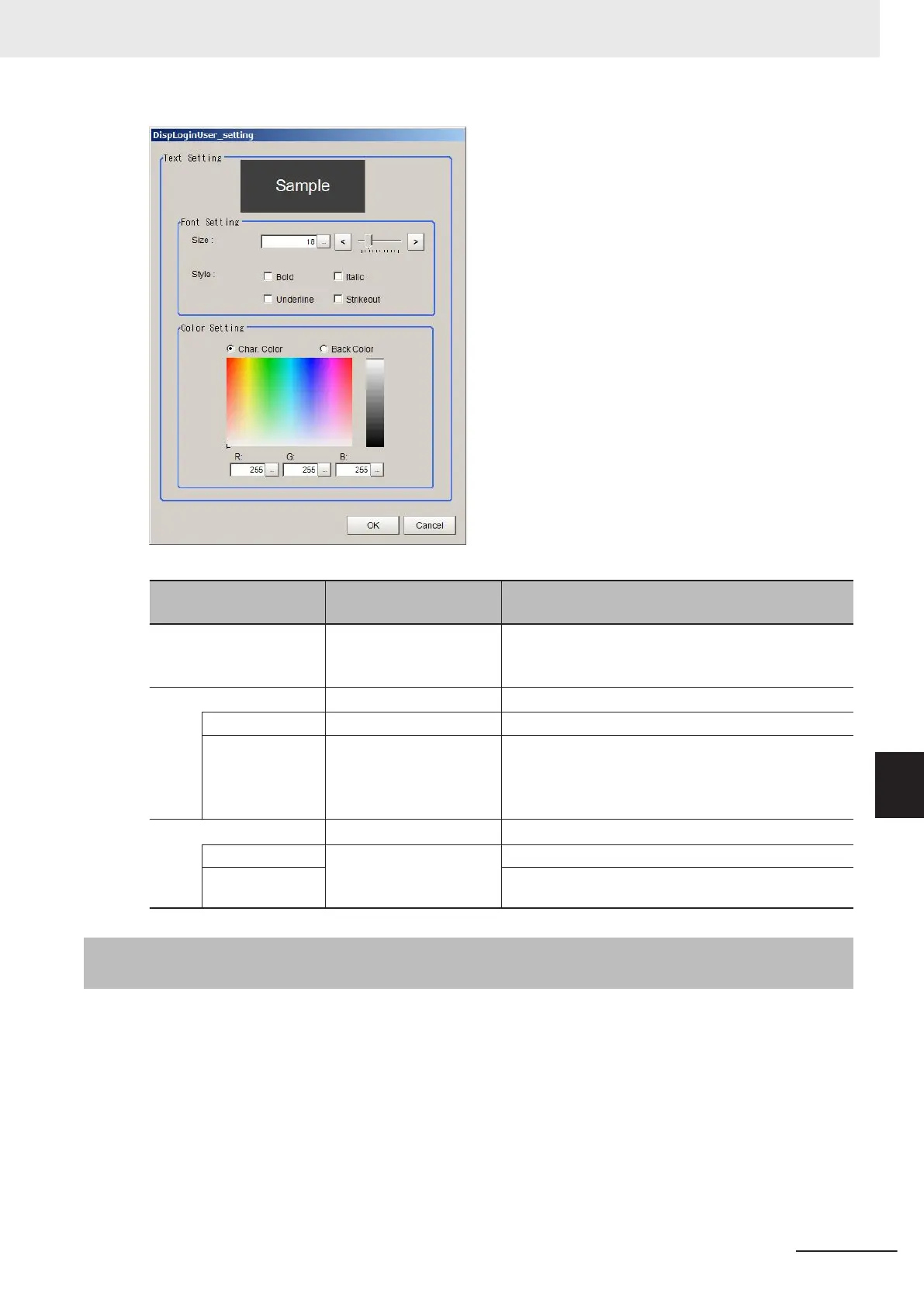

Text Setting - Sets character data to display.
The set contents for Font Setting and Color Setting
are displayed in the Text Setting area.
Font Setting - Sets display font.
Size 1 to 100 [18] Sets the font size.
Style
• Bold
• Italic
• Underline
• Strikeout
Sets the font style.
Check the box of your desired style.
Color Setting - Sets the character and background colors.
Char. Color R: 0 to 255 [255]
G: 0 to 255 [255]
B: 0 to 255 [255]
Sets the character color.
Back Color Sets the background color.
8-3-17
Setting Dialog Box Display Button Window (MDI_DispSe-
tupBtn.dll)
Window part to start the processing item settings dialog box and external tools through use of buttons.
This comprises the following elements.
• Display button
Details that can be set are as follows.
8 Setting Windows
8 - 45
FH/FHV Series Vision System User’s Manual (Z365-E1)
8-3 Arranging Windows [Layout Functions]
8
8-3-17 Setting Dialog Box Display Button Window (MDI_DispSe-
tupBtn.dll)
