1-1
Checking the System Configuration
1-1-1
System Configuration
The FH/FHV is a Vision Sensor that uses a controller to process measurements of objects that are
imaged with a Camera.
You connect an LCD for operations and monitoring, and various Cameras to the FH/FHV series Sen-
sor Controller. You connect external devices, such as a PLC or a computer, through a parallel, Ether-
net, or RS-232C cable.
You can connect up to eight Cameras, depending on the model of the Controller. To measure more
than one line with a single Sensor Controller, you assign the Camera for the measurements to each
line beforehand, and switch between Cameras during the measurement flow.
Communications protocol Communications cable Connector on the FH
Parallel Parallel I/O cable I/O connector
Ethernet cable Ethernet connector PLC Link
RS-232C cable RS-232C connector
EtherNet/IP Ethernet cable Ethernet connector
EtherCAT Ethernet cable
Connector for EtherCAT communications
Ethernet cable Ethernet connector Non-procedure
RS-232C cable RS-232C connector
LCD
FZ-M08
(8.4-inch)
Camera
Camera
Sensor Controller
• Controller with 2 Camera channels
• Controller with 4 Camera channels
• Controller with 8 Camera channels
Camera Cable (e.g., FZ-VS3)
Communications cable
External device
(
e.g., PL
C)
*1. FZ-MEM2G or FZ-MEM8G USB Memor
y
is sold separatel
y
.
Lighting
Monitor cable
(e.g., FH-VMDA)
Up to 2, 4, or 8 Cameras
depending on the model of
the FH series Sensor
Controller

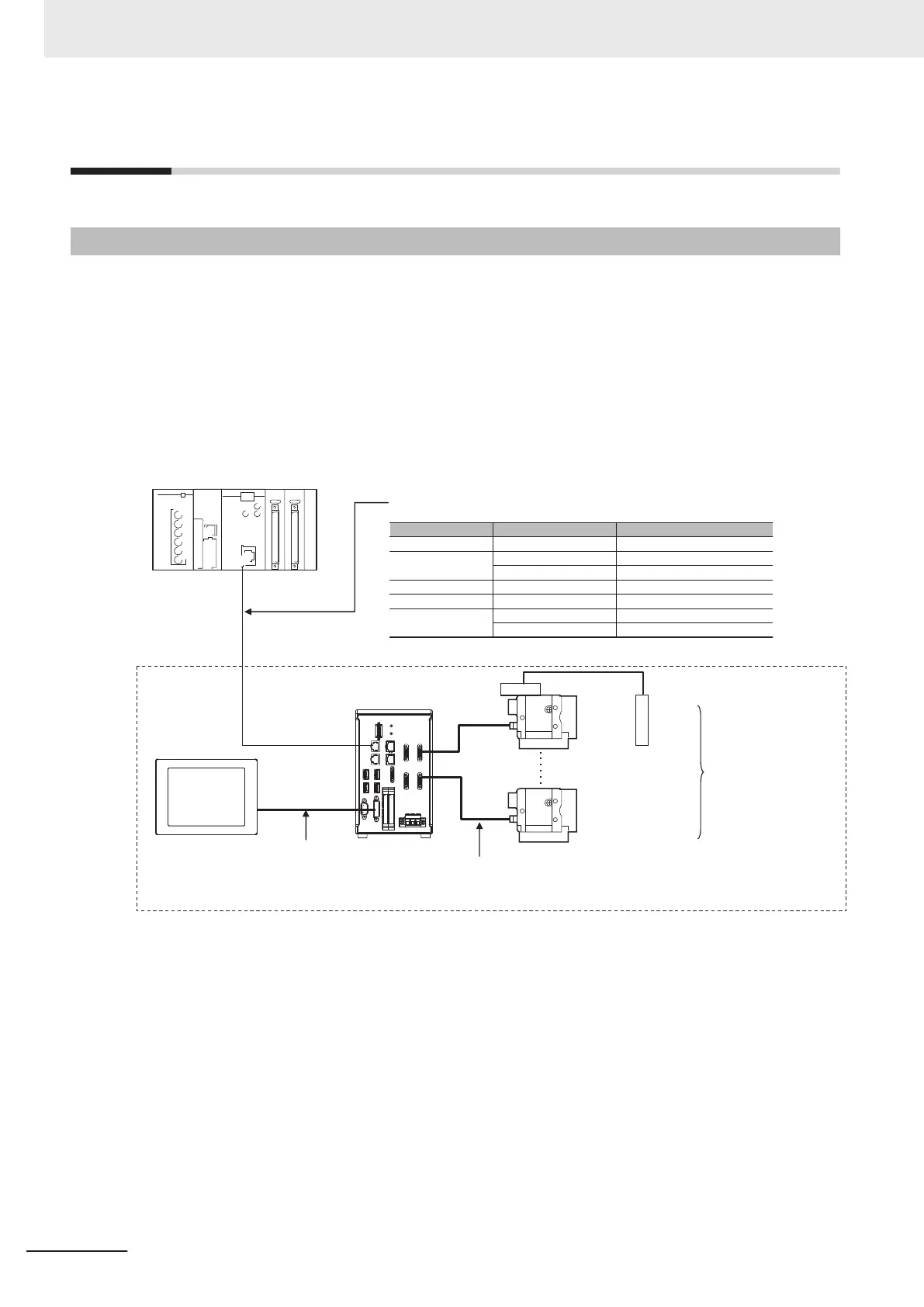

Example
FH series System
For details of the system configuration each series or basic configuration, refer to the Vision System
FH series Hardware Setup Manual (Cat. No. Z366) / FHV Series Smart Camera Setup Manual (Cat.
No. Z408).
1 Overview
1 - 2
FH/FHV Series Vision System User’s Manual (Z365-E1)
