9-3
Saving Setting Data to the Controller
RAMDisk or an External Storage De-
vice
Setting data files are saved to the RAMDisk or to an external storage device. The following table lists
the data that can be saved.
Data Description
System data (*.ini) Indicates the shared setting data, i.e. System menu.
Scene data (*.scn) Indicates each setting data, i.e. unit setting value, Scene order, layout or
size of Image Pane.
Scene group data (*.sgp) Indicates data including 128 Scene.
System + Scene group 0 data
(*.bkd)
Indicates both system data and Scene group 0 data.
Precautions for Correct Use
• Do not try to restart, turn OFF the power source, or remove the external storage during sav-
ing data. Data may be corrupted and will not be perform correctly next launching. In particu-
lar, when the target data of Data save is System +Scene group 0 as it is saved to the flash
memory of Sensor Controller simultaneously.
• If the software version to load is not older than the software version which is saved the setting
data, it possible not to be loaded the setting data file.
Additional Information
When Save to file is executed, the data to save is also saved in the Controller (except scene
group data 1 to 31).
1 To save to a USB memory device (or an SD memory card), insert the USB memory device (or
SD memory card) in the Controller.

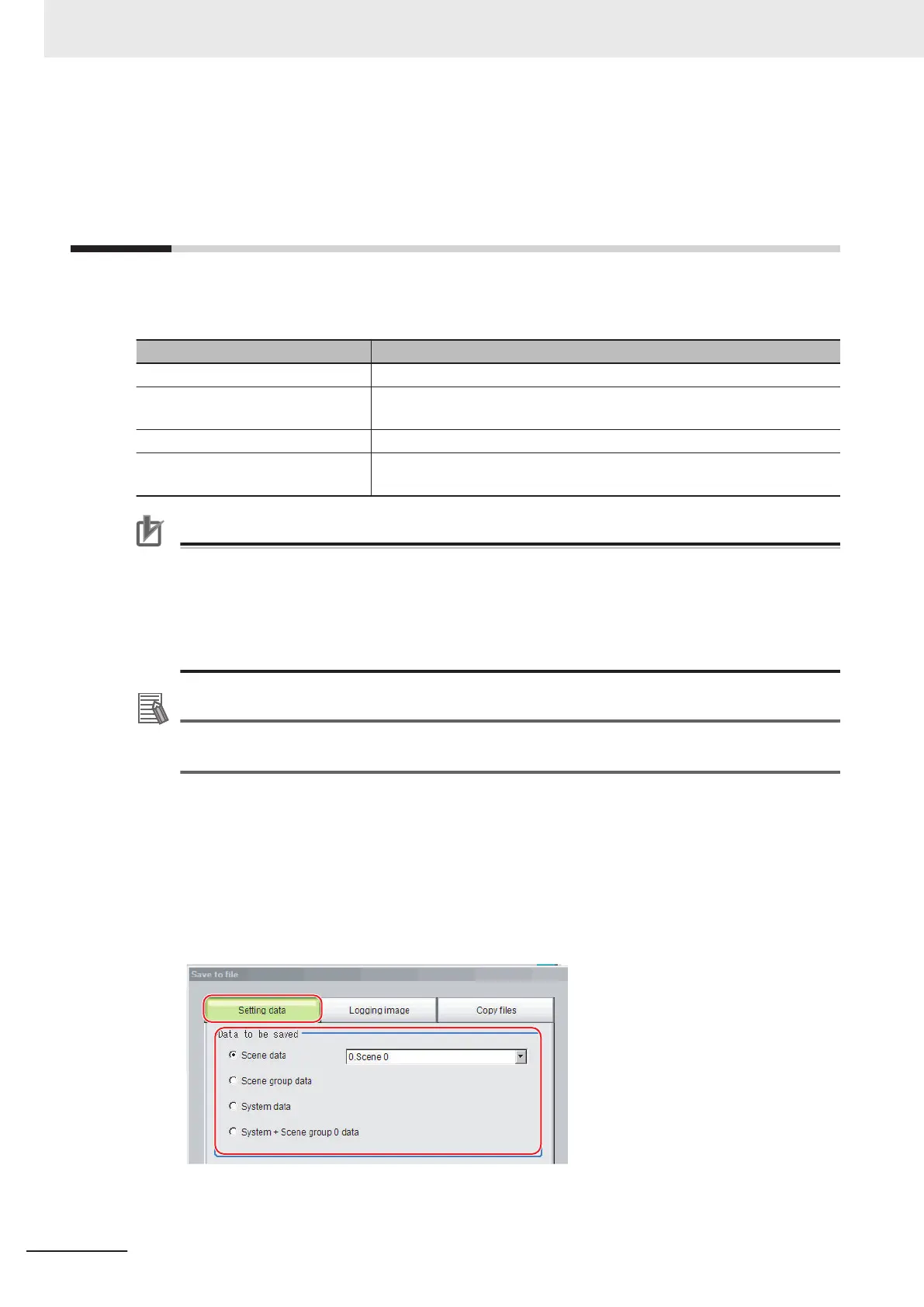

2 In the Main Window, select Save to file from the Function menu.
The Save to file dialog box is displayed.
3 Click the Setting data button to select the data to save.
4 If you selected Scene data, click the ▼ button to select the number of the scene to save.
9 Saving/Loading Data
9 - 8
FH/FHV Series Vision System User’s Manual (Z365-E1)
