Main Window (Layout 1): Run Window (Default)
This window is used to perform actual measurements. The measurement results are output through
the communications interfaces.
If the Controller is ready to perform measurements, the RUN signal turns ON.
When this window is displayed, the FH/FHV is ready to perform measurements.
If a measurement trigger is input from an external device, the FH/FHV begins execution of measure-
ment processing according to the contents and sequence that is set in the measurement flow.
Additional Information
Use the following procedure to switch to Main Window (layout 0).
Select Switch layout from the Function menu (default layout).
l
Names of the Parts of the Main Window (Layout 1): Run Window (Default)
The functions of each display window are the same as for the Main Window (layout 0).
The Toolbox Pane and Measurement Pane that are displayed on the Main Window (layout 0) are
not displayed. (Layout modification can be used to change the layout.)

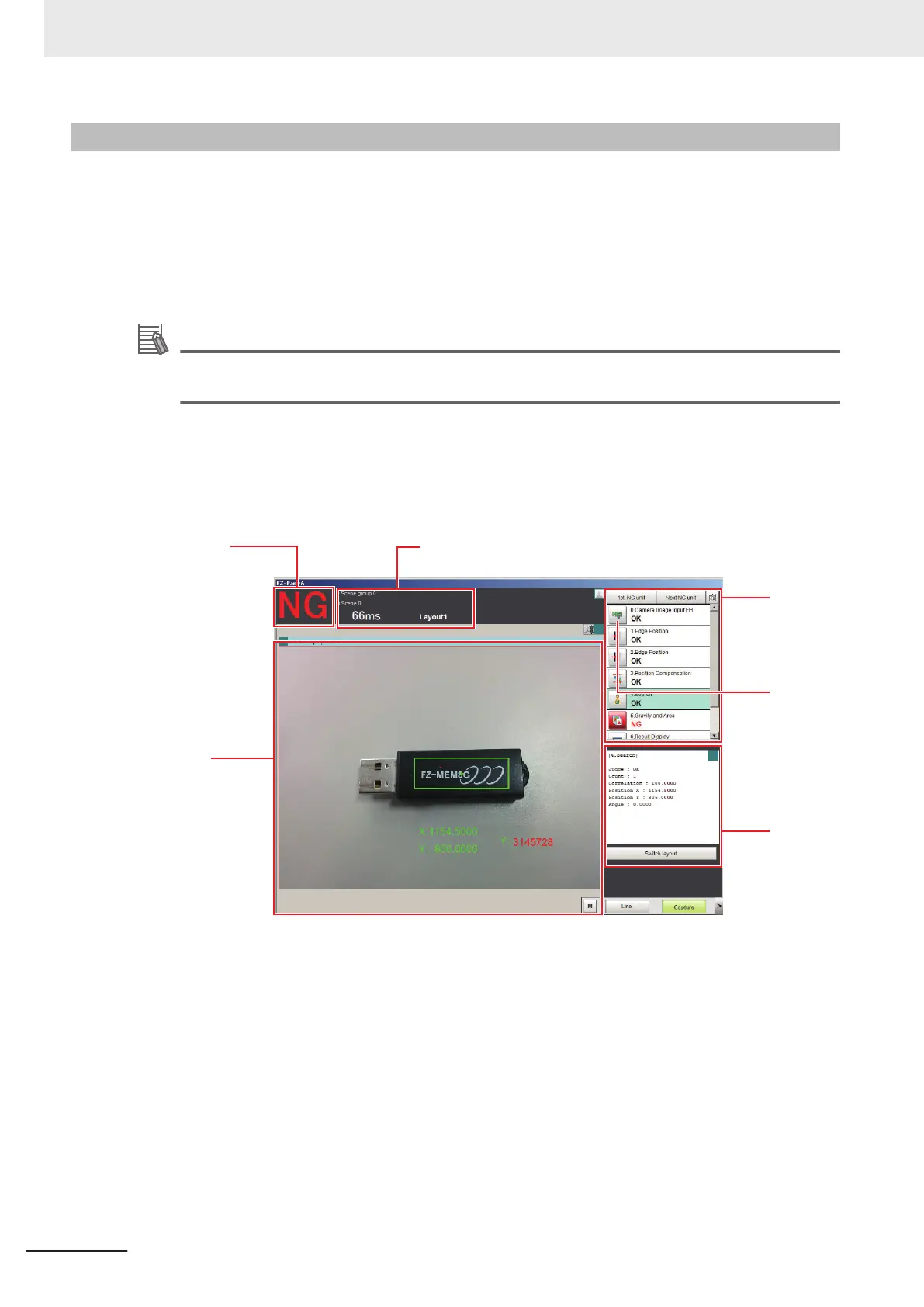

Judgement
Pane
Information Pane
Flow Display
Pane
Detail Result
Pane
Pane
Displays the
Properties
Window.
• Judgement Pane: Refer to 8-3-4 Judgement Pane on page 8 - 24.
• Image Pane: Refer to 8-3-10 Image Container Pane on page 8 - 29.
• Information Pane: Refer to 8-3-5 Information Pane on page 8 - 24.
• Flow Display Pane: Refer to 8-3-8 Flow Display Pane on page 8 - 27.
• Detail Result Pane: Refer to 8-3-9 Detail Result Pane on page 8 - 28.
