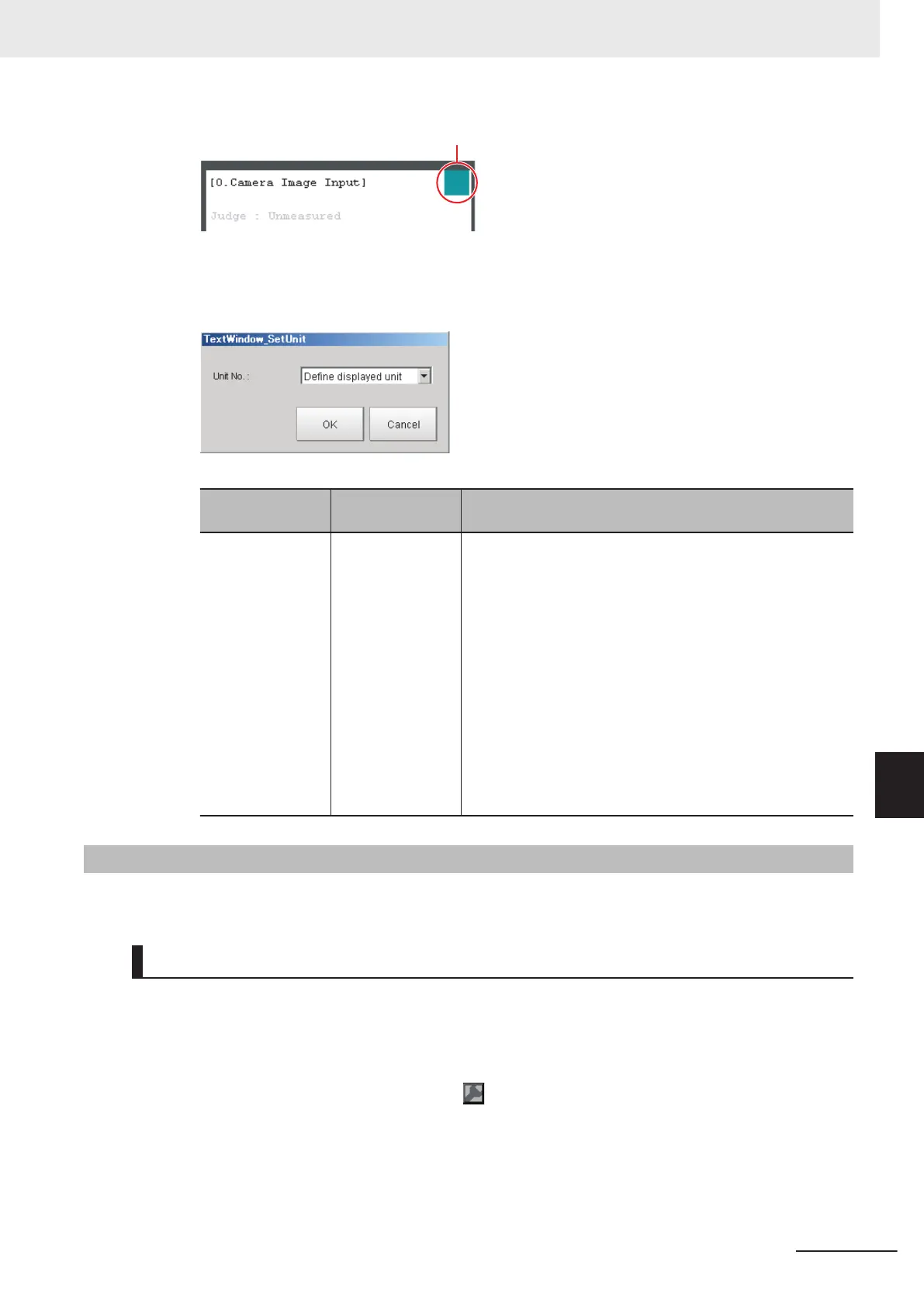

Click the upper right corner.
2 The following dialog box is displayed. Use this to specify the display mode for the Detail Result
Pane.
Item
Setting value
[Factory default]
Description
Unit No.
• [Define dis-
played unit]
• Unit No.
• Define displayed unit:
The detail result for the selected unit on the flow display is
displayed. If the unit selected on the flow display is
changed, detail result shown also changes according to
the setting.
If Flow Display Pane is selected as hidden in Layout modi-
fication settings, the current settings for the Flow Display
Pane are maintained.
• Unit No.:
The detail result of the selected unit is displayed regard-
less of the unit selected on the Flow Display Pane. If Flow
Display Pane is selected as hidden in Layout modification
settings, the current settings for the Flow Display Pane are
maintained.
8-3-10
Image Container Pane
You can add image windows and change the layout of them in Image Container Pane.
Limiting the Number of Image Panes Assignable to Each Layout
When adjusting the number of Image panes to use, a number is assigned to each Image pane. The
number goes up as more Image pane is added.
You can limit the count of Image panes by specifying a range of the assigning numbers.
1 In Layout Modification Mode, click the icon shown on the upper right corner of the Image
Container Pane.
2 A window to specify the range of the number of Image panes appears. Set up as follows.
8 Setting Windows
8 - 29
FH/FHV Series Vision System User’s Manual (Z365-E1)
8-3 Arranging Windows [Layout Functions]
8
8-3-10 Image Container Pane
