Parker EME
Setting up Compax3
192-120114 N5 C3I22T11 June 2008 155
4.2 Configuring the signal Source
In this chapter you can read about:
Select signal source for Gearing ......................................................................................155
4.2.1. Select signal source for Gearing
In this chapter you can read about:
Signal source HEDA.........................................................................................................156
Encoder A/B 5V, step/direction or
SSI feedback as signal source...................................156
+/-10V analog speed setpoint value as signal source
......................................................158
Here the signal source is configured for the motion function ”Gearing” (electronic
gearbox).
Available are:
Gearing input signal source
The HEDA real-time bus (M10 or M11 option) directly from a Compax3 master
axis
an encoder signal A/B 5V
a step/direction signal 5V or
a velocity as analog value +/-10V
HEDA operating mode HEDA as Master
Under signal source gearing "not configured" must be set!
If an existing HEDA option (M10 or M11) is not used as signal source, you can
transmit the following signals for a slave axis via HEDA:
Process - setpoint position (Object 2000.1)
Process - actual position (Object 2200.2)
Position from external setpoint (object 2020.1)
Signal read in via Analog channel0 (X11/9 and X11/11), encoder input or step /
direction input in the master.

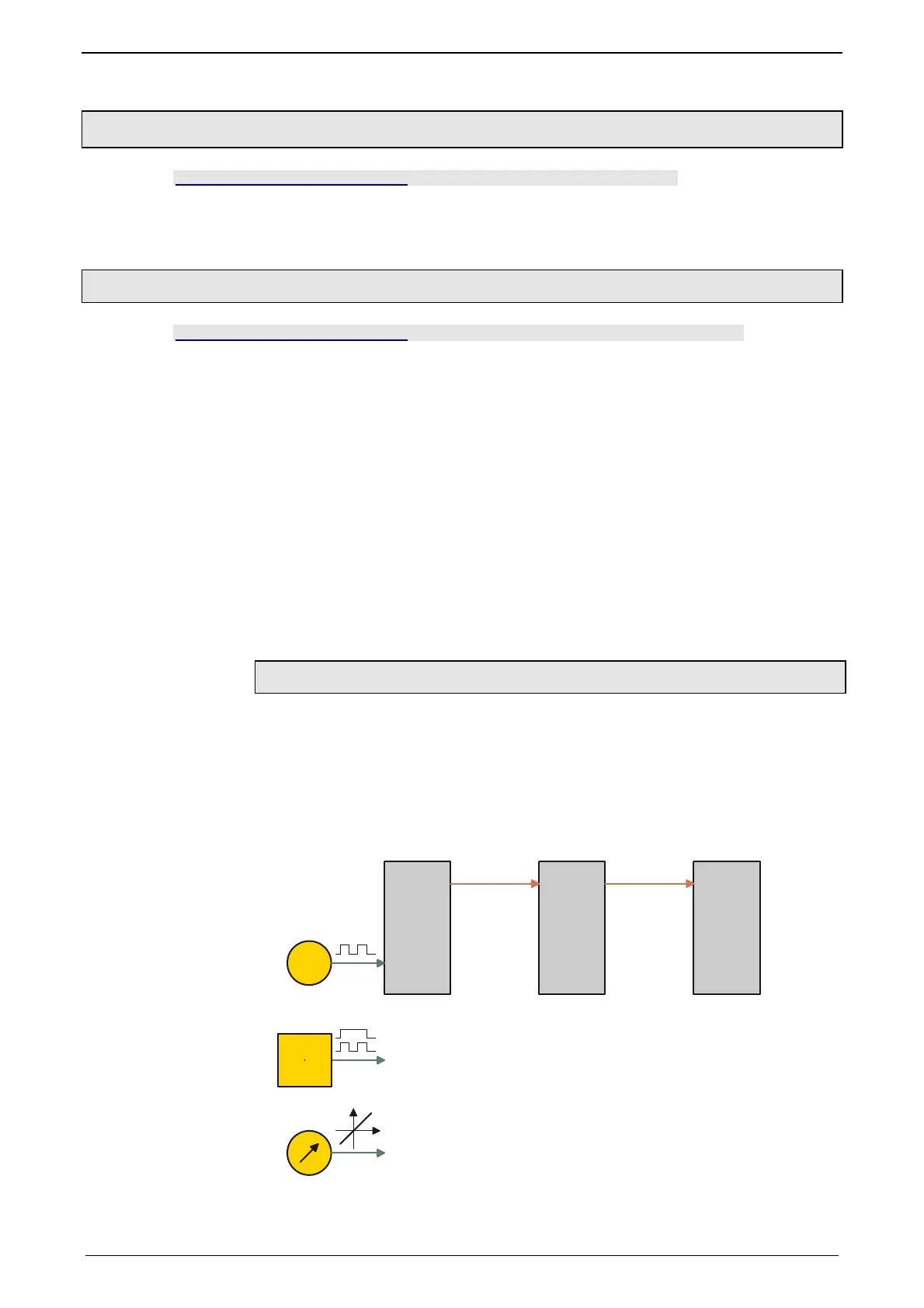

Principle:
HEDA HEDA
Encoder
Master Slave Slave
Step / Direction
+/-10V
Compax3Compax3Compax3
