Parker Compax3 Series User Manual

Compax3 device description C3I22T11
28 192-120114 N5 C3I22T11 June 2008
3.3 Connections of Compax3S
In this chapter you can read about:
Compax3S connectors .......................................................................................................28
Connector and pin assignment C3S...................................................................................29
Control voltage 24VDC / enable connector X4 C3S...........................................................31
Motor / Motor brake (C3S connector X3) ...........................................................................32
C3Sxxx V2..........................................................................................................................33
C3Sxxx V4..........................................................................................................................36

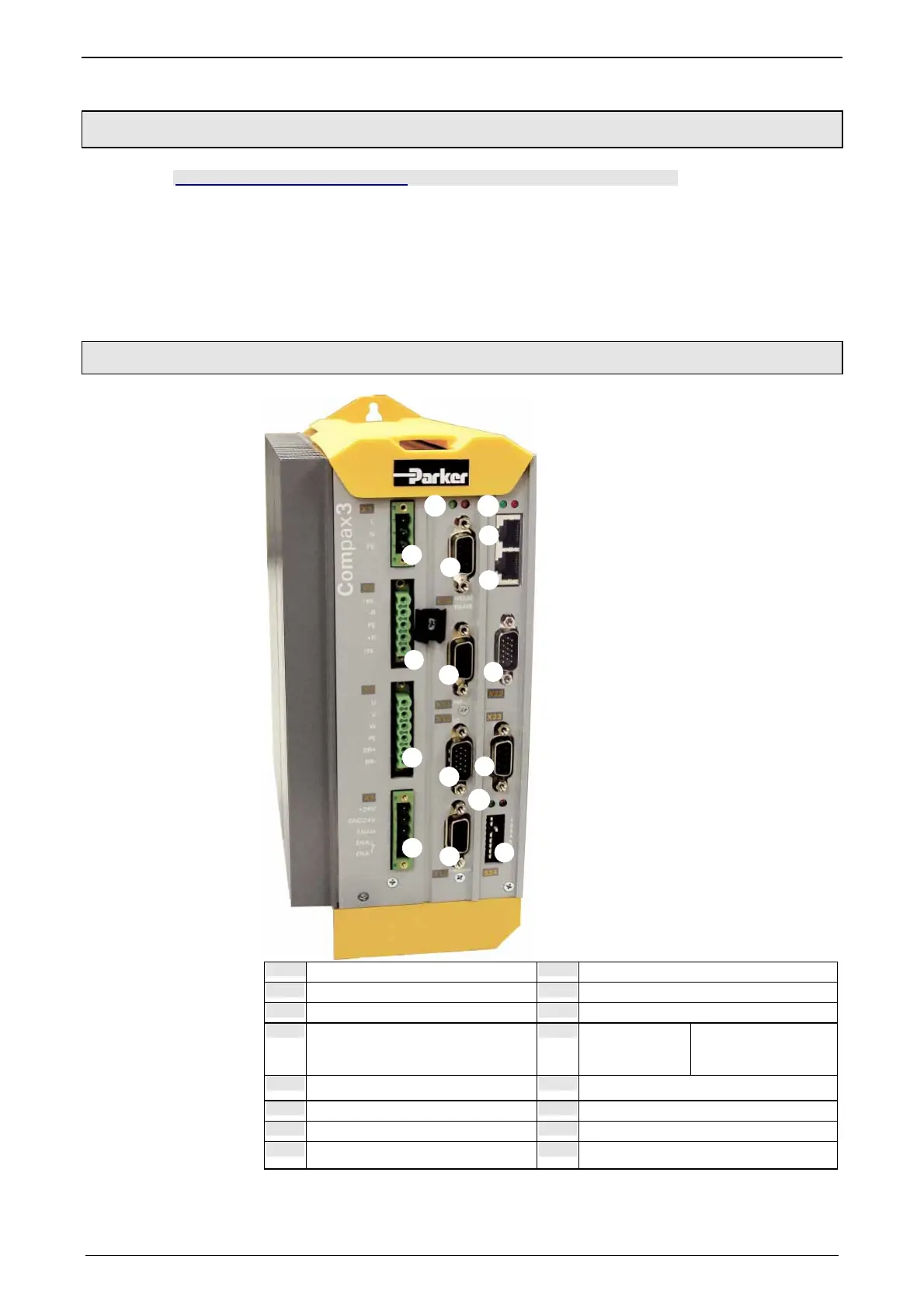

3.3.1. Compax3S connectors
X4
X10
X20
X21
X22
X23
S24
X12
X13
X11
X3
X2
X1
LED3
LED2LED1
X1
AC Supply
X20
HEDA in (Option)
X2
Ballast / DC power voltage
X21
HEDA out (Option)
X3
Motor / Brake
X22
Inputs Outputs (Option M10/12)
X4
24VDC / Enable
X23
Bus (Option)
connector type de-
pends on the bus
system!
X10
RS232/RS485
S24
bus settings
X11
Analog/Encoder
LED1
Device status LEDs
X12
Inputs/Outputs
LED2
HEDA LEDs
X13
Motor position feedback
LED3
Bus LEDs
