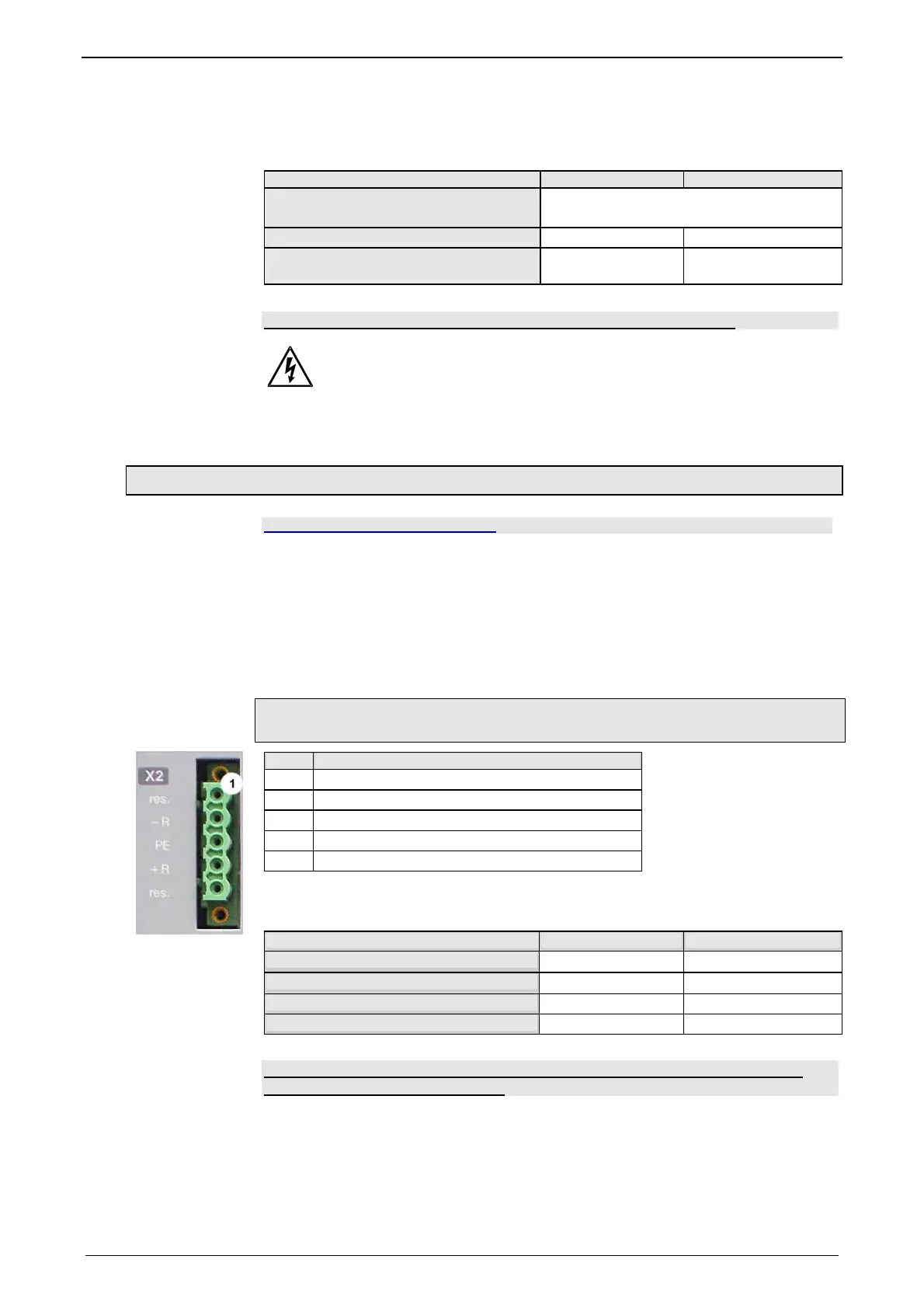

Compax3 device description C3I22T11
34 192-120114 N5 C3I22T11 June 2008
Mains connection Compax3S1xxV2 3AC
Controller type S100V2 S150V2
Supply voltage
Three phase 3* 230VAC/240VAC
80-253 VAC/50-60Hz
Input current
10Aeff 13Aeff
Maximum fuse rating per device
(=short circuit rating)
16 A (MCB miniature
circuit breaker)
20 A (MCB miniature
circuit breaker)
The 3AC V2 – devices must only be operated with three phases!
Always switch devices off before wiring them!
Dangerous voltages are still present until 5 minutes after switching
off the power supply!
3.3.5.2 Braking resistor / high voltage DC C3S connector X2
In this chapter you can read about:
Braking resistor / high voltage supply plug X2 for 1AC 230VAC/240VAC devices............ 34
Braking resistor / high voltage supply plug X2 for
3AC 230VAC/240VAC devices............ 35
Connection of a braking resistor ........................................................................................ 35
The energy generated during braking operation is absorbed by the Compax3 sto-
rage capacity.
If this capacity is too small, the braking energy must be drained via a braking resi-
stor.
Braking resistor / high voltage supply plug X2 for 1AC
230VAC/240VAC devices
PIN Designation
1 Reserved
2 - braking resistor (not short-circuit protected!)
3 PE
4 + braking resistor (not short-circuit protected!)
5 Reserved
Braking operation Compax3S0xxV2 1AC
Controller type S025V2 S063V2
Capacitance / storable energy
560μF / 15Ws 1120μF / 30Ws
Minimum braking- resistance
100Ω 56Ω
Recommended nominal power rating
20 ... 60W 60 ... 180W
Maximum continuous current
8A 15A
The power voltage DC of two Compax3 1AC V2 devices (230VAC/240VAC
devices) must not be connected.
Caution!
Caution!
