Parker Compax3 Series User Manual

Compax3 Accessories C3I22T11
354 192-120114 N5 C3I22T11 June 2008

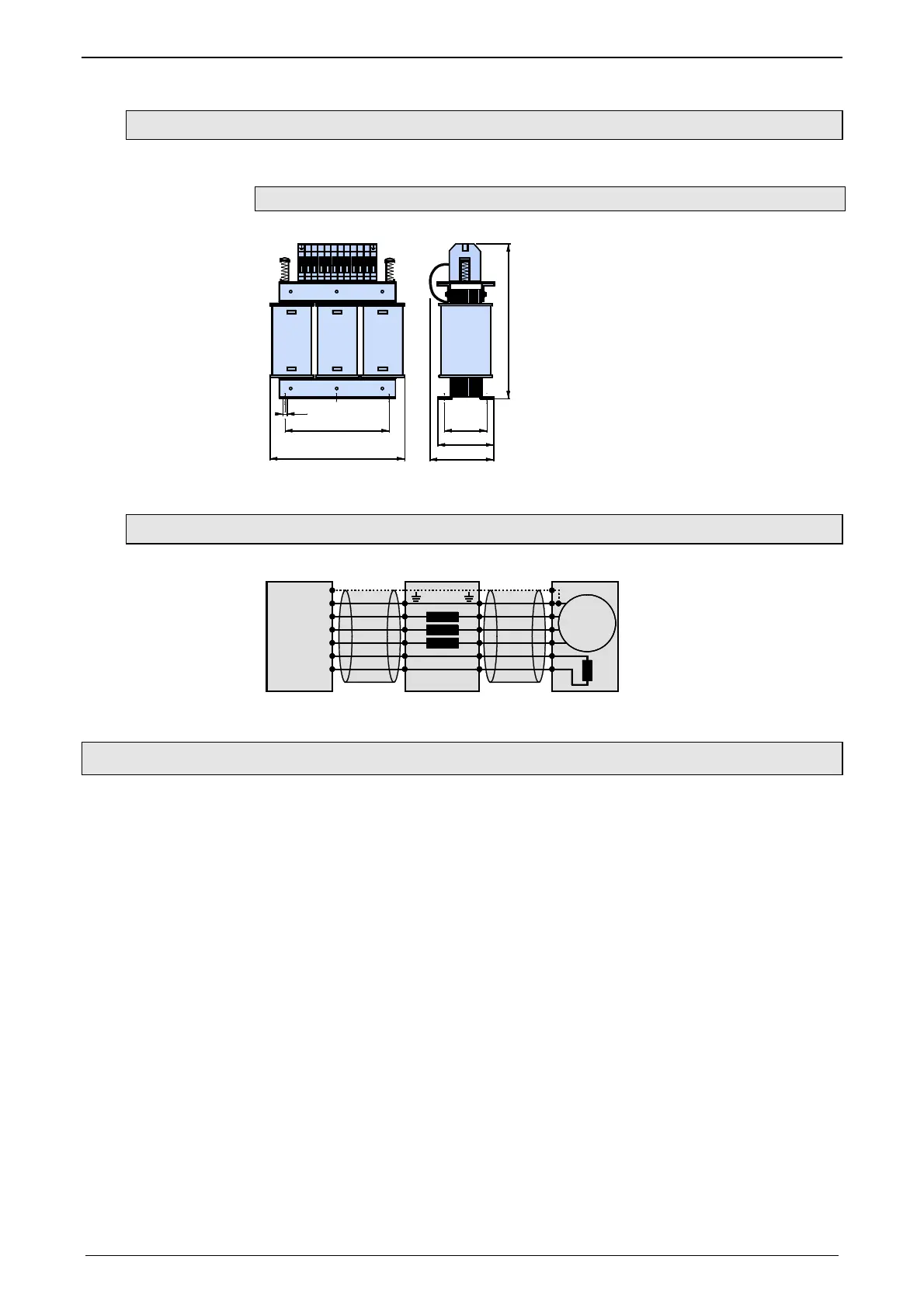

9.2.2.3 Motor output filter MDR01/02
up to 30A nominal motor current (1.1mH)
Dimensional drawing:
180
76
110
6
136
57
1
9
5
U1 V1 W1 + - U2 V2 W2 + -
Weight: 5.8kg
9.2.2.4 Wiring of the motor output filter
M
Motor
MDR
Compax3
PE
PE
U
V
W
Br+
Br-
+
+
-
-
U1
U2
V2
V1
W1
W2
9.2.3. Mains filter
Mains filters serve for reducing the low-frequency interferences on the mains side.
Further information on request.
