Compax3 device description C3I22T11
74 192-120114 N5 C3I22T11 June 2008

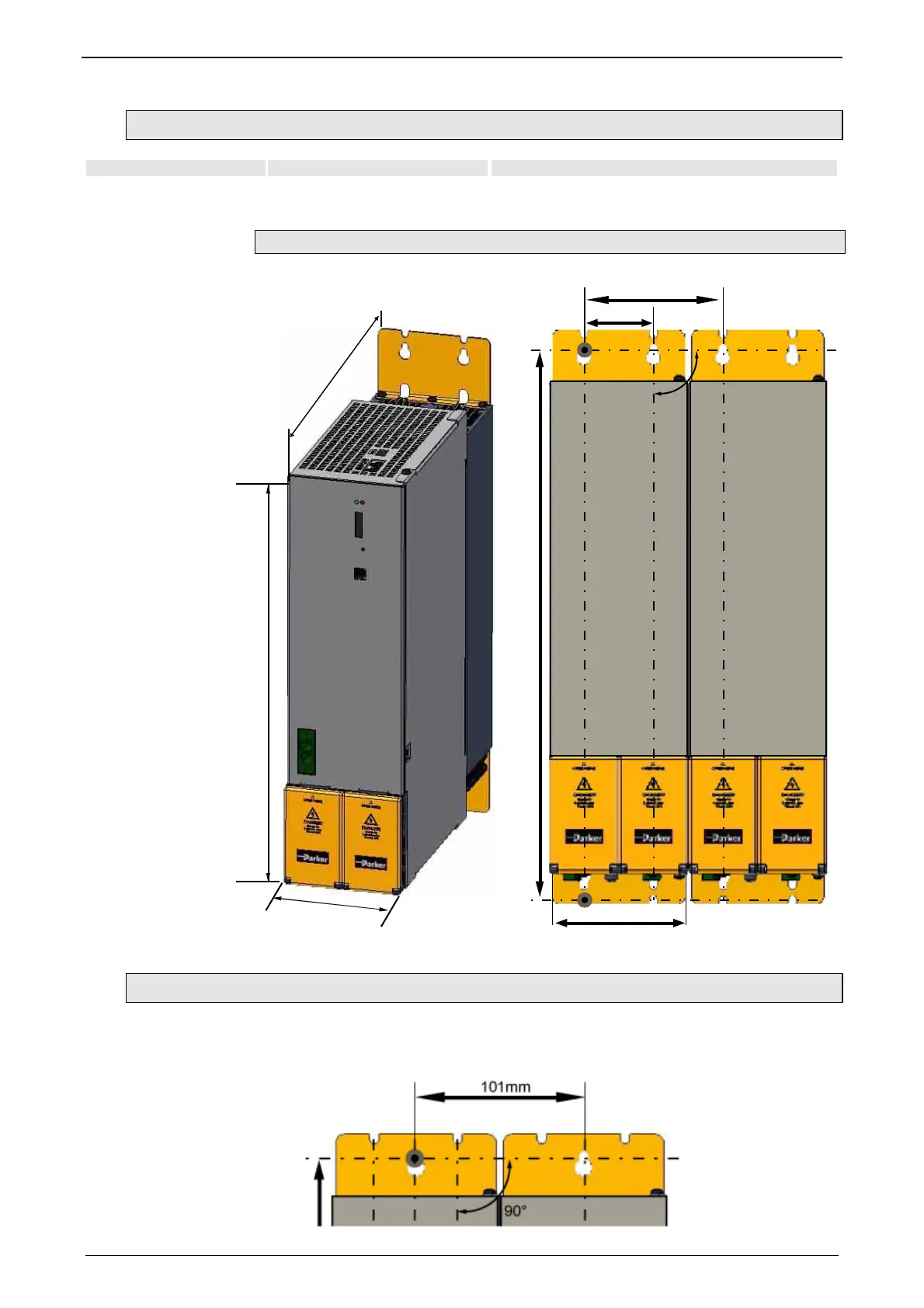

3.9.2.2 Installation and dimensions Compax3MP20/M300
Information on C3MP (mains module)
C3MP20D6
C3M (axis)
C3M300D6
Mounting:
4 socket head screws M5
100mm
360mm
263mm
96mm
4
00mm
90°
50,5mm
101mm
Tolerances: DIN ISO 2768-f
3.9.2.3 With upper mounting, the housing design may be different.
Mounting:
3 socket head screws M5
