Parker EME
Setting up Compax3
192-120114 N5 C3I22T11 June 2008 287

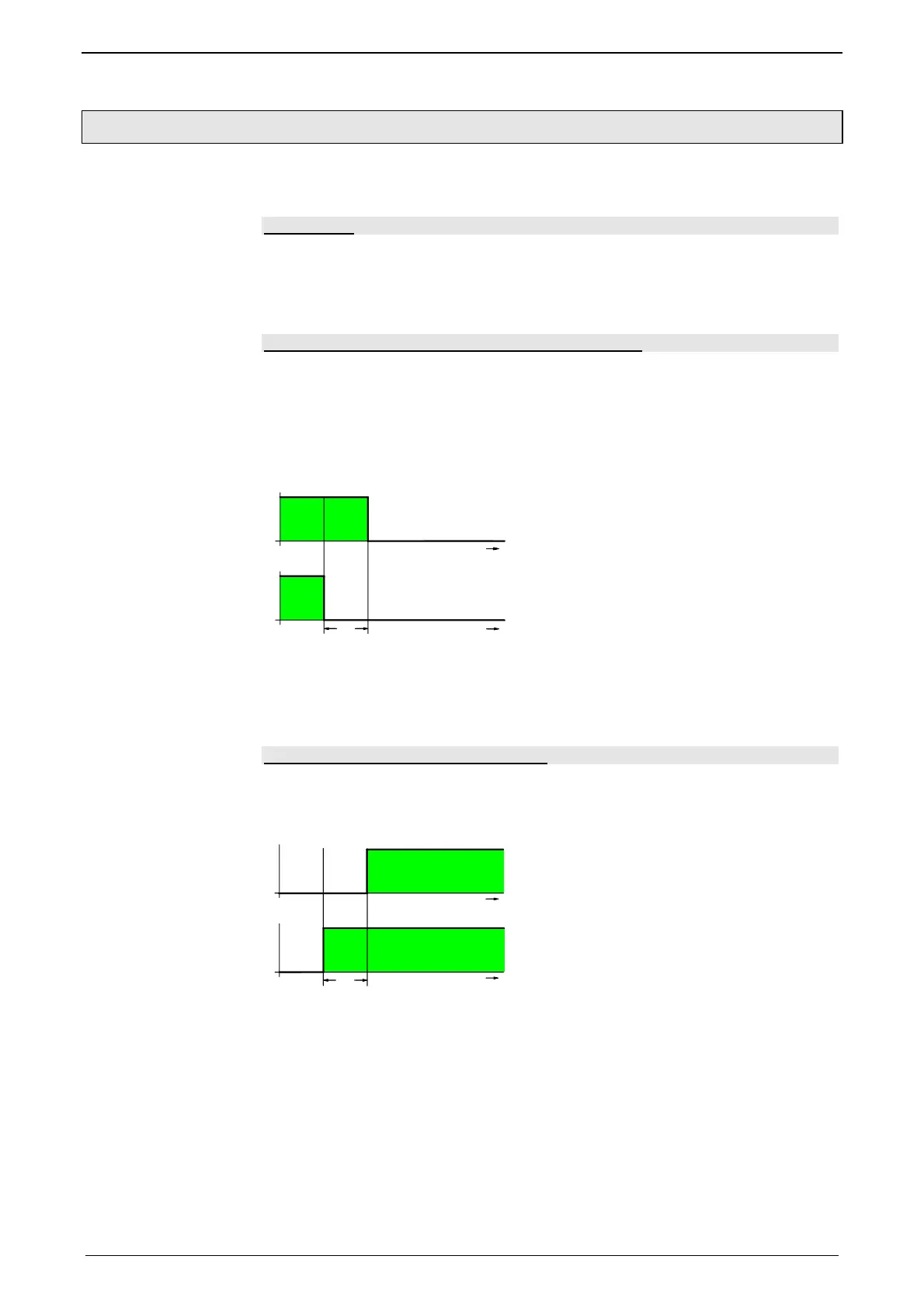

4.3.11. Turning the motor holding brake on and off
Compax3 controls the holding brake of the motor and the power output stage. The
time behavior can be set.
Application:
For an axis to which torque is applied in the stationary state (e.g. for a z-axis) the
drive can be switched on and off in a manner such that no load movement takes
place. The drive thereby remains energized during the holding brake response
time. This is adjustable.
The power output stage current is de-energized by:
Error or
the control word
the ServoManager
Thereafter the motor is braked to zero rotation speed on the set ramp.
When zero speed is reached, the motor is de-energized with the delay "brake clo-
sing delay time".
t
1
t
2
3
4
5
1: Motor powered
2: Motor de-energized
3: Brake open
4: Engage the brake
5: brake closing delay time
The power output stage is enabled by:
Acknowledge (after error) with the control word
the ServoManager
The motor is energized with the delay "delay time for brake release".
t
t
2
1
4
3
5
1: Motor powered
2: Motor de-energized
3: Brake open
4: Engage the brake
5: Delay time for brake release
