Compax3 Accessories
192-120114 N5 C3I22T11 June 2008 361
Additional motor cables for the terminal box with similar layout:
MOK62/.. (max. 47.3A) cable chain compatible with 4x10mm
2
+ 2x1mm
2
MOK61/..: (max. 32.3A) cable chain compatible with 4x6mm
2
+ 2x1mm
2
MOK60/.. (max. 13.8A) standard with 6x1,5mm
2
MOK63/.. (max. 13.8A) cable chain compatible with 6x1.5mm
2
MOK64/.. (max. 18.9A) cable chain compatible with 6x2.5mm
2
The designations of the conductors varies according to the cable type:
U U1 sw1 black
V V2 sw2 Brown
W W3 sw3 blue
BR+ BR1 sw4 red
BR- BR2 sw5 green
You will find the length code in the accessories order code (see page 342).

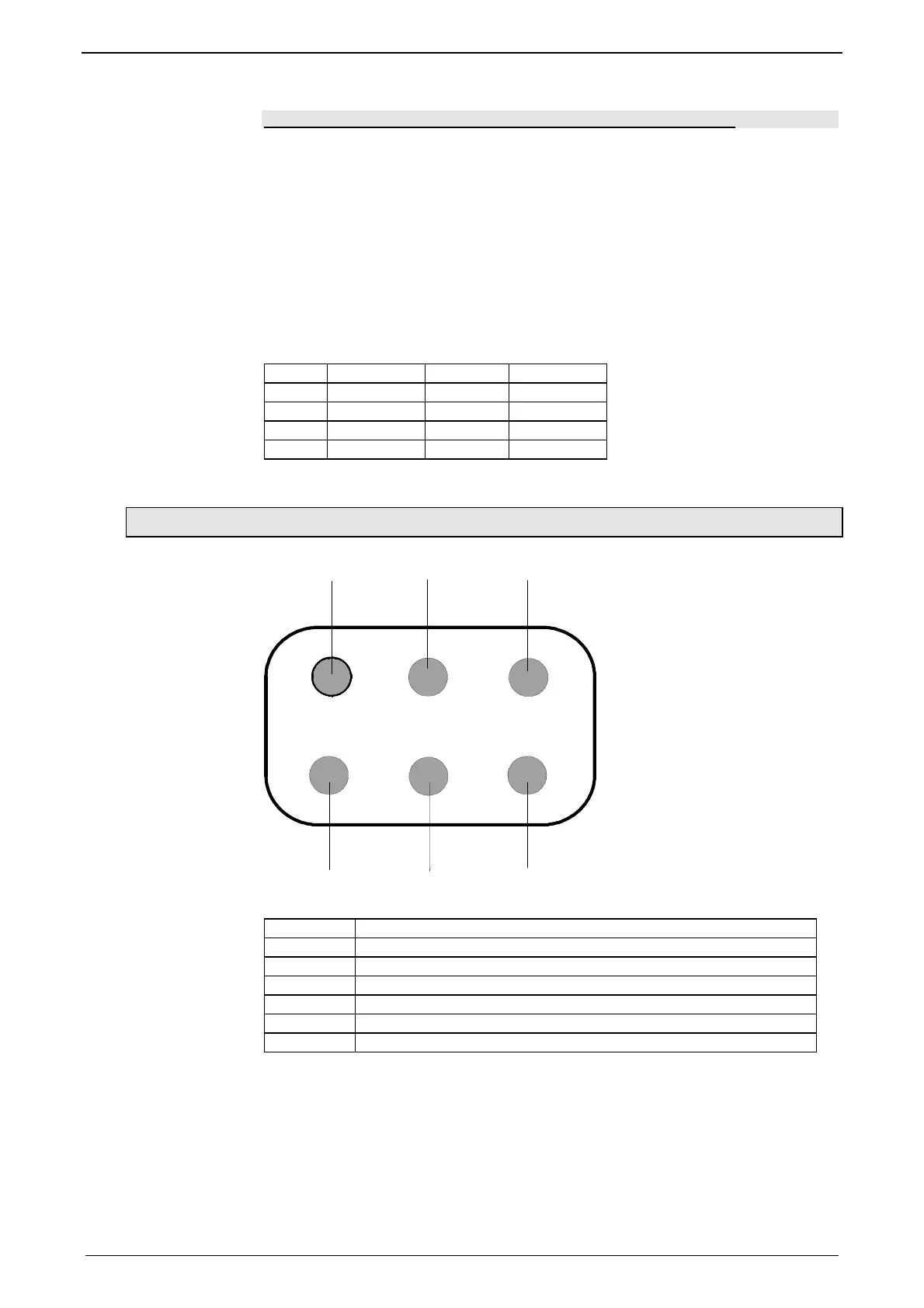

9.3.6.1 Connection of terminal box MH145 & MH205
A
BC
G
EF
Terminal Assignment
A Phase U
B Phase V
C Phase W
E PE
F Brake (+ red for MH205)
G Brake (- blue for MH205)
Additional designations can be found on the connection cable clamping board -
motor (interal).
Designation of the
conductors
