Limit and Monitoring Settings
On the "limit and monitoring settings" wizard page, you can set among others the
current and velocity limits in % of the nominal values. The nominal values are mo-
tor parameters resulting from the motor library or from shifting the reference point
on the "motor reference point" wizard page.

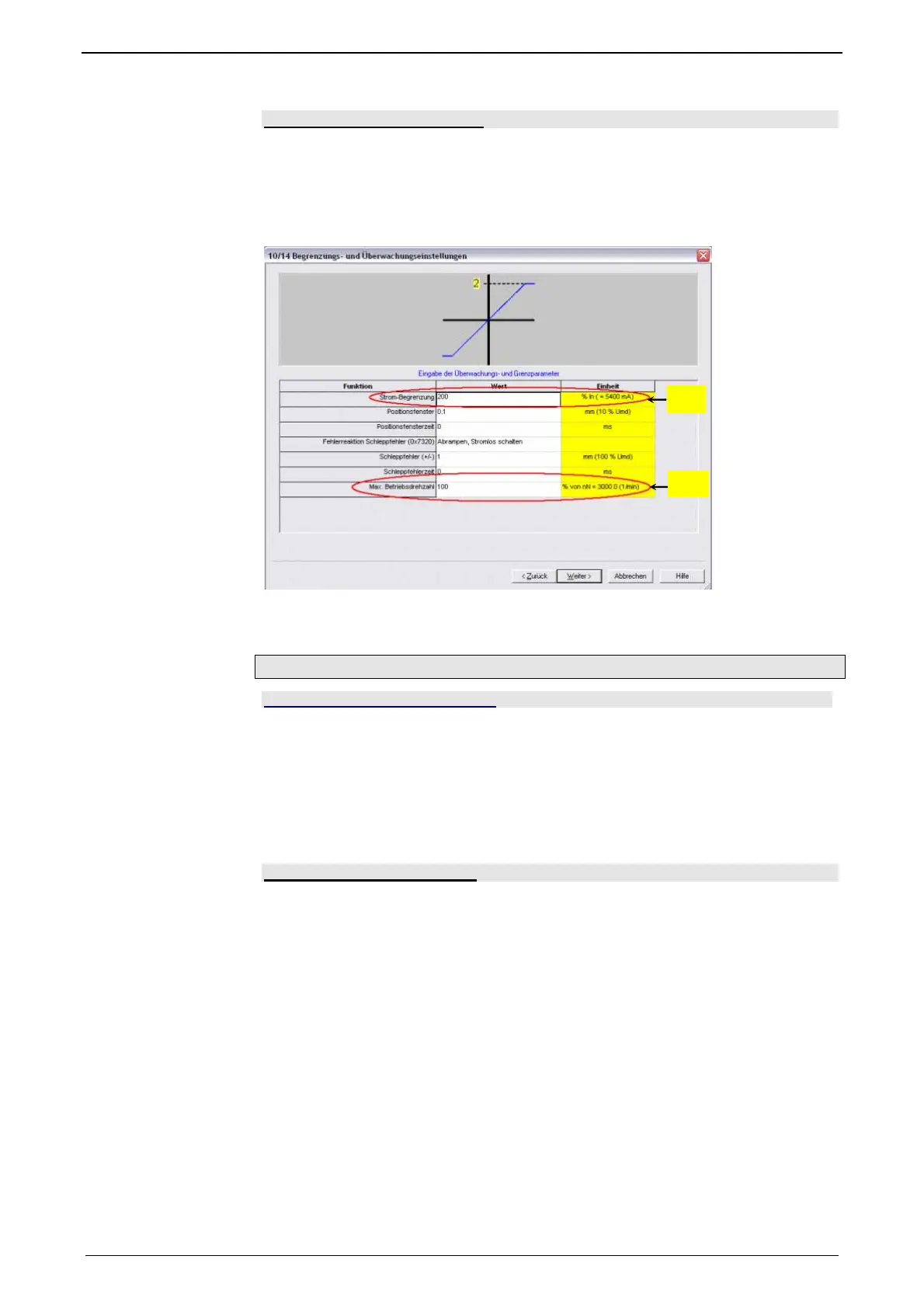

Limit and Monitoring Settings wizard page:
1
2
1: Current (Torque) Limit
2: Velocity limit
Asynchronous motors
In this chapter you can read about:
Type specification plate data ........................................................................................... 187
Replacement switching diagram -
data for a phase......................................................... 188
Slip Frequency................................................................................................................. 188
Saturation behav
ior.......................................................................................................... 189
Cut-off frequency for the field w
eakening range.............................................................. 189
Rotor time const
ant.......................................................................................................... 190
Determination of the commutation
settings ..................................................................... 190
Asynchronous motors: Extension of the controller structure ........................................... 190
Type specification plate data
On the 2nd. wizard page of the Compax3 MotorManager, the type specification
plate data must be entered.
