3.9 Installation and dimensions Compax3
In this chapter you can read about:
Mounting and dimensions Compax3S................................................................................69
Mounting and dimensions C3MP/C3M...............................................................................73
Mounting and dimensions C3H ..........................................................................................75
3.9.1. Mounting and dimensions Compax3S
In this chapter you can read about:
Mounting and dimensions Compax3S0xxV2......................................................................69
Monting and dimensions Compax3S100V2 and S0
xxV4...................................................70
Monting and dimensions Compax3S150V2 and S1
50V4 ..................................................71
Mounting and dimensions Compax3S300V4 .....................................................................72

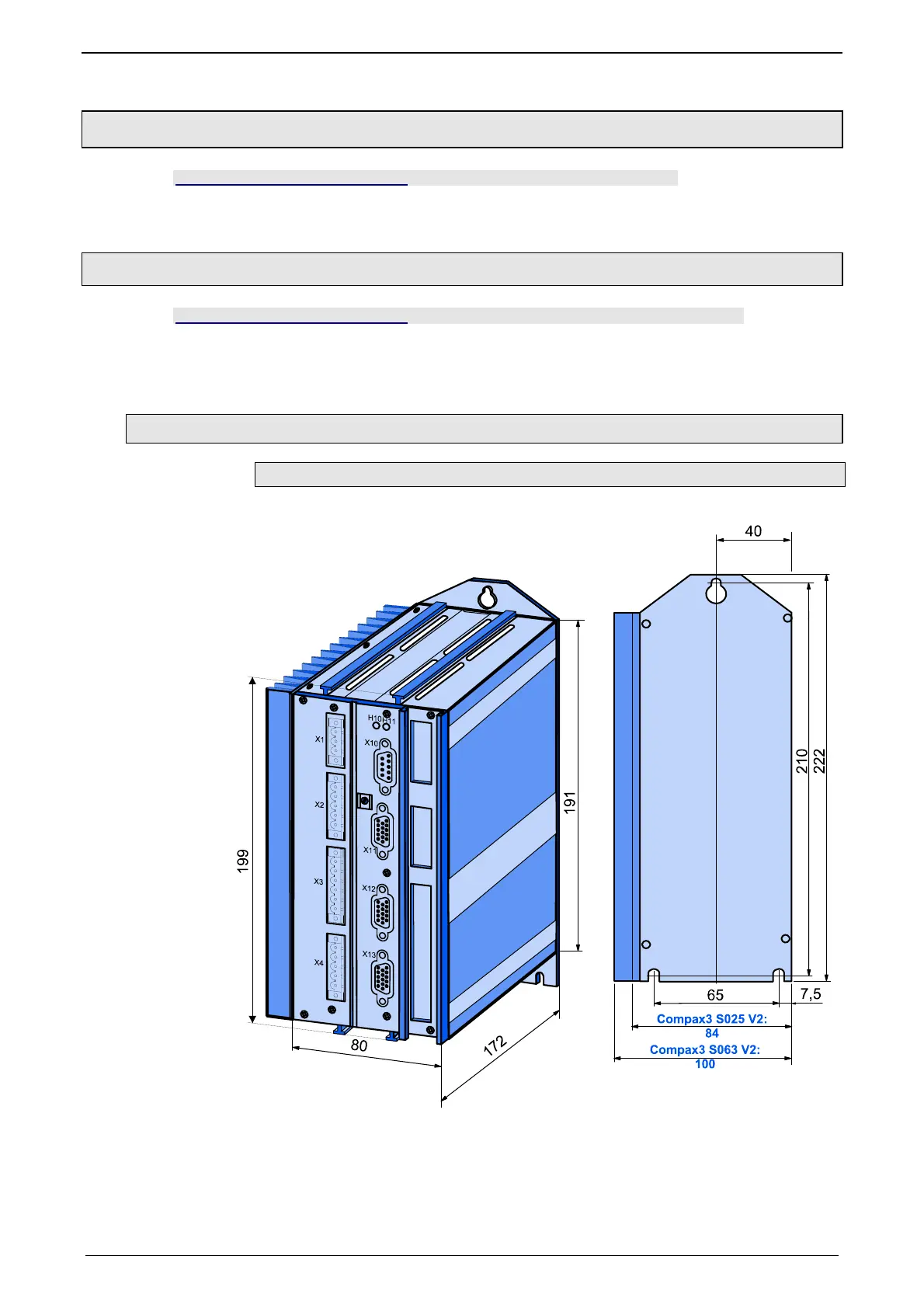

3.9.1.1 Mounting and dimensions Compax3S0xxV2
Mounting:
3 socket head screws M5
Please respect an appropriate mounting gap in order to ensure sufficient convec-
tion:
At the side: 15mm
At the top and below: at least 100mm
