Compax3 device description C3I22T11
56 192-120114 N5 C3I22T11 June 2008

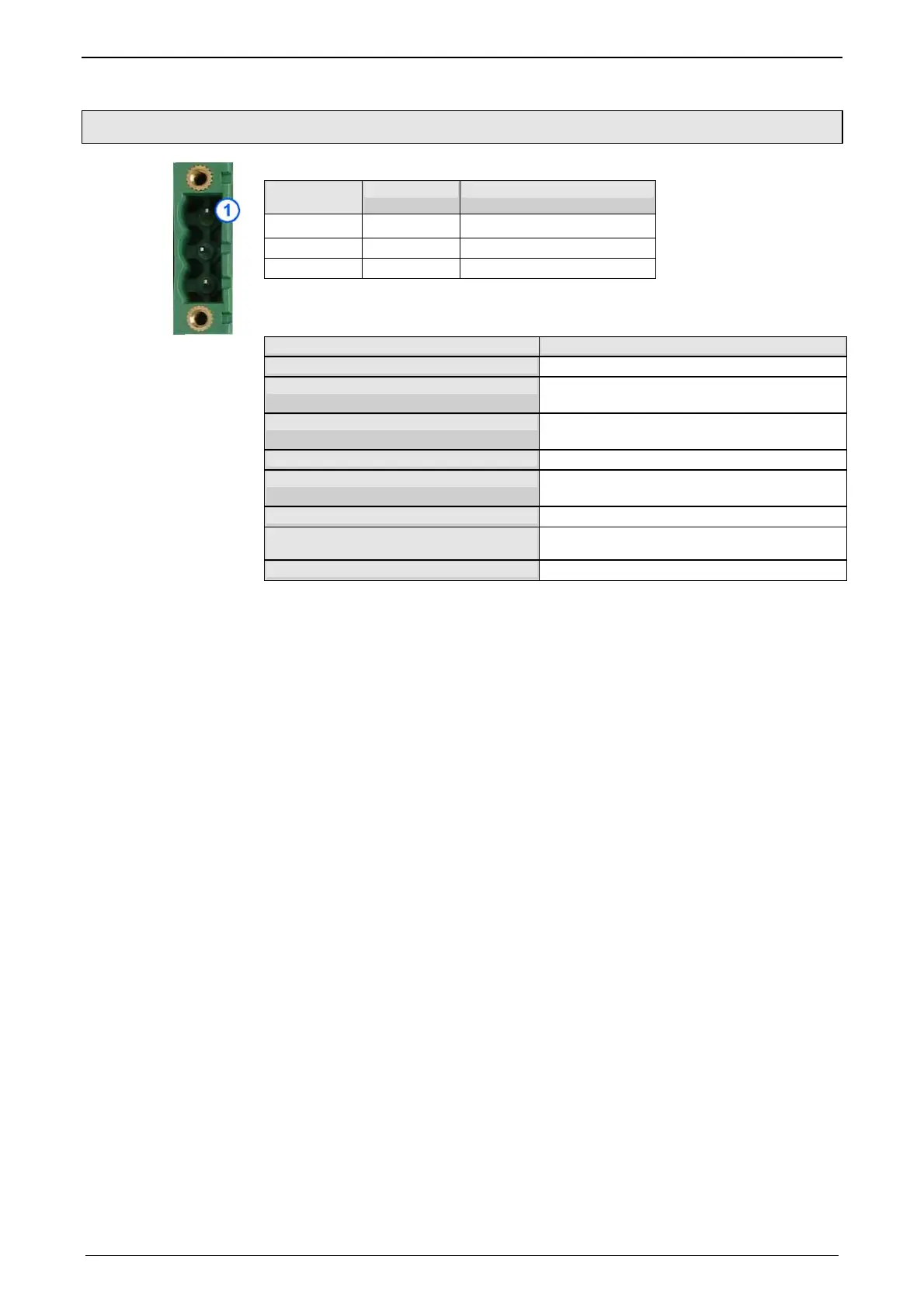

3.6.5. Control voltage 24 VDC C3H
Connector
X4 Pin
Description
1 NC NC
2 Gnd 24 V GND
3 +24V 24 VDC (power supply)
Control voltage 24VDC Compax3S and Compax3H
Controller type Compax3
Voltage range
21 - 27VDC
Mains module
with switch-on current limitation, due to capaci-
tive load
Fuse
MCB miniature circuit breaker or "delayed ac-
tion fuse", due to capacitive load
Current drain of the device
0.8A
Total current drain
0.8 A + Total load of the digital outputs + cur-
rent for the motor holding brake
Ripple
0.5Vpp
Requirement according to safe extra
low voltage (SELV)
yes
Short-circuit proof
conditional (internally protected with 3.15AT)
