Compax3 device description C3I22T11
36 192-120114 N5 C3I22T11 June 2008
3.3.6. C3Sxxx V4
In this chapter you can read about:
Power supply connector X1 for 3AC 400VAC/480VAC-C3S devices ................................36
Braking resistor / high voltage supply connector X2
for 3AC 400VAC/480VAC_C3S devices
............................................................................................................................................37
Connection of the power voltage of 2 C3S 3AC devices....................................................38

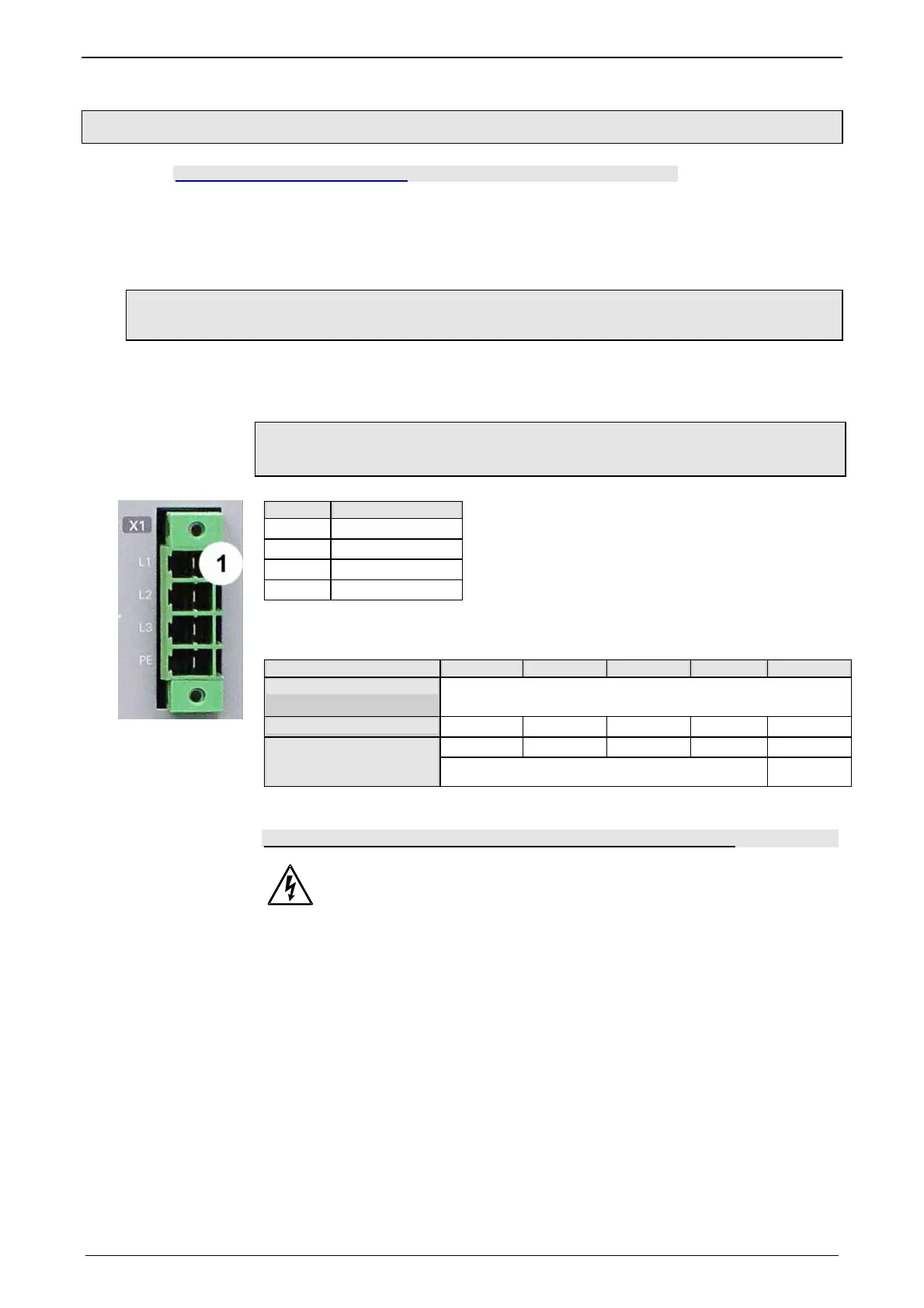

3.3.6.1 Power supply connector X1 for 3AC 400VAC/480VAC-C3S
devices
By cyclically switching on and off the power voltage, the input current limita-
tion can be overloaded, which will cause a device error.
Therefore please wait at least 2 minutes after switching off before you switch
the device on again!
PIN Designation
1 L1
2 L2
3 L3
4 PE
Mains connection Compax3SxxxV4 3AC
Controller type S015V4 S038V4 S075V4 S150V4 S300V4
Supply voltage
Three phase 3*400VAC/480VAC
80-528VAC / 50-60Hz
Input current
3Aeff 6Aeff 10Aeff 16Aeff 22Aeff
6A 10A 16A 20A 25A
Maximum fuse rating per
device(=short circuit
rating)
MCB miniature circuit breaker D*
* for UL conform operation (see page 19): MCB miniature circuit breaker S273-K.
The 3AC V4 – devices must only be operated with three phases!
Always switch devices off before wiring them!
Dangerous voltages are still present until 5 minutes after switching
off the power supply!
Device protection
Caution!
