Communication
192-120114 N5 C3I22T11 June 2008 305
5.3 Remote diagnosis via Modem
In this chapter you can read about:
Structure...........................................................................................................................305
Configuration of local modem 1........................................................................................306
Configuration of r
emote modem 2....................................................................................307
Recommendations for preparing t
he modem operation ...................................................308
As the transmission via modem may be very slow and interference-prone, the
operation of the Compax3 ServoManager via modem connection is on your
own risk!
The function setup mode as well as the ROLL mode of the oscilloscope are
not available for remote diagnosis!
It is not recommended to use the logic analyzer in the Compax3 IEC61131-3
debugger due to the limited bandwidth.
Requirements:
For modem operation, a direct and stable telephone connection is required.
Operation via a company-internal telephone system is not recommended.
5.3.1. Structure

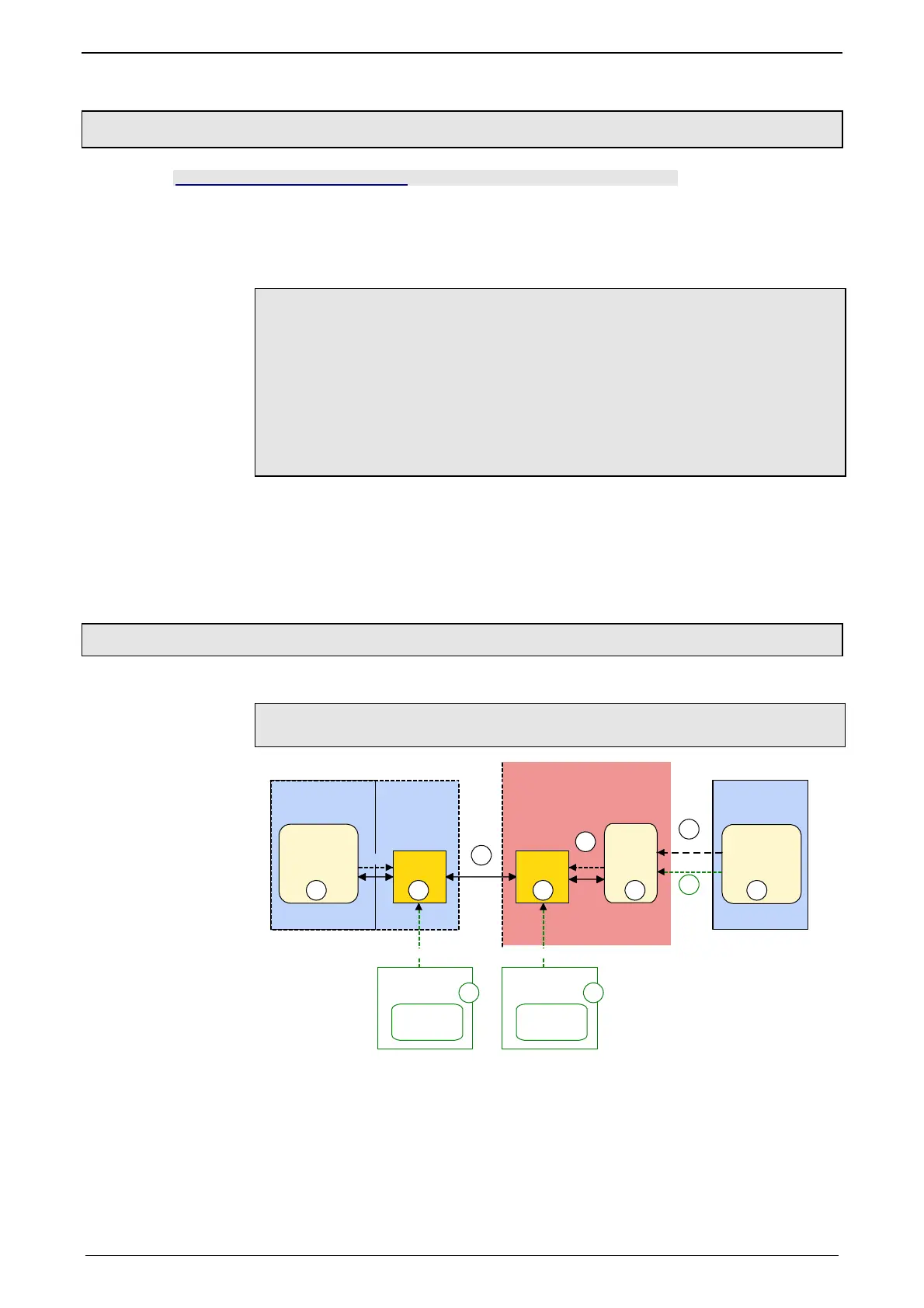

Layout and configuration of a modem connection ServoManager -
Compax3:
PC
Compax3
ServoManager
Modem 1
konfig
Modem 2
Compax3
X10
SSK31
Phone
konfig
PC
Compax3
ServoManager
konfig
machine
konfig
PC
Hyper-
terminal
Release < R4-5
(115200Baud)
ATE0 cr
ATQ1 cr
1 4
7
2
5
8
3
6
9
Release
> R5-0
Release
> R4-5
< R5-0
konfig
11
konfig
Compax3.ini
Release < R5-0
10
Caution!
