Parker EME
Compax3 device description
192-120114 N5 C3I22T11 June 2008 37

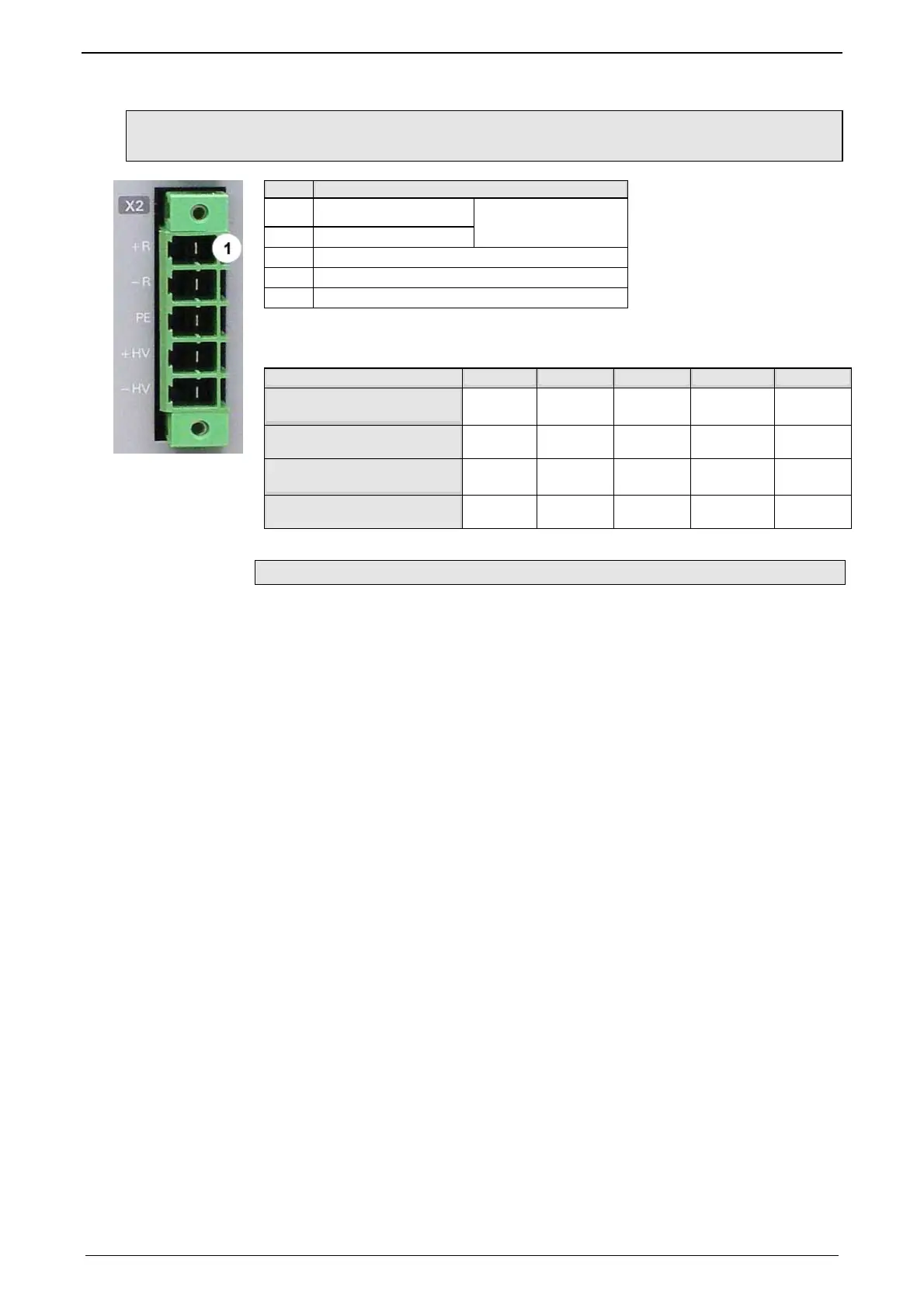

3.3.6.2 Braking resistor / high voltage supply connector X2 for 3AC
400VAC/480VAC_C3S devices
PIN Description
1 + Braking resistor
2 - Braking resistor
no short-circuit protec-
tion!
3 PE
4 + DC high voltage supply
5 - DC high voltage supply
Braking operation Compax3SxxxV4 3AC
Controller type S015V4 S038V4 S075V4 S150V4 S300V4
Capacitance / storable
energy
235μF /
37Ws
235μF /
37Ws
470μF /
75Ws
690μF /
110Ws
1100μF /
176Ws
Minimum braking- resistan-
ce
100Ω 100Ω 56Ω 33Ω 15Ω
Recommended nominal
power rating
60 ...
100W
60 ...
250W
60 ... 500
W
60 ... 1000
W
60 ... 1000
W
Maximum continuous cur-
rent
10A 10A 15A 20A 30A
Connection of a braking resistor
Mimimum line cross section: 1.5mm
2
Maximum line length: 2m
Maximum output voltage: 800VDC
