Compax3 Accessories C3I22T11
376 192-120114 N5 C3I22T11 June 2008

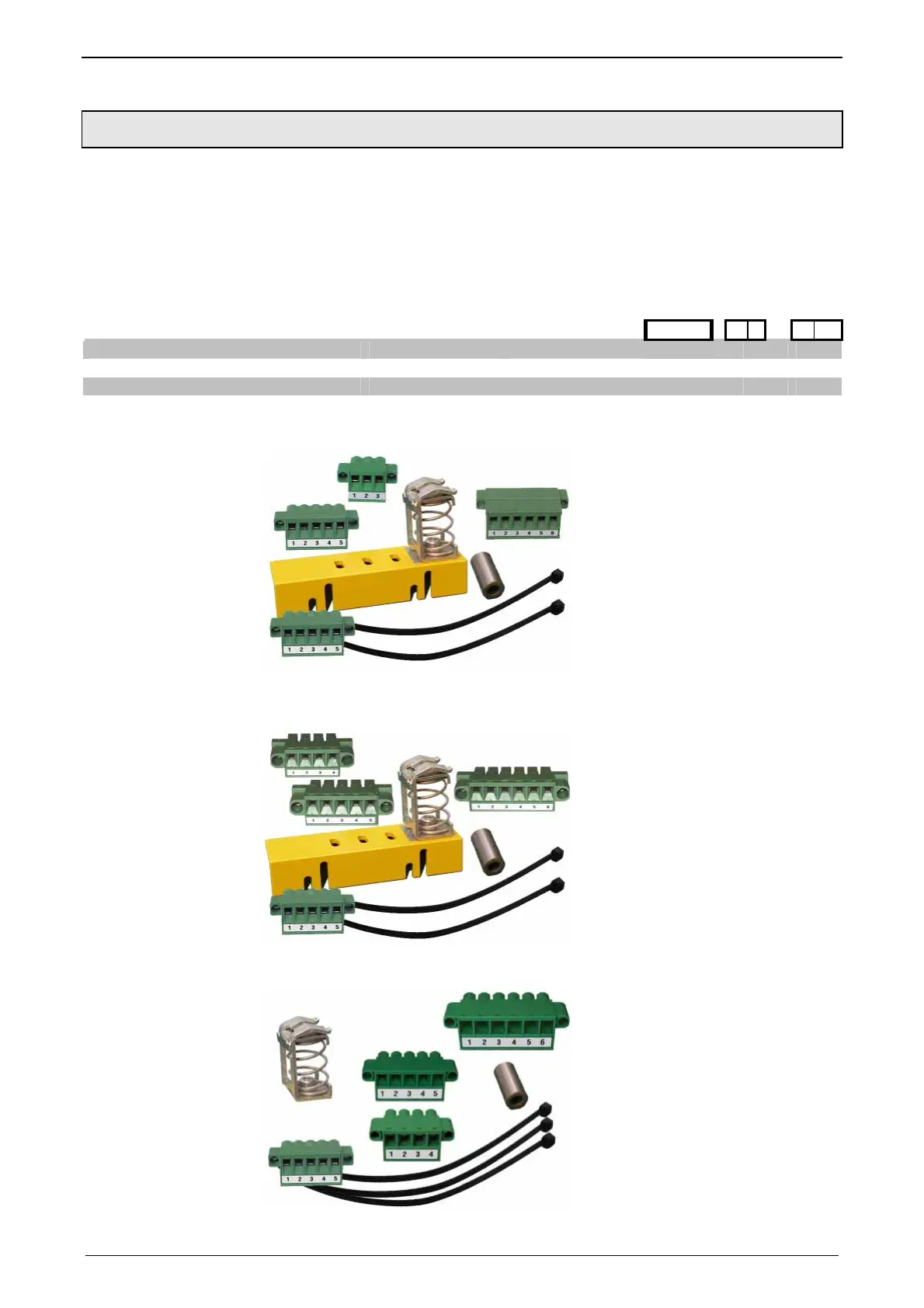

9.5 Connection set for Compax3S
The connection set which is available as accessory comprises:
 a shield terminal with large contact area for the motor cable shield, and
 the mating plug connectors for the Compax3 plug connectors X1, X2, X3, and X4
 a toroidal core ferrite for a cable of the motor holding brake
 Lacing cord
Order Code connection set for Compax3S
/
for C3S0xxV2 ZBH 02/01
ZBH 0 2 / 0 1
for C3S0xxV4 / S150V4 / S1xxV2 ZBH 02/02
ZBH 0 2 / 0 2
for C3S300V4 ZBH 02/03
ZBH 0 2 / 0 3
ZBH02/01: for Compax3 S0xx 1AC V2
ZBH02/02: for Compax3 S0xx 3AC V4, Compax3 S150 3AC V4 and Compax3
S1xx 3AC V2
ZBH02/03: for Compax3 S300 3AC V4
