Parker Compax3 Series User Manual

Compax3 Accessories C3I22T11
388 192-120114 N5 C3I22T11 June 2008

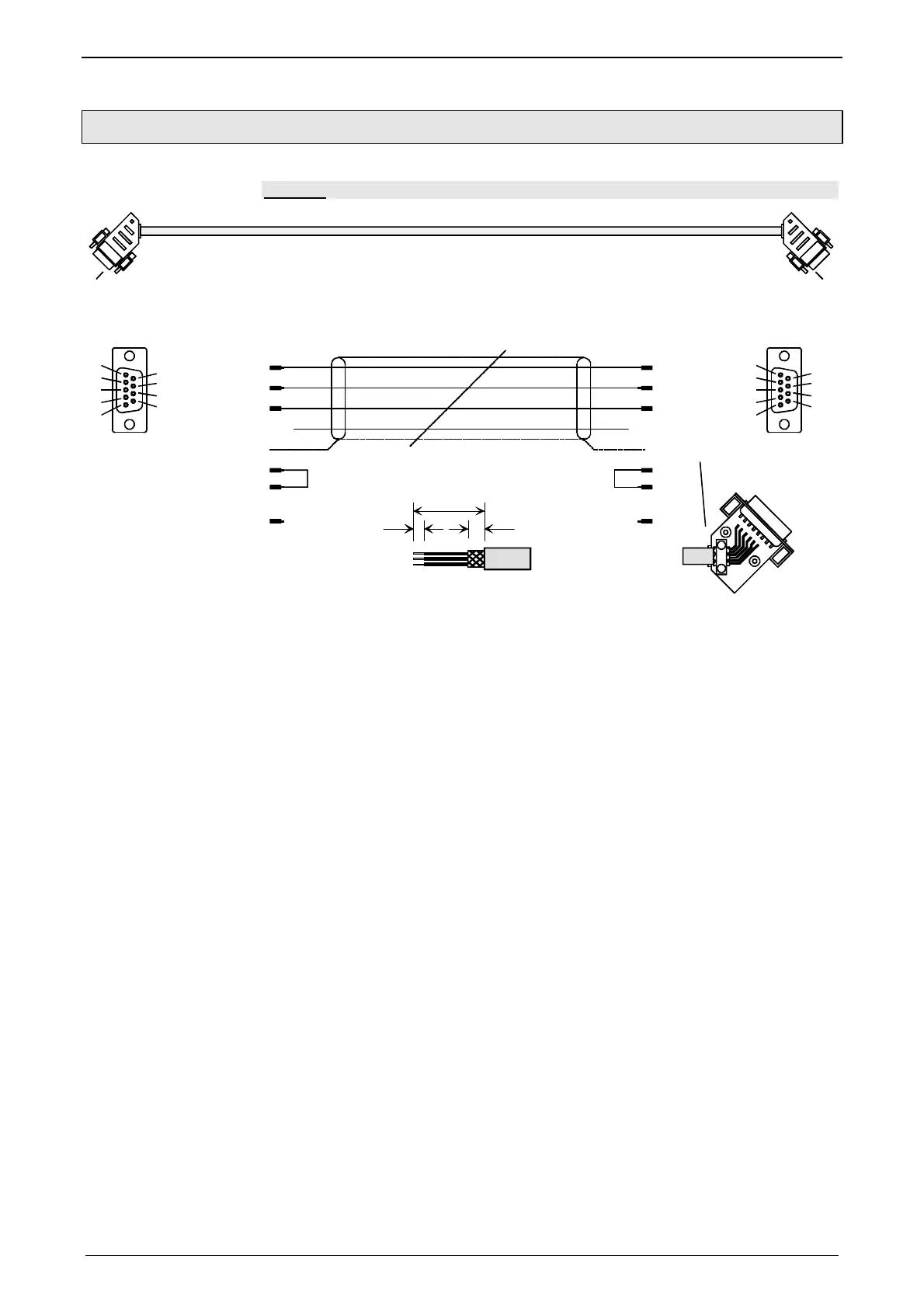

9.9.6. Modem cable SSK31
SSK31/..
Schirm großflächig auf Gehäuse legen
Place sheath over large area of housing
RxD
Pin 1
Modem
WH
GN
YE
BN
Compax3 (X10)
Schirm großflächig auf Gehäuse legen
Place sheath over large area of housing
Pin 1
TxD
GND
5
2
Lötseite
solder side
1
2
3
4
5
6
7
8
9
4mm 6mm
26 mm
5
2
3
RxD
TxD
GND
4
NC
1,6,7,9
3
WH
GN
YE
BN
NC
1,6,7,9
8
brücken (Litze 0,25)
connect (wire 0,25)
4
8
Lötseite
solder side
1
2
3
4
5
6
7
8
9
brücken (Litze 0,25)
connect (wire 0,25)
You will find the length code in the
accessories order code (see page 342).
