Parker EME
Compax3 device description
192-120114 N5 C3I22T11 June 2008 43

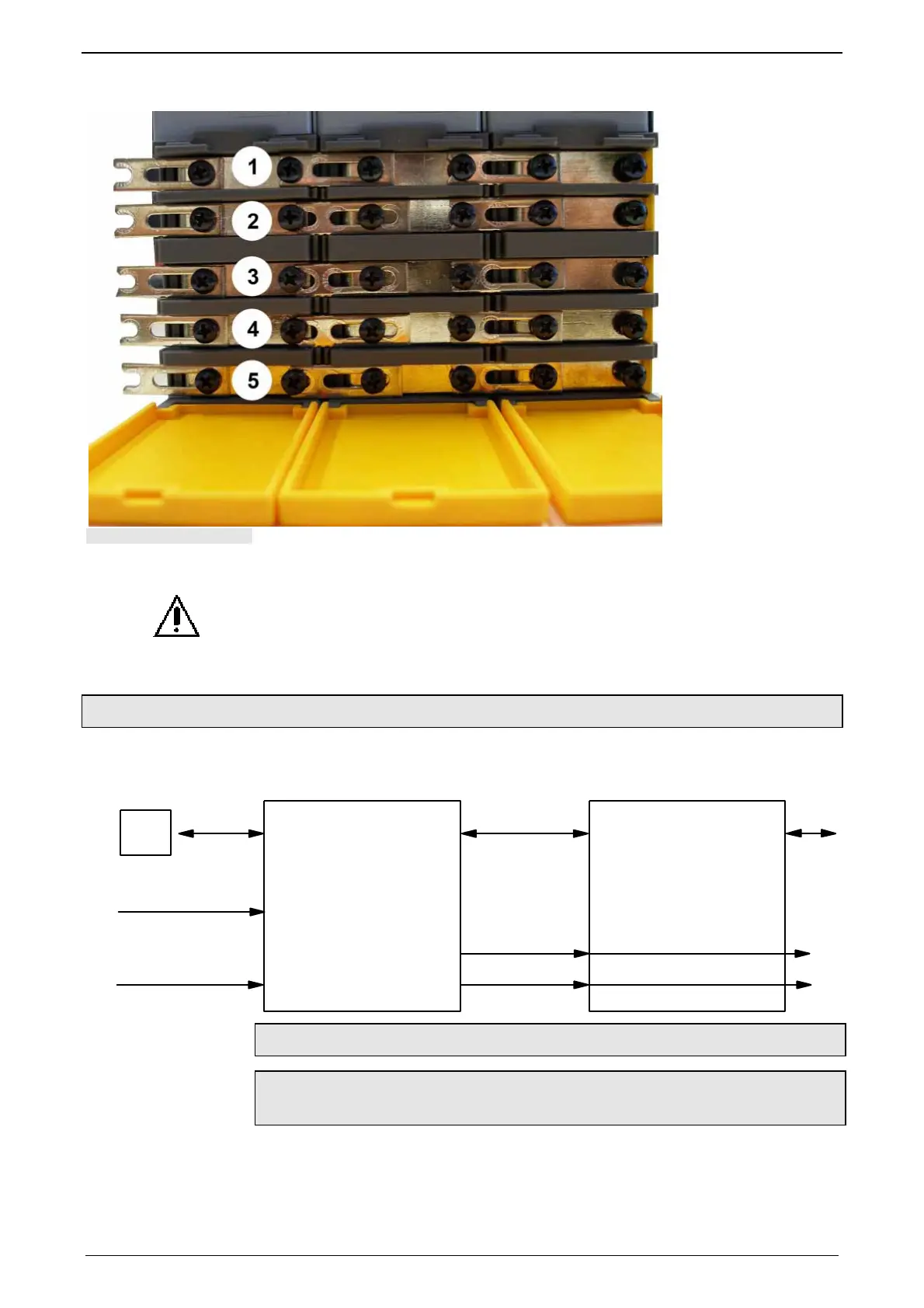

1 24VDC
2 Gnd 24 V
3 -HV DC
4 PE
5 +HV DC
Note:
External components may not be connected to the rail system.
Protective covers
The user is responsible for protective covers and/or additional safety measures in order to
prevent damages to persons and electric accidents.
3.5.4. Connector and pin assignment
X30 outin X31
SSK28
Highvoltage DC-Bus
24VDC-Supply
Compax3
DC - Versorgung
DC - Supply
AC - Versorgung
AC - Supply
X41
X9 (24VDC)
USB
SSK33
out X30
Compax3MP
PC
Maximum no. of C3M axes in a combination: 15 axes (max. 2400µF)
Further information on the assignment of the plug mounted at the particular
device can be found below!
Overview:
