4.3.10. ProfileViewer for the optimization of the motion profile
In this chapter you can read about:
Mode 1: Time and maximum values are deduced from Compax3 input values..............285
Mode 2: Compax3 input values are deduced from
times and maximum values ..............286

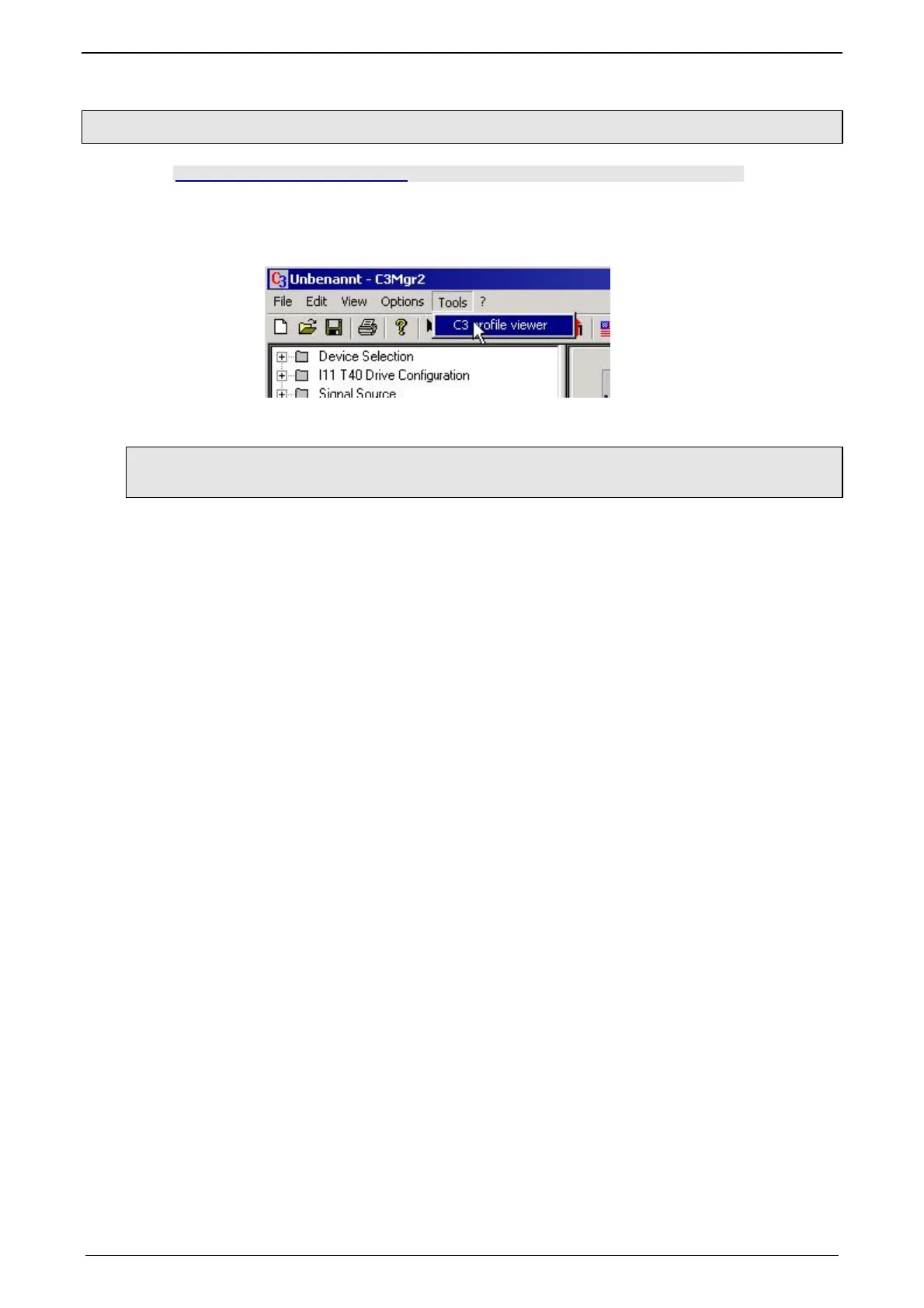

You will find the ProfileViewer in the Compax3 ServoManager under the "Tools"
Menu:
4.3.10.1 Mode 1: Time and maximum values are deduced from Compax3
input values
The motion profile is calculated from Position, Speed, Acceleration, Deceleration,
Acceleration Jerk and Deceleration Jerk
As a result you will get, besides a graphical display, the following characteristic
values of the profile:
Times for the acceleration, deceleration and constant phase
Maximum values for acceleration, deceleration and speed
