Setting up Compax3 C3I22T11
282 192-120114 N5 C3I22T11 June 2008
Resonance points and their causes
In this chapter you can read about:
Rotary two mass system.................................................................................................. 282
Linear two mass system .................................................................................................. 283
Toothed belt drive as two mass system
........................................................................... 284

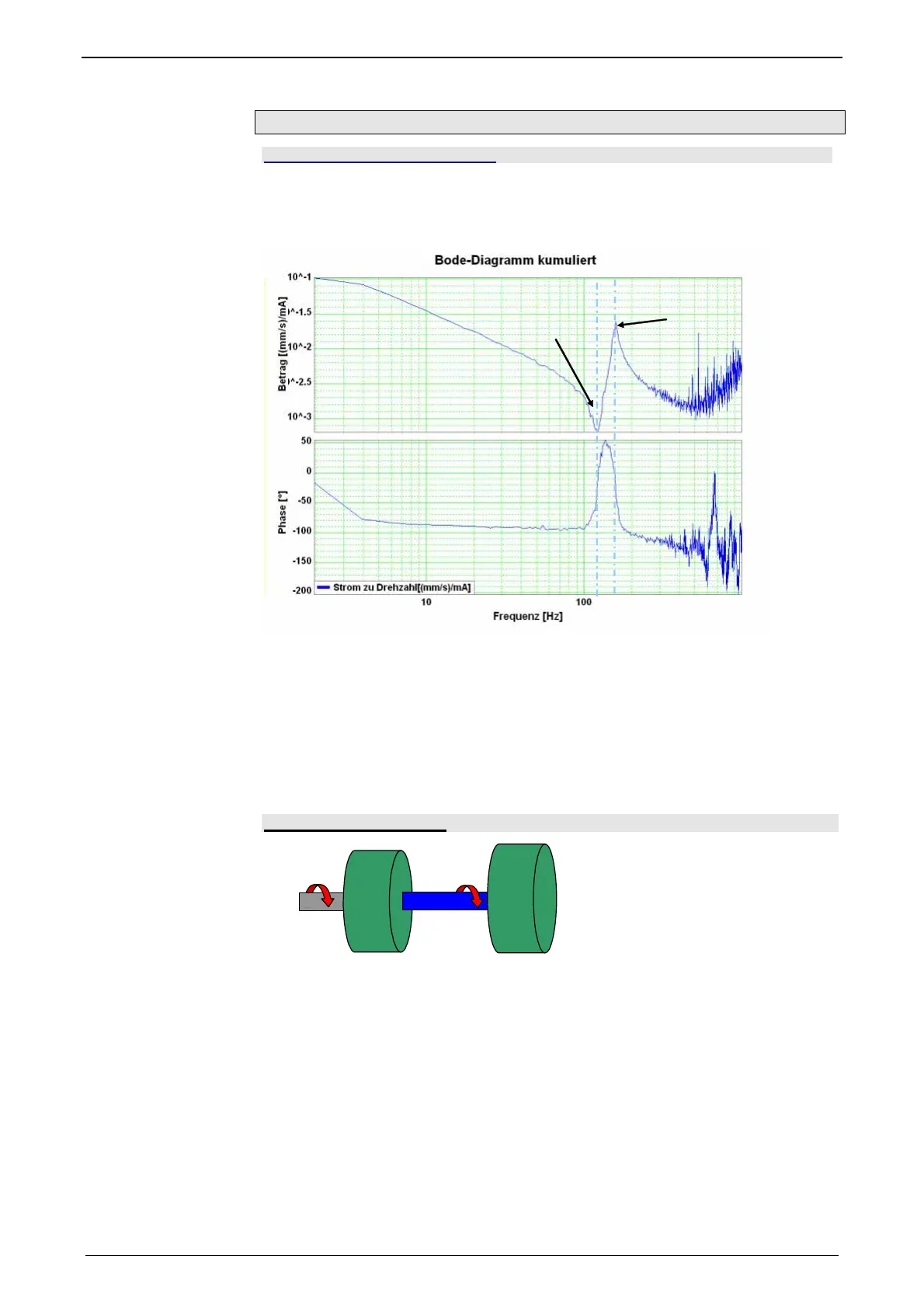

Mechanical system with a resonance point
f
ARes
Res
fARes: Anti resonance frequency
fRes: Resonance frequency
The displayed change of the frequency response (resonance point), has its cause
in a so-called two mass system (caused by the elastic coupling of two masses).
As, upon closer examination, each mechanic coupling shows a certain elasticity, it
is no the question if there is a resonance point, but at which frequency it is and how
well it is attenuated.
Rotary two mass system
M
M
1
1
M
M
2
2
J
J
1
1
J
J
2
2
D
D
Hint
