Setting up Compax3 C3I22T11
164 192-120114 N5 C3I22T11 June 2008
For the operatiing modes SINGLE, NORMAL and AUTO, the following XDIV
time settings are possible:
XDIV Mode Scanning time Samples DIV/TOTAL Measuring time
0.5ms 1 125us 4/40 5ms
1.0ms 2 125µs 8/80 10ms
2.0ms 3 125µs 16/160 20ms
5.0ms 4 125µs 40/400 50ms
10.0ms 5 125µs 80/800 100ms
20.0ms 6 250µs 80/800 200ms
50.0ms 7 625µs 80/800 500ms
100.0ms 8 1.25ms 80/800 1s
200.0ms 9 2.50ms 80/800 2s
500.0ms 10 6.25ms 80/800 5s
1s 11 12.50s 80/800 10s
2s 12 25.00ms 80/800 20s
5s 13 62.50ms 80/800 50s
10s 14 125.00ms 80/800 100s
For the operating ROLL, the following XDIV time settings are possible:
XDIV Mode Scanning time Samples DIV/TOTAL
2 ms 54 125us 200/2000
2ms 54 125µs 200/2000
4ms 55 125µs 200/2000
10ms 56 125µs 200/2000
20ms 57 125µs 200/2000
40ms 58 125µs 200/2000
100ms 59 250µs 200/2000
200ms 60 625µs 200/2000
Changing the time basis is also permitted during an OSCI measuring sequence.
This means, however, that the current measurement is interrupted and started
again with the changed settings.

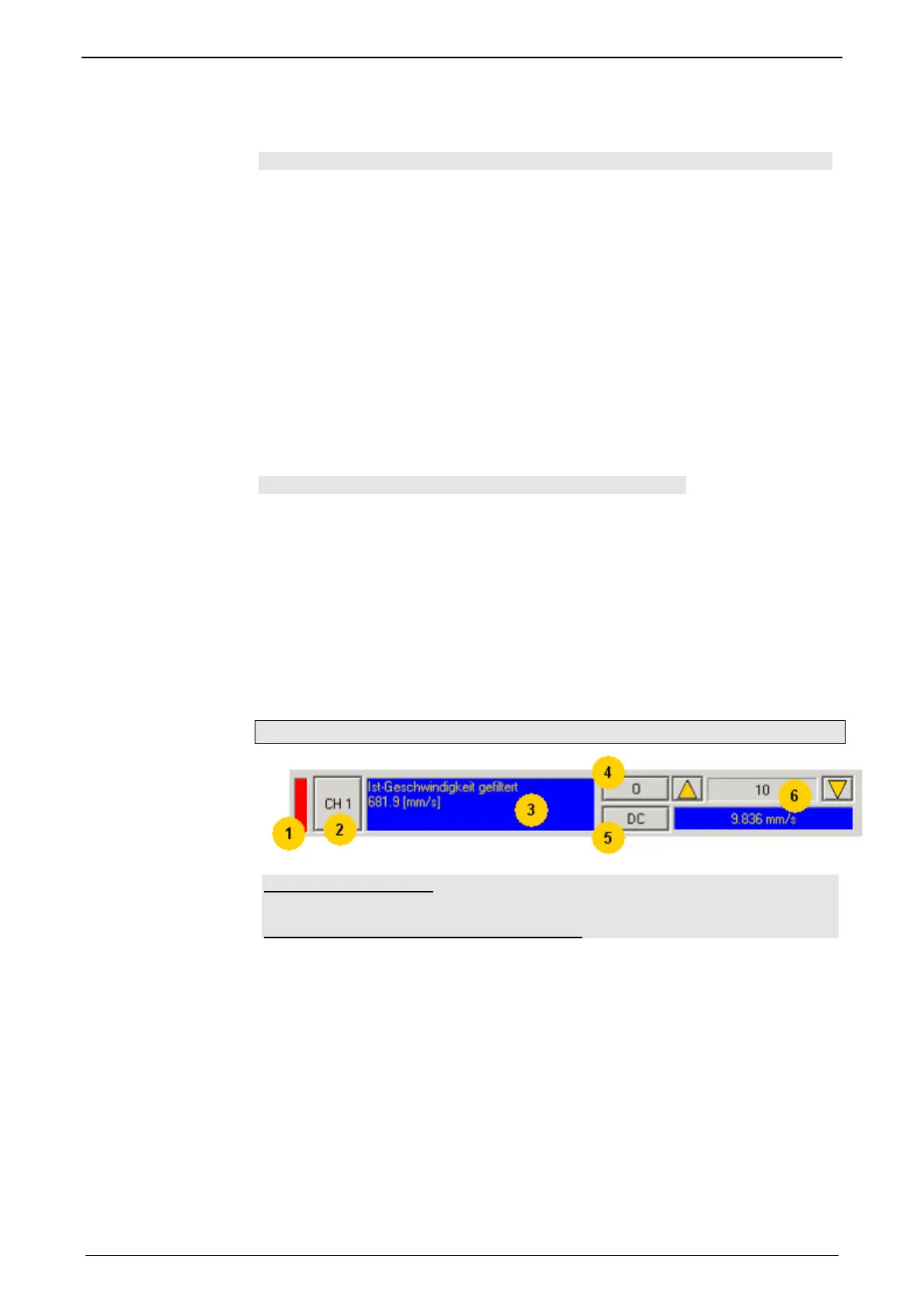

Settings for channels 1..4
1: Select channel color
2: Open menu for channel-specific settings
Reset Channel CH 1..4 all channel settings are deleted.
Please note: Channels can only be fileld with sources one after the other. It is, for
example, not possible to start a measurement which has only a signal source for
channel 2!
Select channel color: Here you can change the color of the channel..
show/hide channel: Hide/show display of the channel.
Change logic display mask: Mask bits in logic display.
auto scaling Calculation of YDIV and Offset: The program calculates the best
settings for YDIV and channel offset in order to display the complete signal va-
lues optimally.
