Parker Compax3 Series User Manual

Compax3 device description C3I22T11
40 192-120114 N5 C3I22T11 June 2008
3.5 Compax3MP/Compax3M connections
In this chapter you can read about:
Front connector ..................................................................................................................40
Connections on the device bottom .....................................................................................41
Connections of the axis combination..................................................................................42
Connector and pin assignment...........................................................................................43
Control voltage 24VDC Compax3MP (mains module) .......................................................45
Mains supply Compax3MP (mains module).......................................................................45
Braking resistor / temperature swit
ch Compax3MP (mains module) .................................47
Motor / motor brake Compax3M (axis controller) ...............................................................48

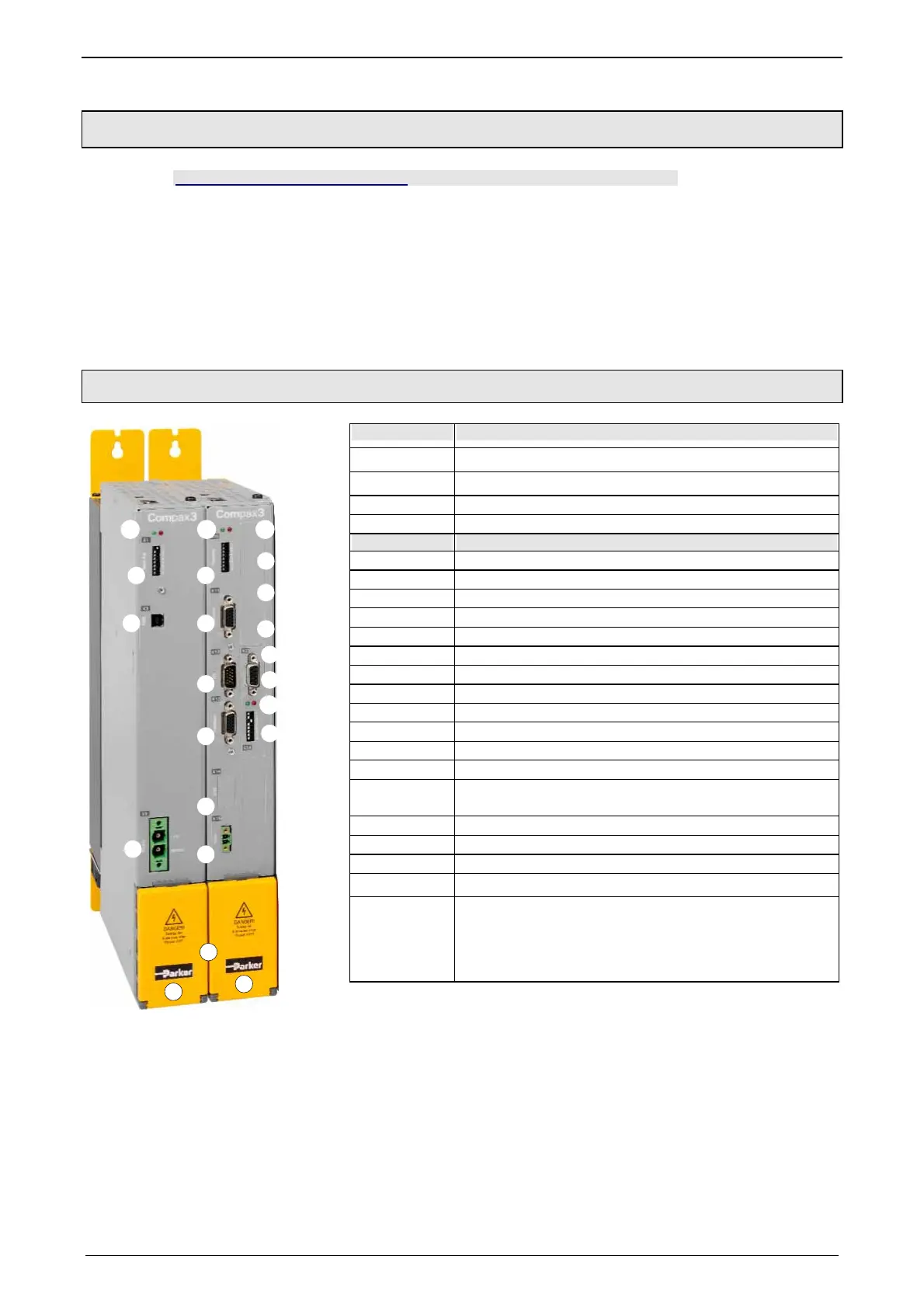

3.5.1. Front connector
MP Power module
LED1 Status LEDs Mains module
S1 Basic address
X3 Configuraiton interface (USB)
X9 Supply voltage 24VDC
M Axis controller
LED2 Status LEDs of the axis
S10 Function
X11 Analog/Encoder
X12 Inputs/Outputs
X13 Motor position feedback
X14 Safety technology (option)
X15 Motor temperature monitoring
LED3 HEDA LEDs
X20 HEDA in (Option)
X21 HEDA out (Option)
X22 Inputs Outputs (Option M10/12)
X23 Bus (option) connector type depends on the bus sy-
stem!
X24 Bus (option) depends on the bus system!
LED4 Bus LEDs
S24 bus settings
1 Behind the yellow protective covers you can find the
rails for the supply voltage connection.
Supply voltage 24VDC
DC power voltage supply
S24
LED4
X24
X23
X22
X21
X20
LED3
X14
X15
X13
X12
X11
S10
LED2
X9
X3
S1
LED1
1
MP
M
