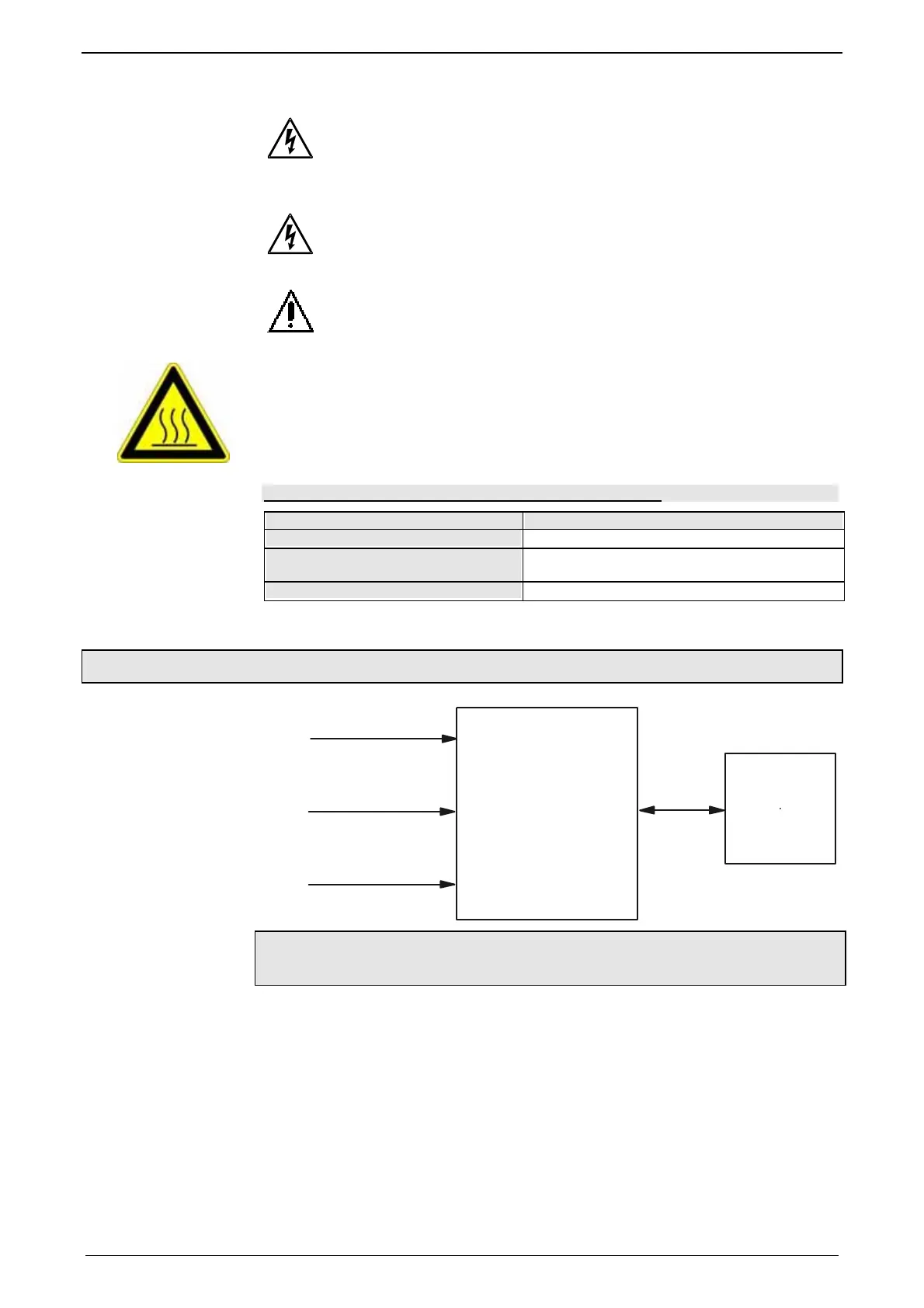

Parker EME
Compax3 device description
192-120114 N5 C3I22T11 June 2008 29
Always switch devices off before wiring them!
Dangerous voltages are still present until 5 minutes after switching
off the power supply!
Caution!
When the control voltage is missing there is no indication whether or
not high voltage supply is available.
PE connection
The PE connection is made with 10mm
2
via a grounding screw at the bot-
tom of the device.
Attention hot surface!
The heat dissipator can reach very high temperatures (>70°C)
Line cross sections of the line connections X1, X2, X3
Compax3 device: Cross-section: Minimum... Maximum[mm
2
]
S025V2, S063V2
0,25 ... 2.5 (AWG: 24 ... 12)
S100V2, S150V2
S015V4, S038V4, S075V4, S150V4
0,25 ... 4 (AWG: 24 ... 10)
S300V4
0,5 ... 6 (AWG: 20 ... 7)
3.3.2. Connector and pin assignment C3S
AC - Versorgung
AC - Supply
X1
X10
DC - Versorgung
DC - Supply
X4 (24VDC)
Freigabe 24VDC
Enable 24VDC
X4/3
RS232
SSK1
PC
Compax3
Further information on the assignment of the plug mounted at the particular
device can be found below!
Overview:
