2. Select the AUTO ENABLE COUNTER field. The Numeric Entry window (see
Figure 5-3, page 5-3) displays.
3. Key in the value you want (maximum is 99), following the directions in the window, and
press ENTER. The value you keyed in displays in the AUTO ENABLE COUNTER field.
4. Select a sensor to program by moving the highlight bar to that sensor and pressing
ENTER.
Naming the Sensor
When you select a sensor to program on the Die Protection Sensor Menu, the Sensor Names
screen, shown in Figure 5-22, displays.
On this screen you can select one of the names displayed, or you can select one of the
“custom” names set in Initialization (see CUSTOM SENSOR NAMES (Optional), page 4-17).
To name a sensor, do the following:
1. Select a sensor (e.g., Sensor 1) on the Die Protection Sensor Menu. The Sensor Names
screen displays.
2. Select from the list of names the name that best describes the function of the selected
sensor.
To view names that appear below the MORE NAMES line, press the Down () cursor
key. A new name appears each time you press the Down () cursor. When you have
cycled through the complete list, the highlight bar returns to UNNAMED, the first item.
3. If none of the names in the list seems suitable but you still want to name the sensor, select
“CUSTOM” NAME. The Custom Sensor Names screen, shown in Figure 5-23,
page 5-23, displays.

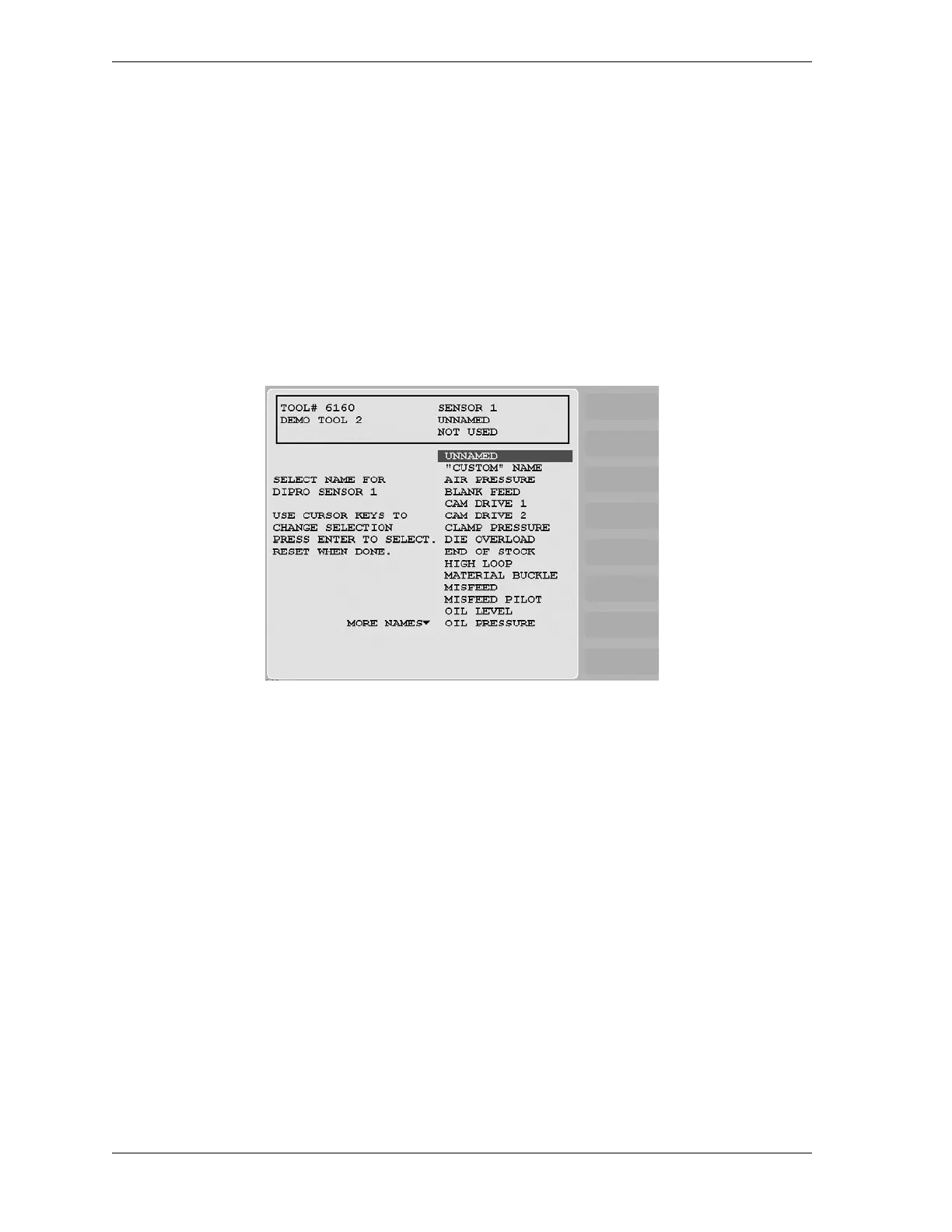

Figure 5-22. Sensor Names Screen
To Next Page
