Initialization Mode 4-1
Chapter 4. SmartPAC 2 Initialization Mode
This chapter shows you how to make settings in SmartPAC 2 Initialization mode.
Initialization settings, which are entered via the Main Initialization Menu (see Figure 4-1),
control operation of SmartPAC 2 for all tools. (You make settings for individual tools in
Program mode–see Chapter 5).
The following sections cover zeroing the resolver, enabling the position sensor, setting the
brake monitor, controlling security access, setting communications parameters, and other
operations. It also documents functions related to programmable cams and die protection,
such as entering custom cam channel and sensor names and setting global cams.
If you have SmartPAC 2 options installed, you will also make Initialization settings for them.
Refer to the user manuals for the options you have purchased for instructions.
Entering and Exiting Initialization Mode
Follow the instructions shown in Table 4-1, page 4-2 to enter and exit Initialization mode.
See Figure 3-23, page 3-17 for help in navigating in Initialization mode.

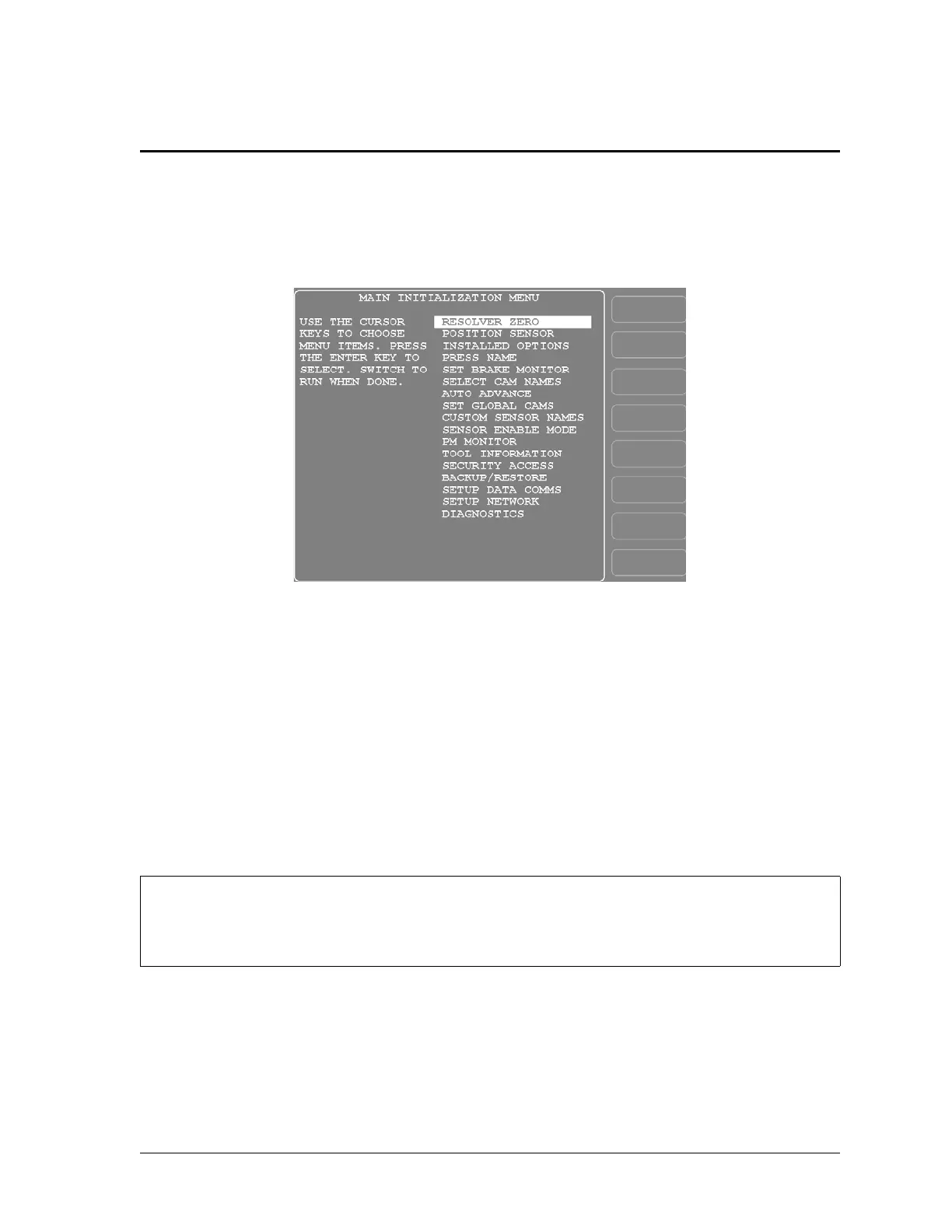

Figure 4-1. Main Initialization Menu
(Includes some options. Your display may look different.)
SELECT = HIGHLIGHT + ENTER
When this manual instructs you to select an item, you should highlight the item, and press ENTER.
