4. If you want to change any settings, refer to Viewing and Changing Sensor Settings,
page 5-30).
Otherwise, press RESET to return to the Die Protection Sensor Menu. The highlight bar
automatically scrolls down to the next sensor displayed on the menu.
Setting the Counter Value for a Green Special Sensor
When you select GREEN SPECIAL as the sensor type on the Sensor Type screen, the Green
Special Sensor Stroke Count screen, shown in Figure 5-29, displays. On this screen, you set
the number of strokes that the press can make before the Green Special sensor must actuate.
To set the Green Special sensor stroke count, do the following:
1. On the Green Special Sensor Stroke Count screen, increment or decrement the stroke
counter (maximum value is 99), using the Up () or Down () cursor key, until the value
you want is displayed.
2. Press RESET. The Sensor Settings screen (see Figure 5-30, page 5-30) displays with all
your sensor settings shown.
3. If you want to change any settings, refer to Viewing and Changing Sensor Settings (next
section).
Otherwise, press RESET again to return to the Die Protection Sensor Menu. The highlight
bar automatically scrolls down to the next sensor displayed on the menu.

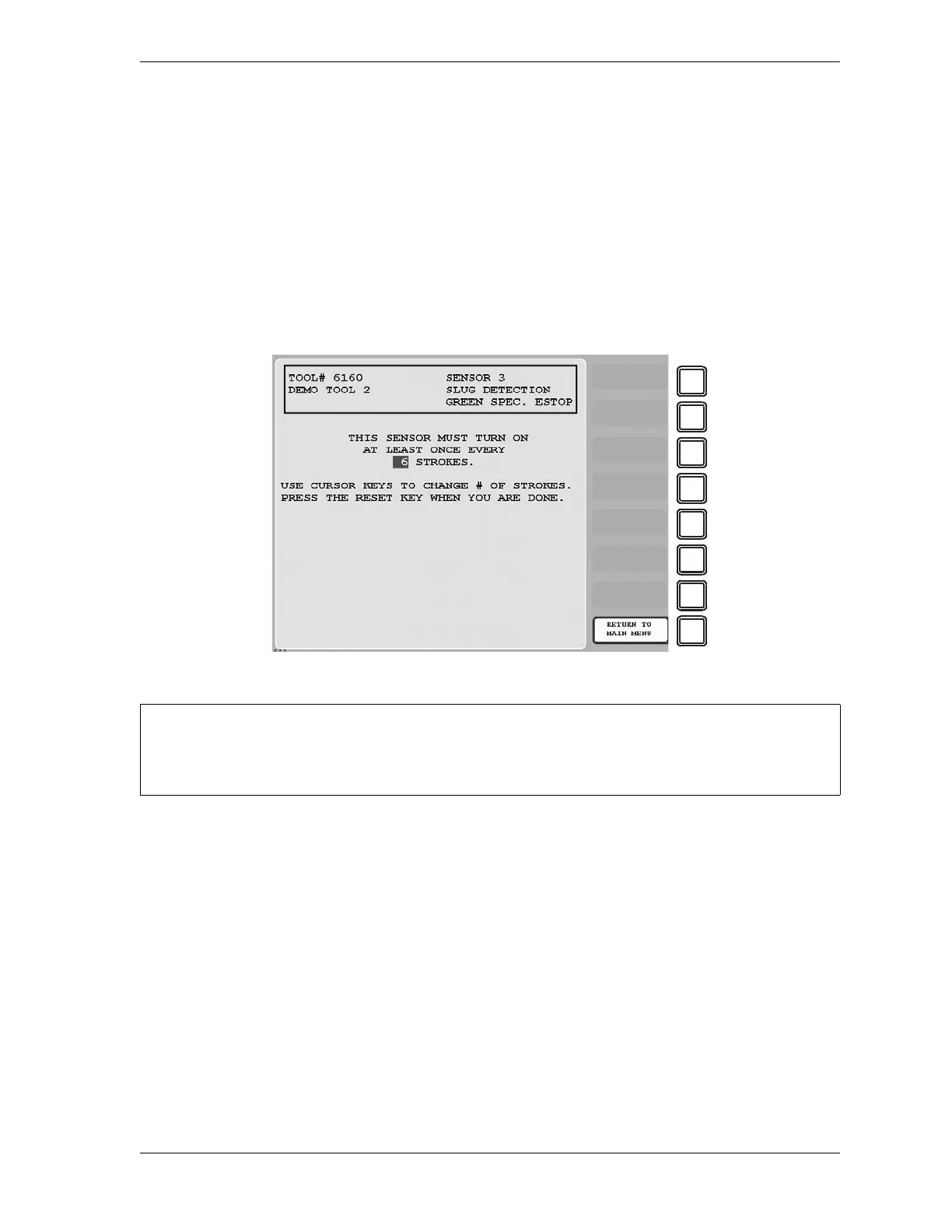

Figure 5-29. Green Special Sensor Stroke Count Screen
For more information about Green Special sensors, refer to Understanding Sensor Terminology,
page 5-16.
