1126700 SmartPAC 2 User Manual
F-16 Reporting Downtime and Scrap to SFC
Documenting Downtime on the Dialog Menu
A downtime reason can be selected on the Dialog Menu either in response to the Forced
Dialog message or when the operator wants to change a previous downtime entry or add detail
to reported downtime.
Documenting Downtime in Response to the Forced Dialog Message
With Forced Idle Dialog mode or Forced Error Dialog mode enabled (see Making Downtime
Reporting Settings, page F-7), the operator is prompted to enter a downtime reason on the
Dialog Menu whenever SmartPAC 2 detects that the press has stopped under the appropriate
circumstances. This message is shown in Figure F-8.
To respond to this prompt, perform the following steps:
1. Press RESET to clear the message. The Dialog Menu displays. If dialog screen mode is
set to “16/16” (see Setting up SmartPAC 2 to Report Downtime, page F-7), the Dialog
Menu looks like the example shown in Figure F-9, page F-17. If “32 CUSTOM” is the
dialog screen mode setting, the Dialog Menu looks like the example shown in
Figure F-10. Note that the “32 CUSTOM” Dialog Menu has assigned the Operator
Number, Back on Line, and Changeover downtime reasons to function keys F4, F5, and
F6; also, the F7 key has been assigned to the End Job function (see Ending a Job,
page F-20).

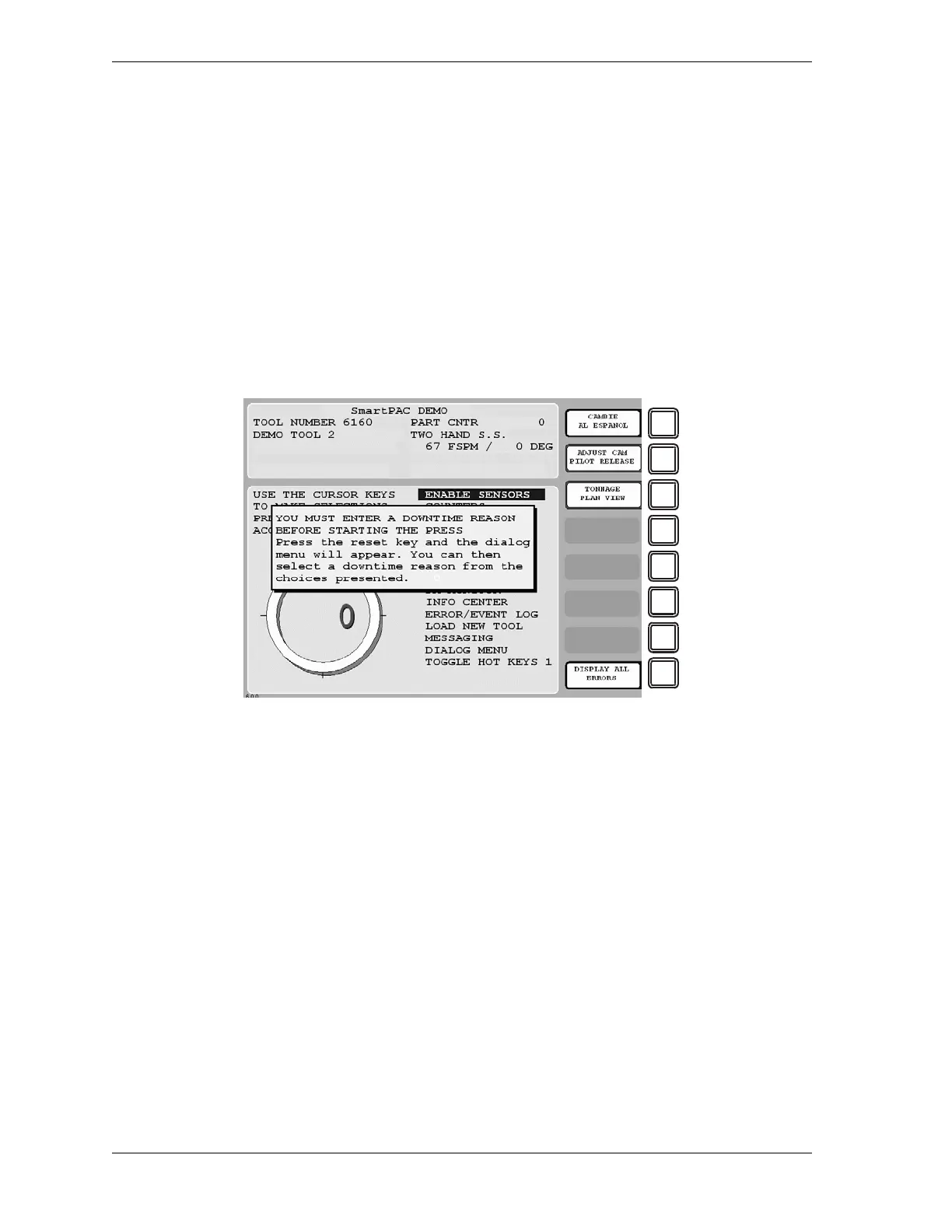

Figure F-8. SmartPAC 2 Run Mode Main Menu with Forced Dialog Message Displayed
