1126700 SmartPAC 2 User Manual

F-8 Reporting Downtime and Scrap to SFC

2. Highlight the “SETUP DATA COMMS” menu item, using the Up () or Down ()

cursor key, and press ENTER. The Set Communications Menu (see Figure F-5) displays:

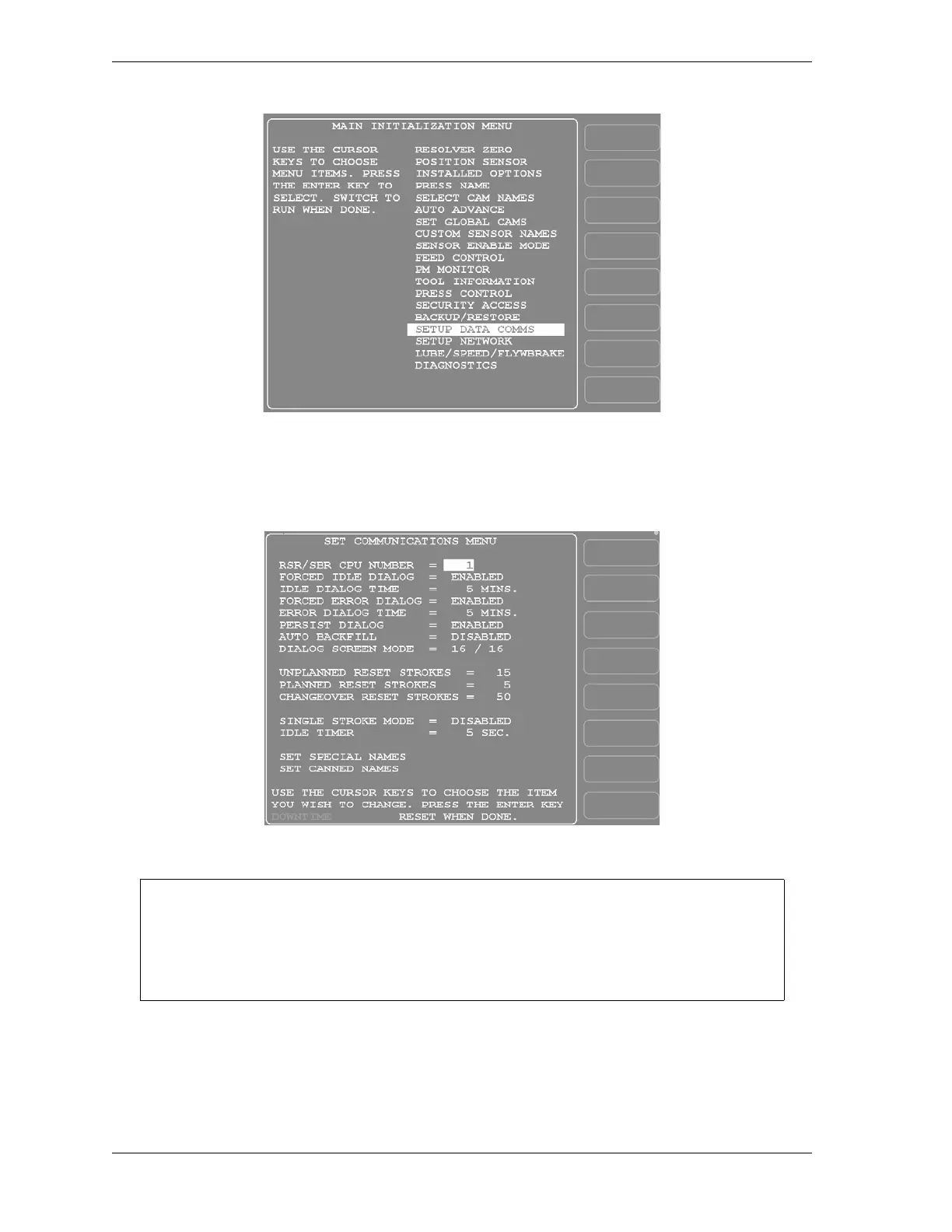

Figure F-4. SmartPAC 2 Main Initialization Menu

Figure F-5. Set Communications Menu

Wintriss recommends that you take advantage of the additional features provided by the

“32 Custom” dialog screen mode setting. The “16 / 16” setting should be selected only

when you have both SmartPAC 1s and SmartPAC 2s and, even then, only if complete

consistency is required.
