SmartPAC 2 User Manual 1126700

Installation 2-9

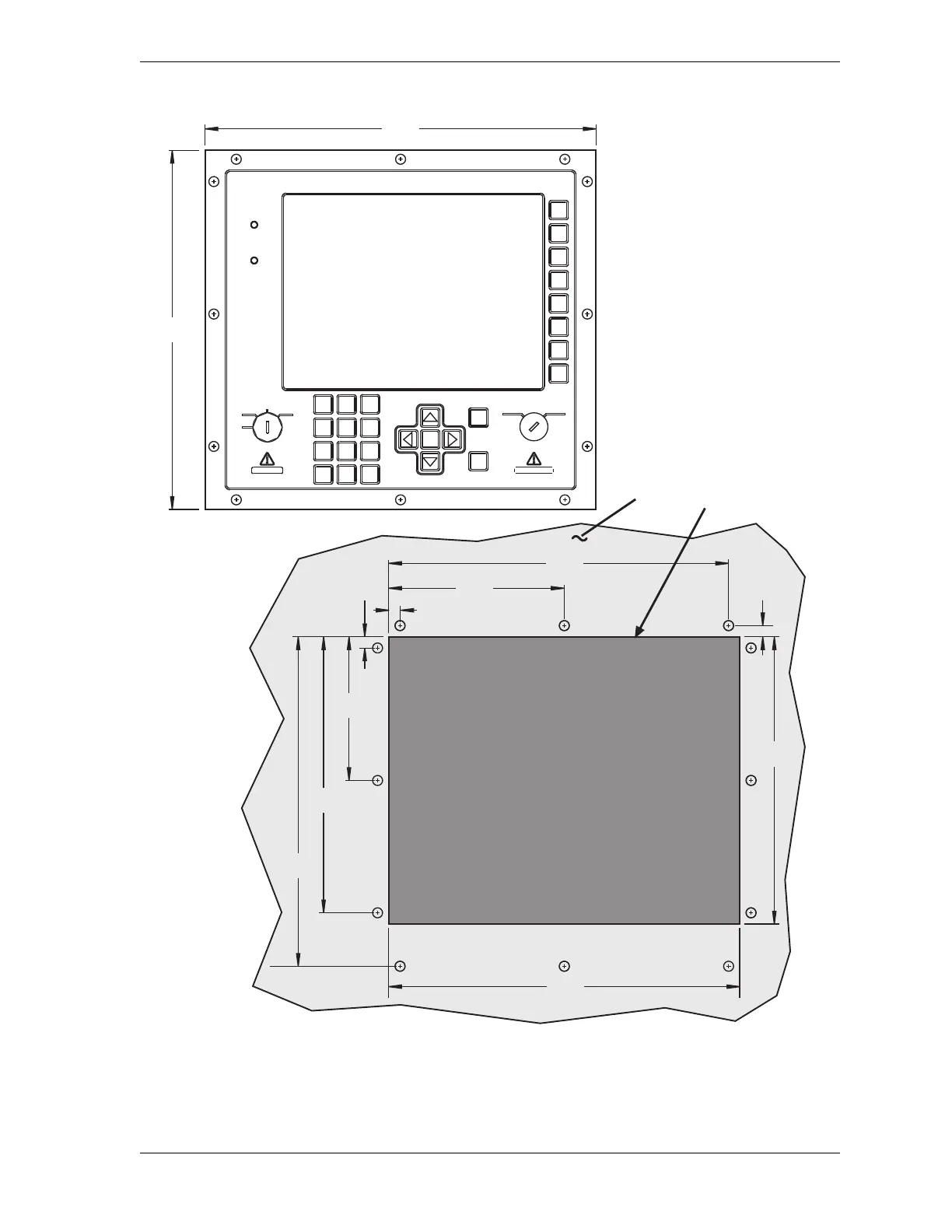

Figure 2-5. SmartPAC 2 Mounting and Cutout Dimensions: Panel Mount

0.35

(8.9)

TYP

Dimensions:

Inches (mm)

0.35

(8.9)

TYP

4.50

(114.3)

ENTER

RESET

PROG RUN

POWER

BRAKE

WARNING

HELP

123

456

987

CLEAR

SmartPAC 2

NOTE:

SmartPAC and SmartPAC 2

both use the same size cutout:

9.5 x 11 inches. The top 9 holes

are in the same location.

If you are replacing a SmartPAC

with a SmartPAC 2, drill three

additional holes at the locations

shown for the bottom three holes.

10.65

(270.5)

11.00

(279.4)

11.30

(287.0)

12.30

(312.4)

0.35

(8.9)

TYP

8.65

(105.4)

9.00

(228.6)

10.35

(261.6)

5.50

(139.7)

0.35

(8.9)

TYP

Allow 6 inches (153 mm)

minimum clearance behind

the panel

Panel

Cutout

OFF

INCH

SINGLE

STROKE

CONT
