Deleting a Sensor
To delete a Die Protection sensor, do the following:
1. On the Die Protection Sensor Menu, select the sensor you want to delete. The Sensor
Settings screen displays.
2. Select the Sensor Type. The Sensor Type screen appears.
3. Select NOT USED. You are returned to the Die Protection Sensor Menu with the name of
the sensor you selected in step 1 removed and a caption specifying the sensor number
(e.g., SENSOR 1, SENSOR 2, etc.) displayed.
Programming DiProPAC 32 Sensors
When DiProPAC 32 is an installed option, two menu choices appear on the Tool Program
Menu in place of the DIE PROTECTION item: DIPROPAC 1-16 and DIPROPAC 17-32 (see
Figure 5-32, page 5-32). You program the first sixteen DiProPAC 32 sensors, using the
DIPROPAC 1-16 menu item. You select the DIPROPAC 17-32 item to program sensors
17-32.
The first sixteen DiProPAC 32 sensors are programmed in exactly the same way you program
DiProPAC 8 and DiProPAC 16 sensors. If you are programming sensors 17-32 as red or
yellow sensors, procedures are also the same as for DiProPAC 8 and DiProPAC 16.
When you program sensors 17-32 as green sensors, you must handle them differently. When
programmed as green, green quick check, and green constant sensors, sensors 17-32 must use
the same Ready signal as an already programmed green, green quick check, or green constant
sensor among sensors 1-16. When programmed as green special sensors, sensors 17-32 must
use the same stroke count as an already programmed green special sensor among sensors
1-16.

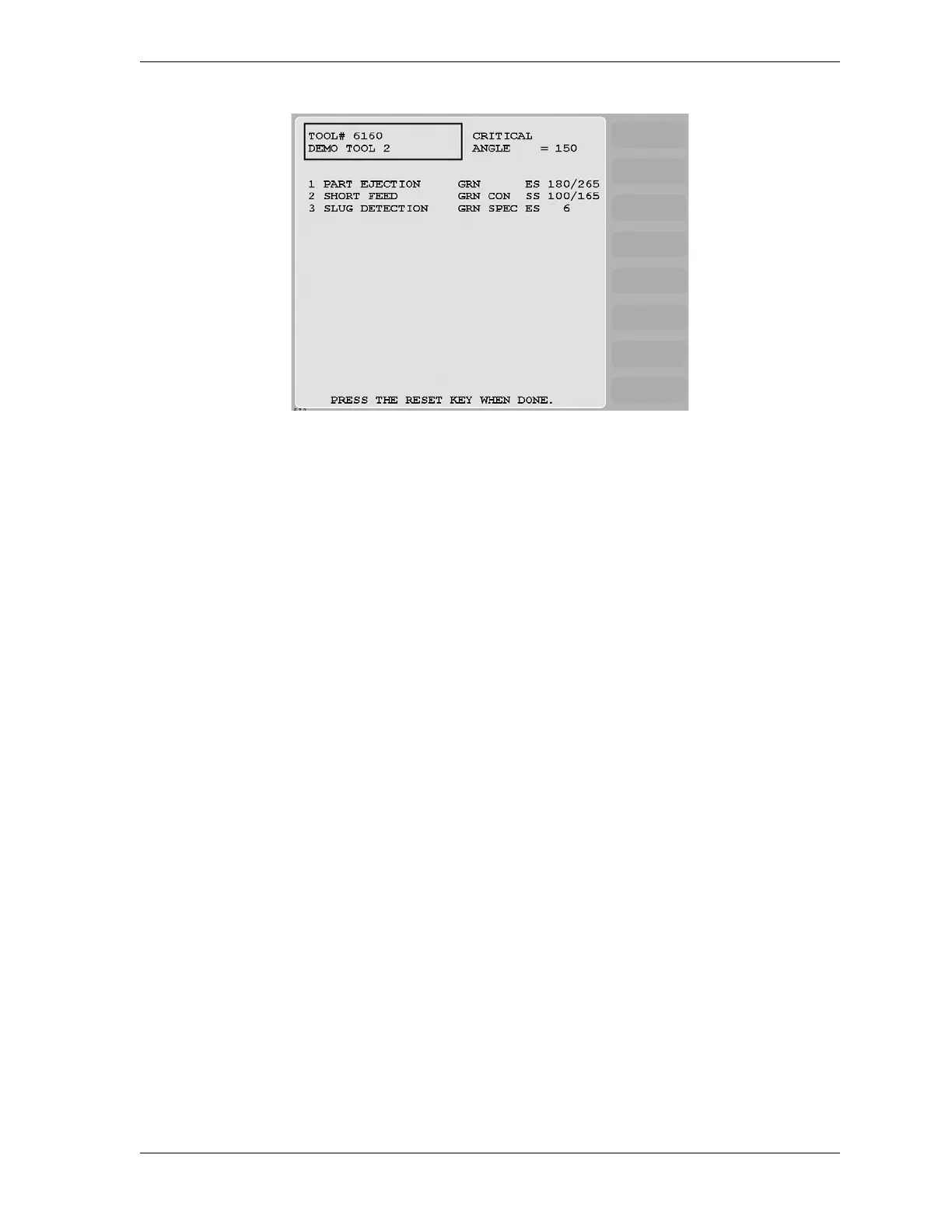

Figure 5-31. Sensor Summary Screen
