1126700 SmartPAC 2 User Manual
5-34 Program Mode
5. Select the stop type you want. The Sensor Summary screen displays (see Figure 5-37,
page 5-34) with the Ready signal On and Off angles shown for each green sensor
programmed in the group of sensors 1-16. Sensors are displayed in ascending On angle
order.
6. Select the Ready signal you want. The Sensor Settings screen displays (see Figure 5-38,
page 5-35), showing the sensor name, sensor type, stop type, and Ready signal On and Off
angles you have selected. The screen also shows the number of the sensor in the group of
sensors 1-16 whose Ready signal is being used as the Ready signal for the sensor you are
programming.

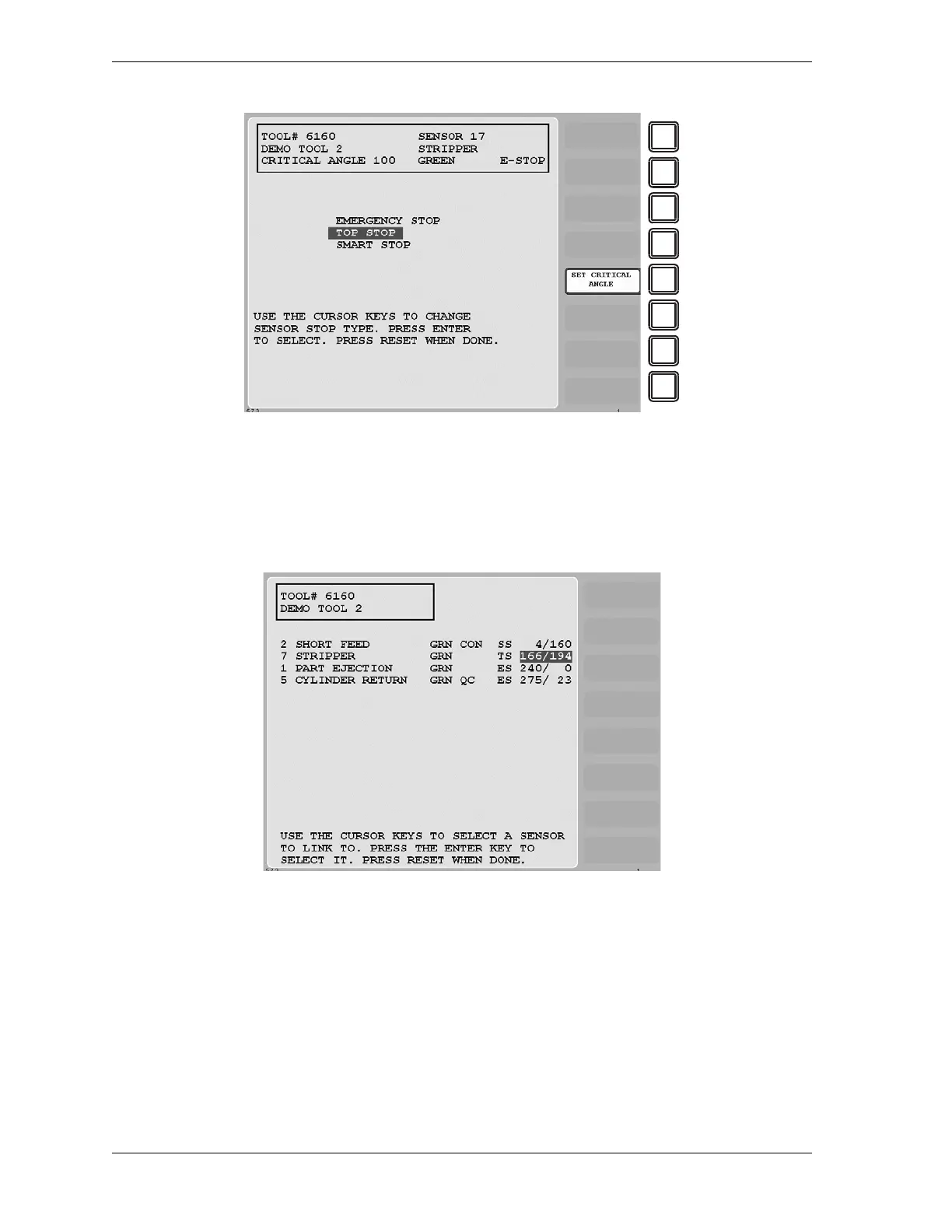

Figure 5-36. Sensor Stop Type Screen
Figure 5-37. Sensor Summary Screen Showing Ready Signals for Green Sensors
