3-10 Keyboard, Displays, Etc.
RESET Key
The RESET key, shown in Figure 3-15, has two functions: to exit from the current display and
return to the previous display and to reset SmartPAC 2 when an error is generated or a counter
preset is reached.
When RESET is used to exit from a display, a screen message indicates the conditions under
which RESET should be pressed (e.g., PRESS RESET WHEN DONE or PRESS RESET TO
CANCEL).
When RESET is used to reset SmartPAC 2, the message documenting the error or indicating
that the counter preset has been reached disappears, and you can once again run the press.
Program/Run Key Switch
The Program/Run key switch, shown in Figure 3-16, is used to move between Program and
Run modes (see SmartPAC 2 Operating Modes, page 3-14).
• When you turn the key switch to PROG, SmartPAC 2 enters Program mode
• When you turn the key switch to RUN, SmartPAC 2 enters Run mode

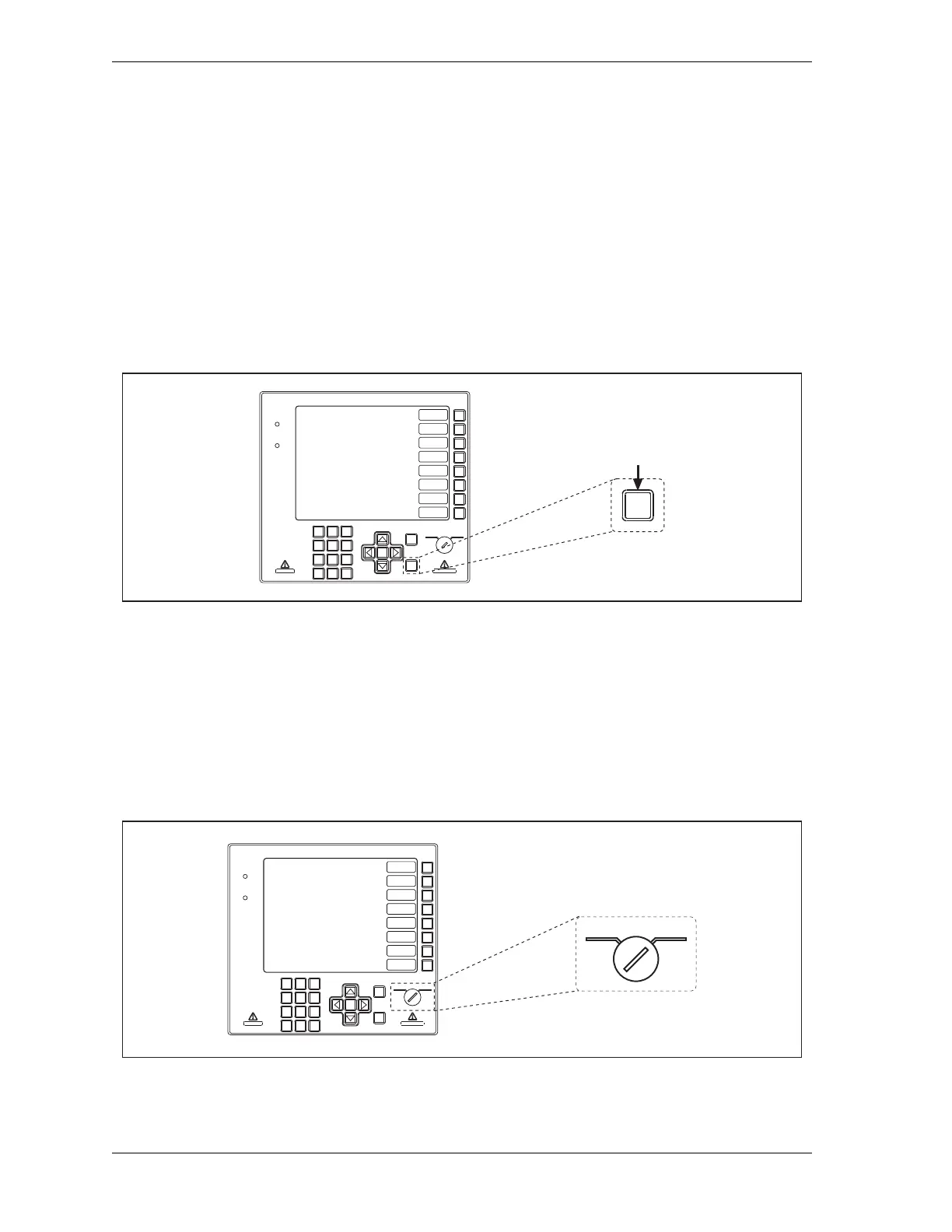

Figure 3-15. RESET Key
Figure 3-16. Program/Run Key Switch
ENTER
RESET
PROG RUN
POWER
BRAKE
WARNING
HELP
123
456
987
.
0
CLEAR
SmartPAC 2
F1
F2
F3
F4
F5
F6
F7
F8
CAMBIE
AL ESPANOL
RESET
key
RESET
ENTER
RESET
PROG RUN
POWER
BRAKE
WARNING
HELP
123
456
987
.
0
CLEAR
SmartPAC 2
F1
F2
F3
F4
F5
F6
F7
F8
CAMBIE
AL ESPANOL
Program/Run
key switch
PROG RUN
