6. RADAR
6-9
6.8.6 How to measure the bearing with the EBL
The EBL is a straight dashed line from the center of the screen to the edge.
1. Select [EBL] from the RotoKey menu.
2. Select [Adjust].

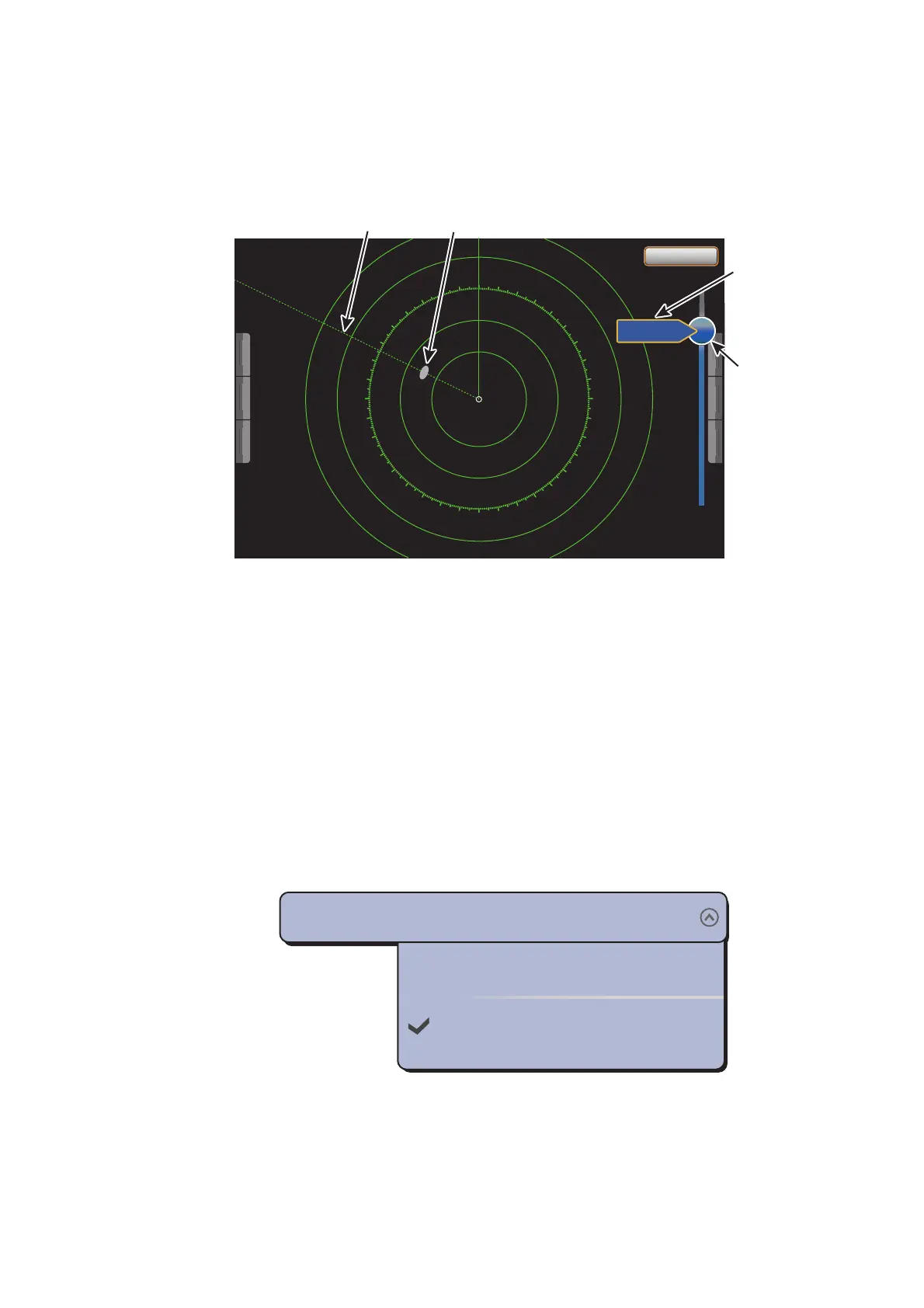

3. Drag the circle icon to put the EBL on the center of the target. Read the bearing
to the target at the left side of the circle icon.
4. Select [End EBL] at the top right-hand corner of the screen to erase the slider bar.
To delete the EBL, select [EBL] - [Clear] from the RotoKey menu.
You can operate the EBL from a pop-up menu.
6.8.7 How to select the EBL reference
You can select the EBL reference from [True] or [Relative]. [True] means the bearing
is in reference to the north. [Relative] means the bearing is relative to the heading of
your ship. True bearing requires a heading sensor.
1. Select [Menu] on the menu icon bar to open the main menu.
2. Select the [Radar] - [EBL Reference] menu.
3. Select [True] or [Relative].
4. Select [Close] to exit the menu.
