11-1
11. INSTRUMENT DISPLAY
The instrument display gives you the following navigation and environment displays:
• Steering
• Engine
• Tank level (fuel)
• Weather
• Wind
• NAVpilot
• Highway
The instrument display can be programmed to a full screen or three-way split screen.
In the full screen, four displays are shown at the same time. The size of any instrument
display is fixed to the 1/4 screen.
11.1 How to Show the Instrument Display

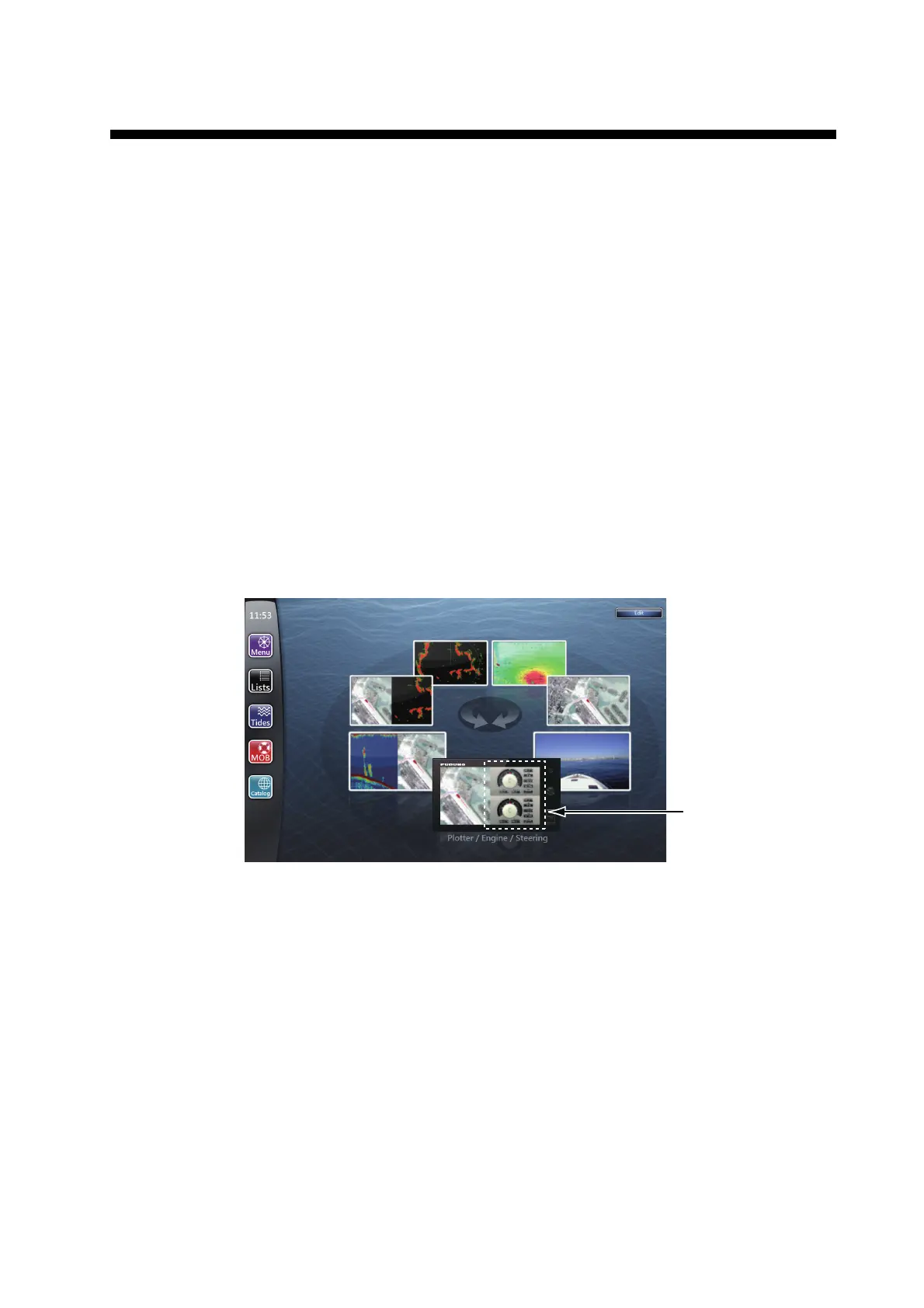

Set the instrument display referring to section 14.2 then display the (combination)
screen which contains the instrument display.
11.2 How to Select an Instrument Display
You can show steering, engine, tank level, weather or wind data in the instrument dis-
play if you have the related sensors. Select the data to display as follows:
1. Select the instrument display to activate. A orange line is displayed on the top of
the selected instrument display.
2. Select a menu item from the RotoKey menu or the pop-up menu. (The options are
the same in both the RotoKey and pop-up menus.) The data for the selected menu
item is displayed. (See page 14-7 for the menu items.)
