xiii

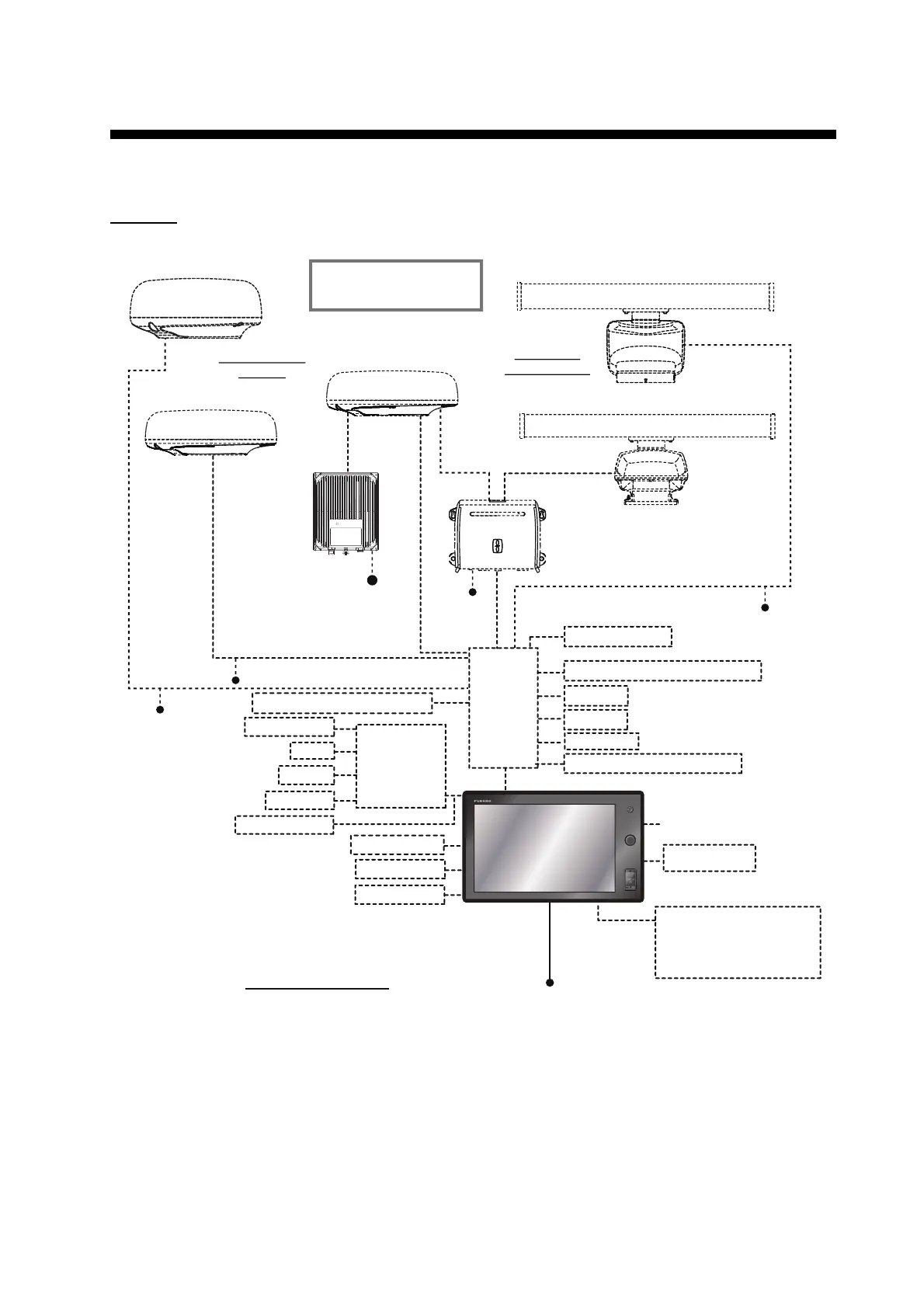

SYSTEM CONFIGURATION
Basic configuration is shown with solid line.
TZT9/14
Note: When you connect an external monitor to the TZT unit, use a monitor whose aspect ratio is
the same as the TZT unit (5:3 for TZT9, 16:10 for TZT14). The pictures may be stretched or shrunk
with a different aspect ratio.
CCD Camera
CCD Camera
FI-5002
SC-30
GP-330
FI-50, etc.
IF-NMEA2K1/2
Multi Function
Display
TZT9/TZT14
12/24 VDC
Event SW
External Buzzer
Speed Alarm
Power input for CAN bus
IP Camera
Environmental category
Sensor units: Exposed to the weather
All other units: Protected from the weather
HUB -101
FA-30/50
FAX-30
FAR-2xx7 series
Wide Monitor
Network Equipment
MCU-002/004
NAVpilot-700
FCV-1150, BBDS1, DFF series
Open Array
Radar Sensors
12-24
VDC
DRS2D/DRS4D
POWER SUPPLY UNIT
*
1
PSU-012/PSU-013
Radome Radar
Sensors
DRS4A/DRS6A/DRS12A/DRS25A
POWER
SUPPLY
UNIT*
PSU-017
For PSU-017
12-24 VDC
DRS4D-NXT
24 VDC
12-24 VDC
12-24 VDC
Select one of radome
or open array sensor.
*
1
: A power supply is required for the following antenna units:
DRS2D/4D/4A/6A/12A: PSU-012
DRS25A: PSU-013
DRS2D/4D: PSU-017
*
2
: FUSION MS-700 series only.
.
FUSION-Link equipment*
2
DRS4DL
DRS6A X-Class/DRS12A X-Class/
DRS25A X-Class
Multi Beam Sonar DFF-3D
To Next Page
