11.3.5 Wind display

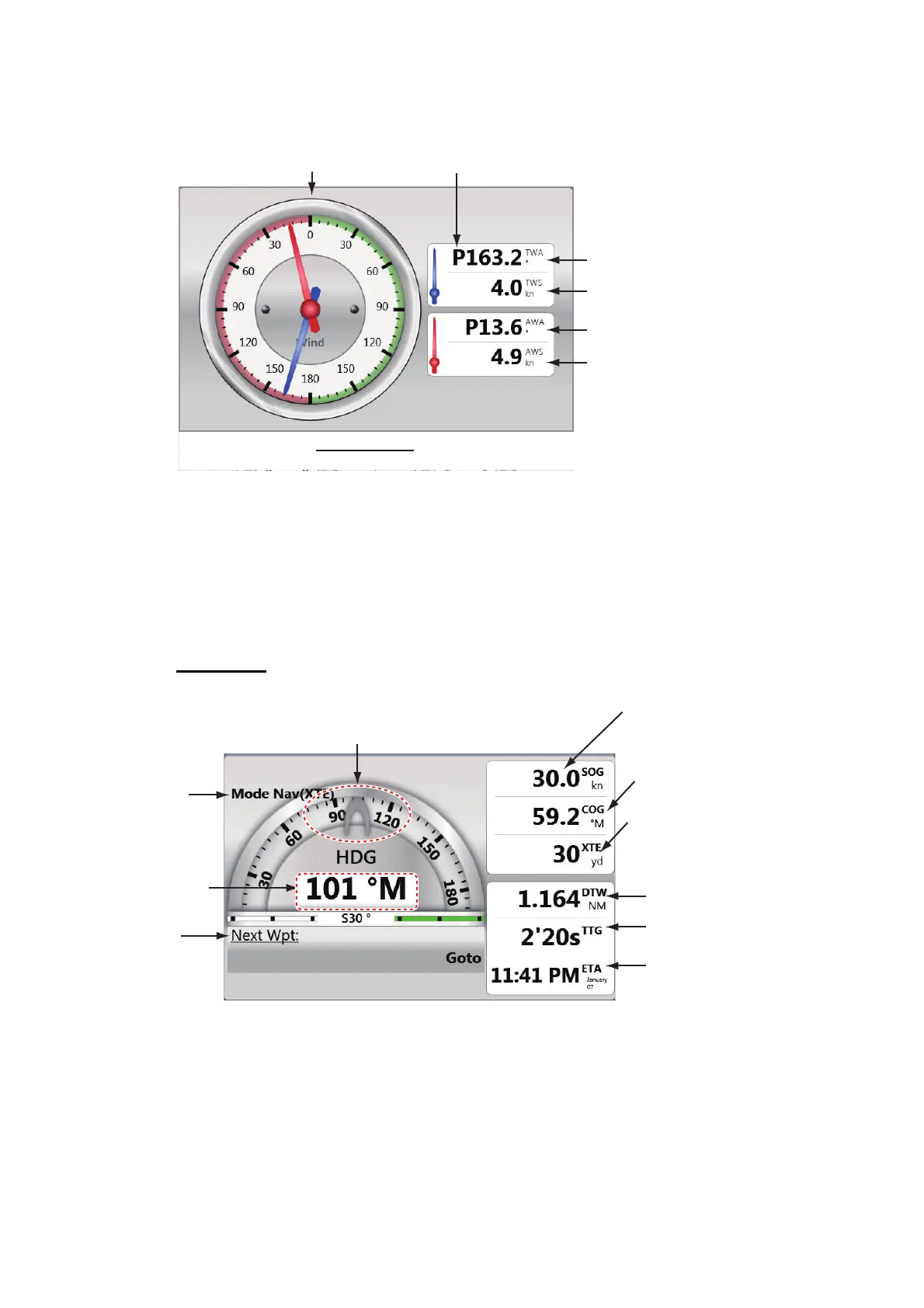

The wind display provides digital and analog indications of wind speed and angle.
11.3.6 NAVpilot display
The NAVpilot displays provide heading, goto waypoint information, cross track error
information, course to steer, course over the ground, and TTG to waypoint.
The NAVpilot display can be adjusted from the instrument display or the same display
in the data area.
NAV mode
TWA: True wind angle
TWS: True wind speed
AWA: Apparent wind angle
AWS: Apparent wind speed
Analog wind angle
P: Port, S: Starboard
Indicator color
Blue: True wind, Red: Apparent wind
Distance to waypoint
Mode (NAV)
Heading (analog)
Heading
(digital)
Next
waypoint
Speed over
the ground
TTG to waypoint
ETA to
waypoint
XTE (Cross Track Error)
Course over
the ground
