13. AUTOMATIC IDENTIFICATION SYSTEM (AIS)

13-5

13.8 AIS List

How to open the AIS list

1. Select [Lists] on the menu icon bar to open the lists menu.

2. Select [AIS List].

The data for the AIS dangerous targets are displayed in red.

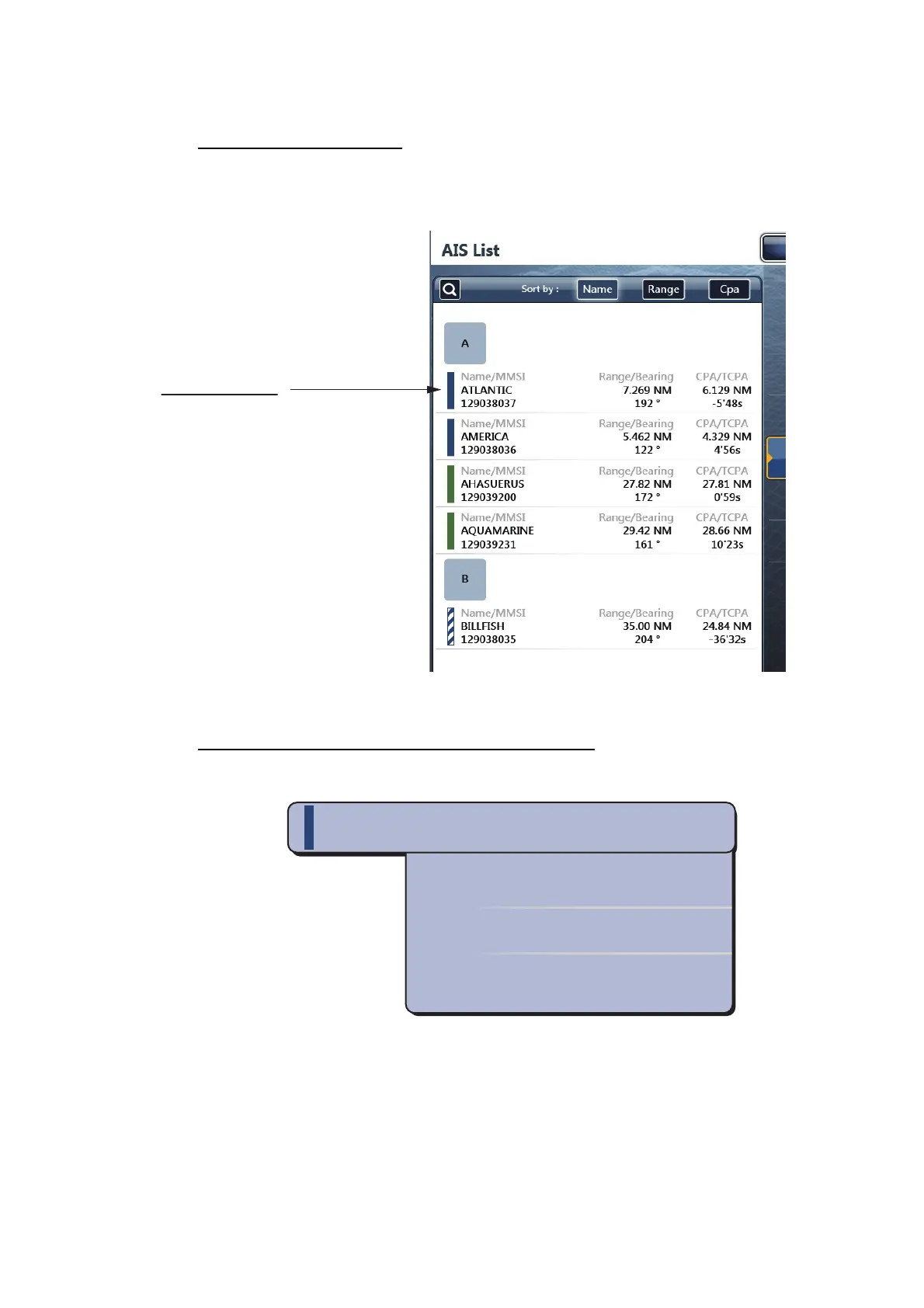

How to display the detailed information for AIS

1. Select the AIS to display the detailed information on the AIS list.

IS symbol color

Easily identify target type.

Blue: AIS target for Class A

Green: AIS target for Class B

Blue & white stripe: AIS target for BFT

Detail

Find On Chart

Edit Nickname

ANAIS

518111000

Name/Mmsi

Range/Bearing

Cpa/Tcpa

1.959 NM

268.6

0.661 NM

-10’ 59s
