2.9 Cartographic Text and Objects on Vector Charts
This section shows you how to show or hide the cartographic objects and text infor-
mation that appear on the vector charts.
2.9.1 Control visibility of text and object information

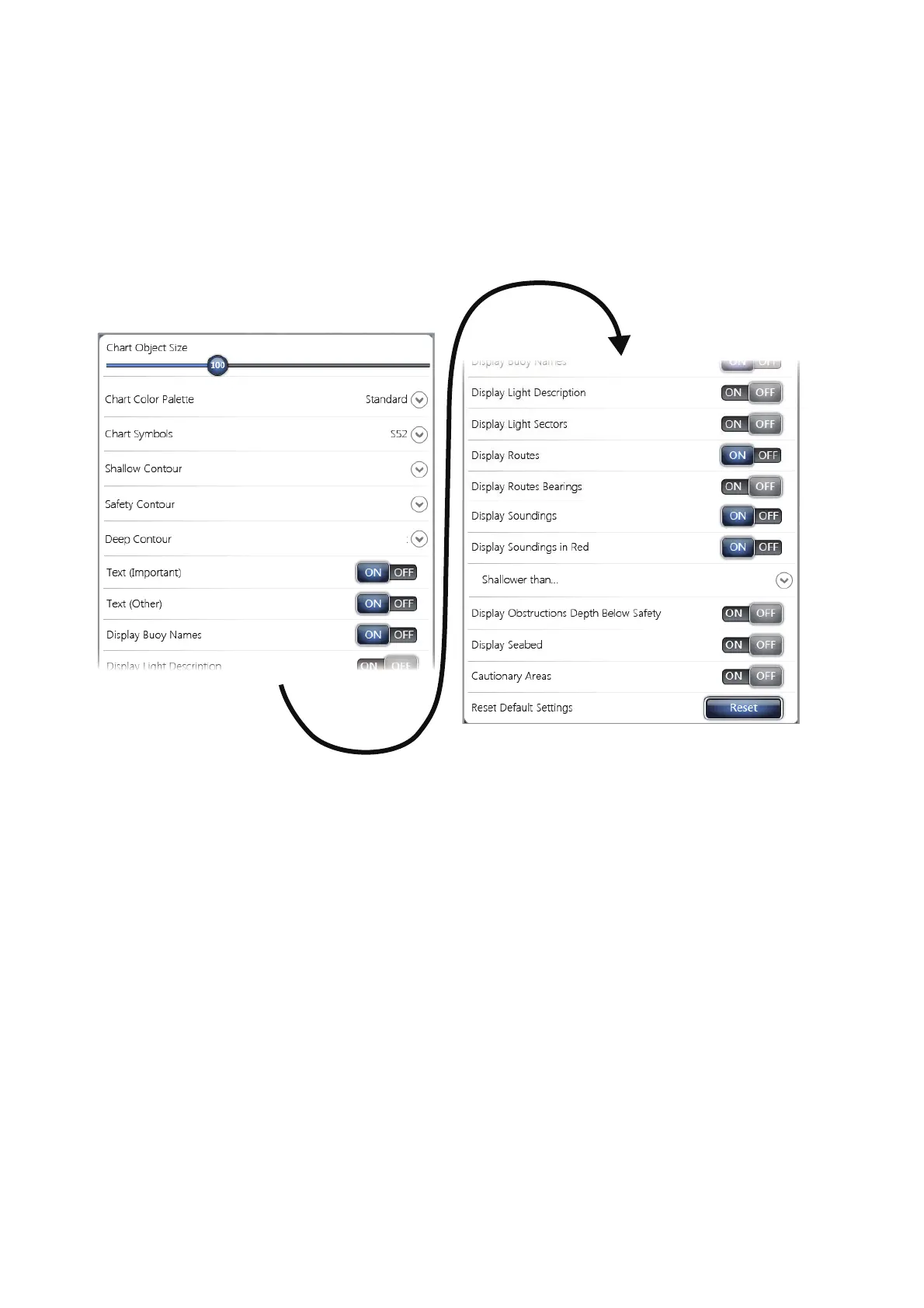

The [Vector Chart] menu controls the visibility of text and object information, for exam-
ple, buoy names and light description.
[Chart Object Size]: Drag the circle icon to set the chart object size (setting value: 50
to 200%).
[Chart Color Palette]: Set the chart color pattern. [Standard] is the NAVNet TZtouch
original color palette, [S-52] complies with the official S-52 charts, and [Sunlight] pro-
vides a high contrast palette.
[Chart Symbols]: Select the chart symbol type. [S-52] are the official IMO symbols (al-
so referred to as simplified symbols) library for ECDIS. [International] symbols are the
copy of paper chart symbols of IALA symbols library (US symbols library).
[Shallow Contour]: Set the shallow depth (setting range: 0.0, 3.0, 6.0, 9.0, 12.0, 15.0,
18.0, 21.0, 24.0, 27.0, 30.0 ft). Show shallow depth contours in dark blue.
[Safety Contour]: Set the safety depth (setting range: 0.0, 3.0, 6.0, 9.0, 12.0, 15.0,
18.0, 21.0, 24.0, 27.0, 30.0, 50.0, 70.0, 100, 200 ft). Show safety depth contours in
medium blue.
[Deep Contour]: Set the deep depth (setting range: 0.0, 3.0, 6.0, 9.0, 12.0, 15.0, 18.0,
21.0, 24.0, 27.0, 30.0, 50.0, 70.0, 100, 200, 300, 500, 1,000, 2,000 ft). Show deep-
depth contours in light blue. Depths greater than set here are shown in white.
[Text (Important)]: Show or hide the important text information.
6.0 ft
15.0 ft
30.0 ft
6.0 ft
