1.19 Facsimile Receiver FAX-30

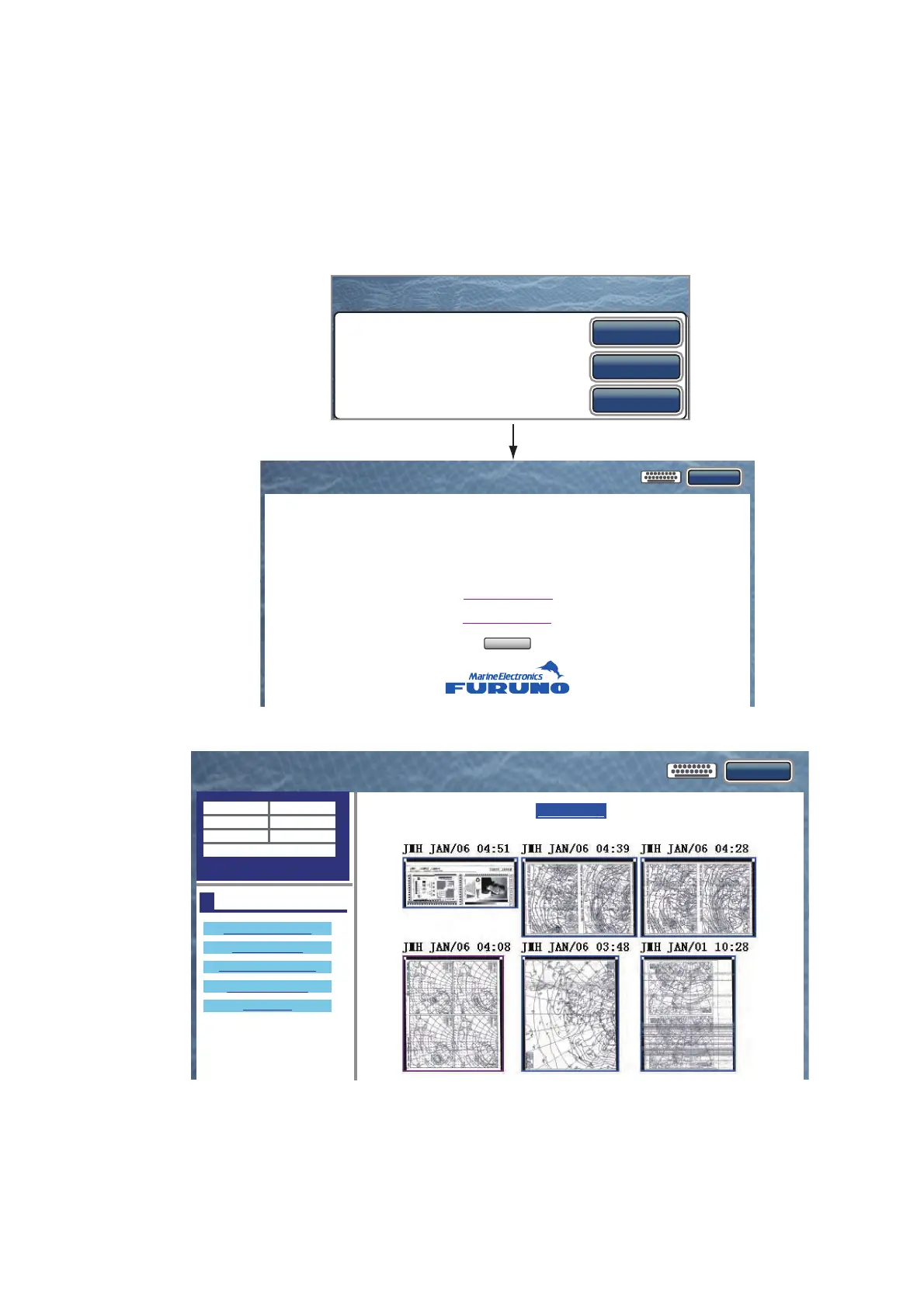

The FURUNO Facsimile Receiver FAX-30 installs in the TZT network and can be con-
trolled from a TZT display. Below are the steps to start fax operation.
1. At the installation of this equipment, connect the FAX-30 to the TZT.
2. Select [Menu] on the menu icon bar to open the main menu.
3. Select the [Initial Setup] - [FAX30 Browser] menu.
4. Select [WX FAX] or [NAVTEX].
5. Refer to the Operator’s Manual of the FAX-30 for operation information.
The FAX-30 display can be accessed only by one TZT display. When another TZT dis-
play accesses the FAX-30, control of the FAX-30 is given to that display after the pic-
ture is stopped completely. This sequence takes approximately one minute.
