Furuno TZT9 User Manual

1. SYSTEM INTRODUCTION
1-7

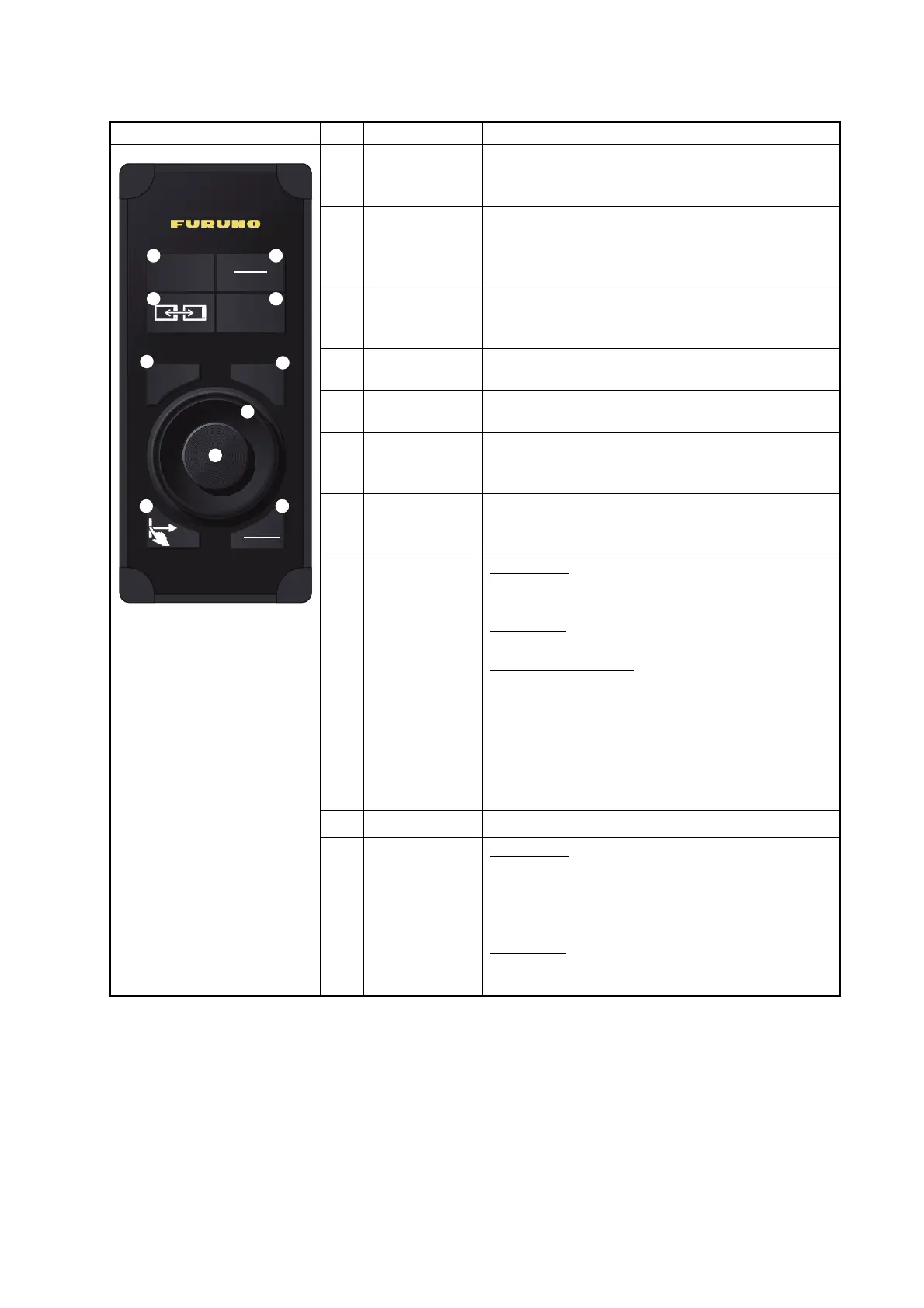

1.2.2 Remote Control Unit MCU-004
* When you switch the steering mode with the STBY•AUTO key, a beep sounds and
then one of the messages shown below appears. The message does not appear on
the home screen.
- STBY modeAUTO mode: "NAVpilot is engaged."
- AUTO modeSTBY mode: "NAVpilot is disengaged."
No. Key Function
1 STBY•AUTO
key
Switches the steering mode of the FURUNO
NAVpilot-700 series Autopilot between the
STBY and AUTO modes*.
2 HOME/BRILL
key
• Short push: Opens the display selection win-
dow.
• Long push: Opens the Brilliance/Power win-
dow.
3 CONTROL
key
Switches between displays that can be con-
trolled with the MCU-004 when multiple displays
are installed in the same network.
4 FUNC key Activates the function set at [Function Gesture]
in the [General] menu.
5 CURS•SCRL
key
Switches the function of the joystick between
the Cursor and Scroll modes.
6 CENTER key • Returns own ship to center of screen (Plotter/
Weather/Radar display).
• Cancels the echo history (Fish finder display).
7 Rotary knob • Selects an item from the menu and dialog
box.
• Zooms in (+) and out (-).
8 Joystick Short push
: Works same as tap gesture.
• Opens the pop-up menu.
• Activates the item selected by the cursor.
Long push
: Works same as long tap gesture.
• Opens the detail pop-up menu.
Operate the joystick
:
Cursor mode operation:
• Moves the cursor.
Scroll mode operation:
• Pans the display (Plotter/Weather/Radar dis-
play).
• Shifts the range and scrolls back the picture
(Fish finder display).
9 EDGE key
Opens the RotoKey
TM
menu..
10 CANCEL/
MOB key
Short push
:
• Closes the menu or dialog box.
• Stops the aural alarm.
• Ends the tool mode (End Route, End Move,
etc.).
Long push
:
• Enters the MOB mark (at the own ship’s posi-
tion).
7
8
HOME
BRILL
STBY
•
AUTO
STBY
•
AUTO
FUNC
1 2
43
CURS
•
SCRL
CENTER
5
6
9
CANCEL
MOB
10
