4 Setting the Controller
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
4-2 Setting the Status at Startup [Startup Settings]
4
4-2 Setting the Status at Startup [Startup
Settings]
You can set the status when the power supply is turned ON.
Inspection will start immediately after the power supply is turned ON, if you select the Scene number
and Scene group number that sets measurement contents.

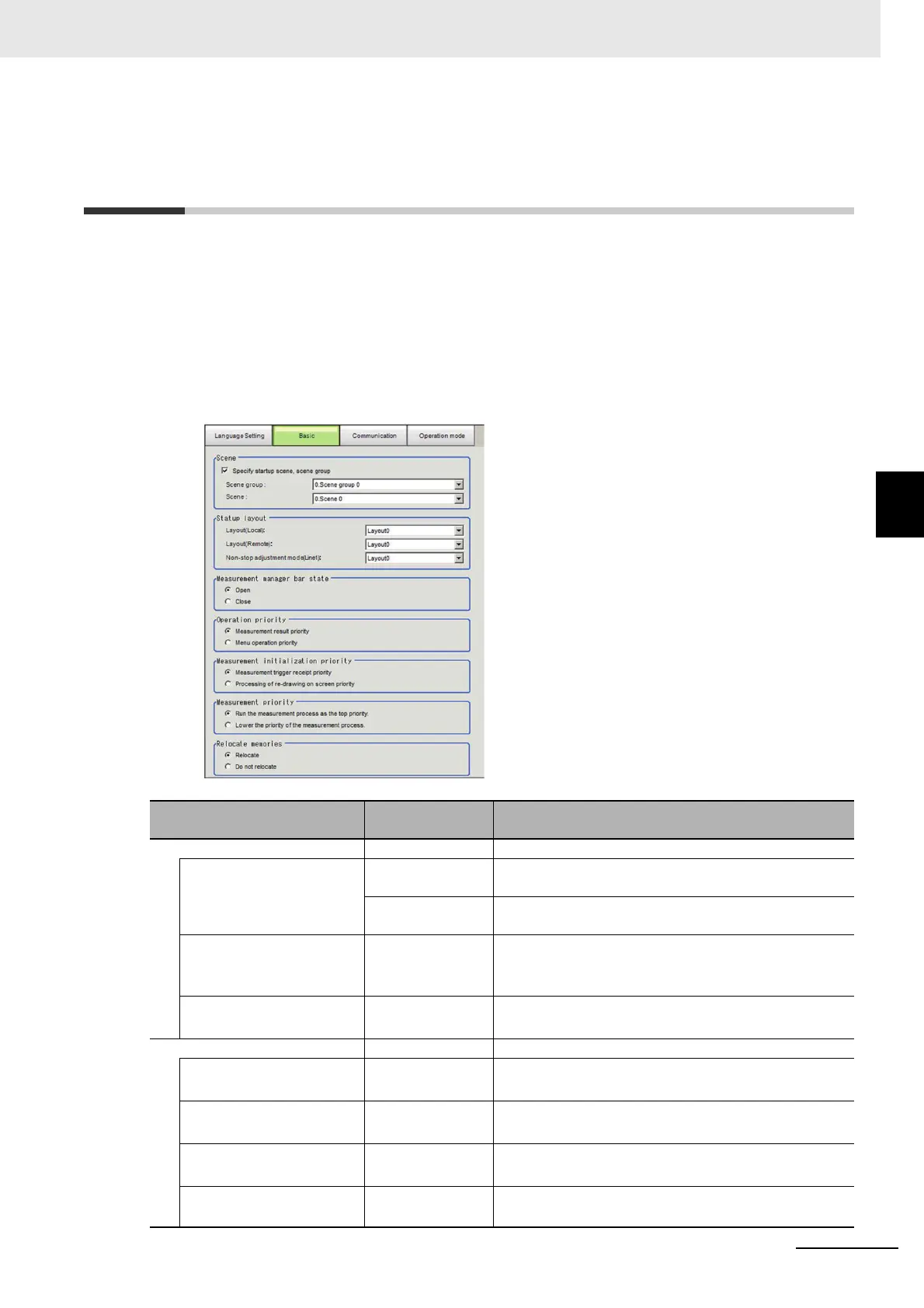

1 In the main window, select [Tool] [System settings] − [Basic] tab to see the Startup layout set-
tings.
The [Startup setting] dialog box is displayed.
2 Change the settings.
Setting Item
Set value
[Factory default]
Description
Scene
Specify startup scene,
scene group
[Selected] The selected the Scene number and Scene group num-
ber will be used at startup.
Not selected The Scene number and Scene group number last saved
with [Data save] function will be used at startup.
Scene group Scene group 0 to
31
[Scene group 0]
Select the Scene group number at startup.
Scene Scene 0 to 127
[Scene 0]
Select the Scene number at startup.
Startup layout Select the Layout number displayed at startup.
Layout (Local) Layout 0 to 8
[Layout 0]
Select the Layout number displayed at Sensor Control-
ler’s startup.
Layout (Remote) Layout 0 to 8
[Layout 0]
Select the Layout number displayed at Remote PC’s
startup.
Non-stop adjustment mode
(Line1)
Layout 0 to 8
[Layout 0]
Select the Layout number displayed at Non-stop adjust-
ment mode’s startup.
Measurement manager bar
state
• [Open]
•Close
Sets the Measurement Manager Bar status for Sensor
Controller startup
