9 Saving/Loading Data
9 - 10
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
9-4 Saving Logged Images in the Con-
troller Memory (RAM) to a RAMDisk
or an External Storage Device

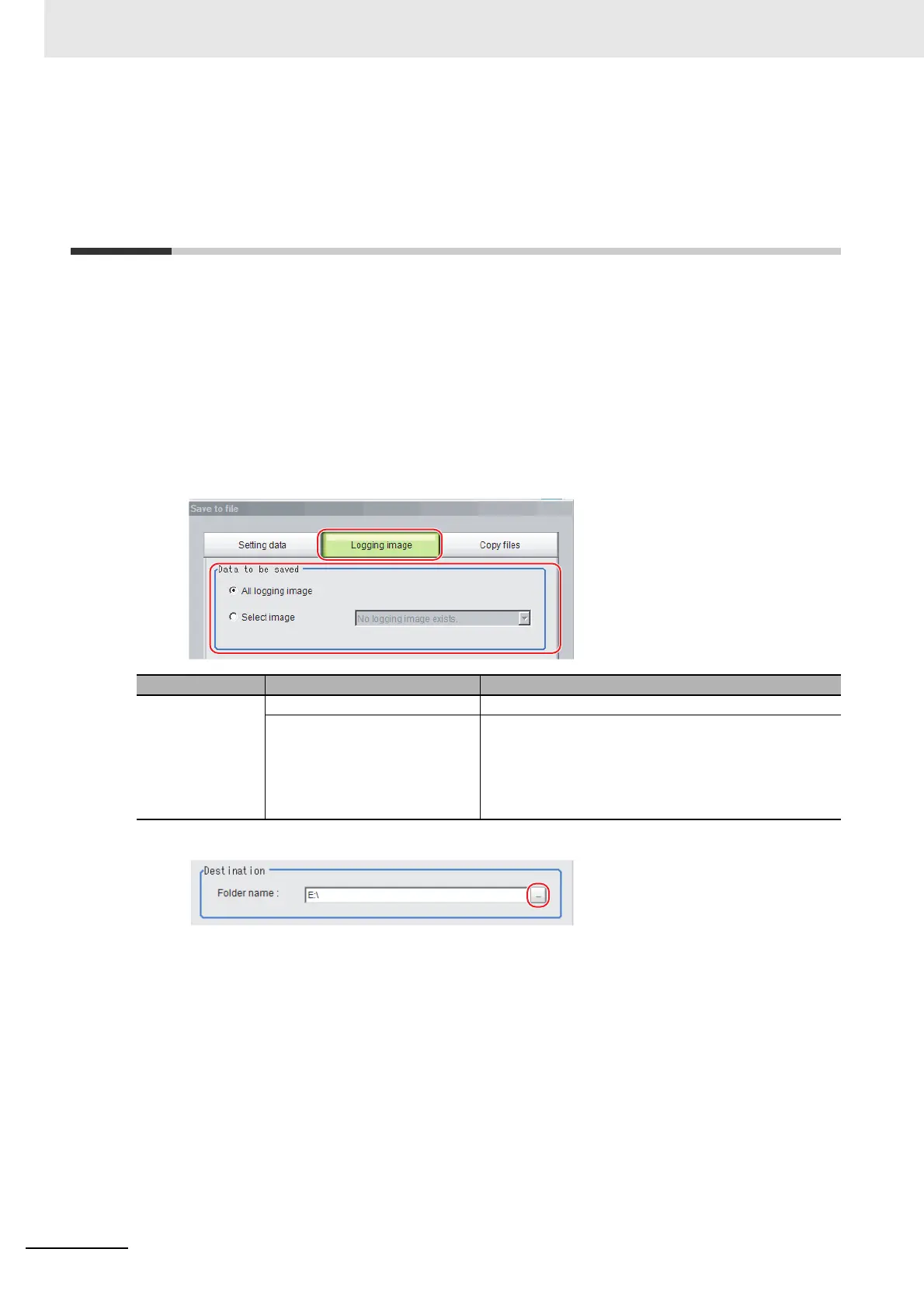

Use the following procedure to save image data that was logged in the Controller memory (RAM) to the
Controller RAM disk or an external storage device.
Refer to 9-1-1 About Saving Areas on page 9-3.
1 When saving data to external storage, insert the external storage device into the Sensor Con-
troller.
2 In the Main Window, select [Save to file] from the [Function] menu.
The [Save to file] dialog box is displayed.
3 Click [Logging image] and select the file to save.
4 Specify the destination folder.
5 Click [OK].
The dialog box showing transfer status is displayed, and the data is sent to the save destination.
Parameter Set value [Factory default] Description
Data to be saved [All logging image] All logged images are saved.
Select image The selected logged images are saved.
Click [] to select the image to save.
When [Latest measurement] - [Logging image] is
selected, the save file name will be LoggingIm-
age000.ifz.
