7-1 What Is a Scene Group?
A scene group is a collection of up to 128 separate scenes. Creating scene groups is convenient to
increase the number of scenes and to manage scenes according to categories.
For the FH5-L series or FZ5-600 series, a USB memory is required to create scene groups. Scene
group 0 is saved in the Controller, while scene groups 1 to 31 are saved in USB memory. (For the FH
series/FZ5-1100 series, all data is saved in the Controller.)

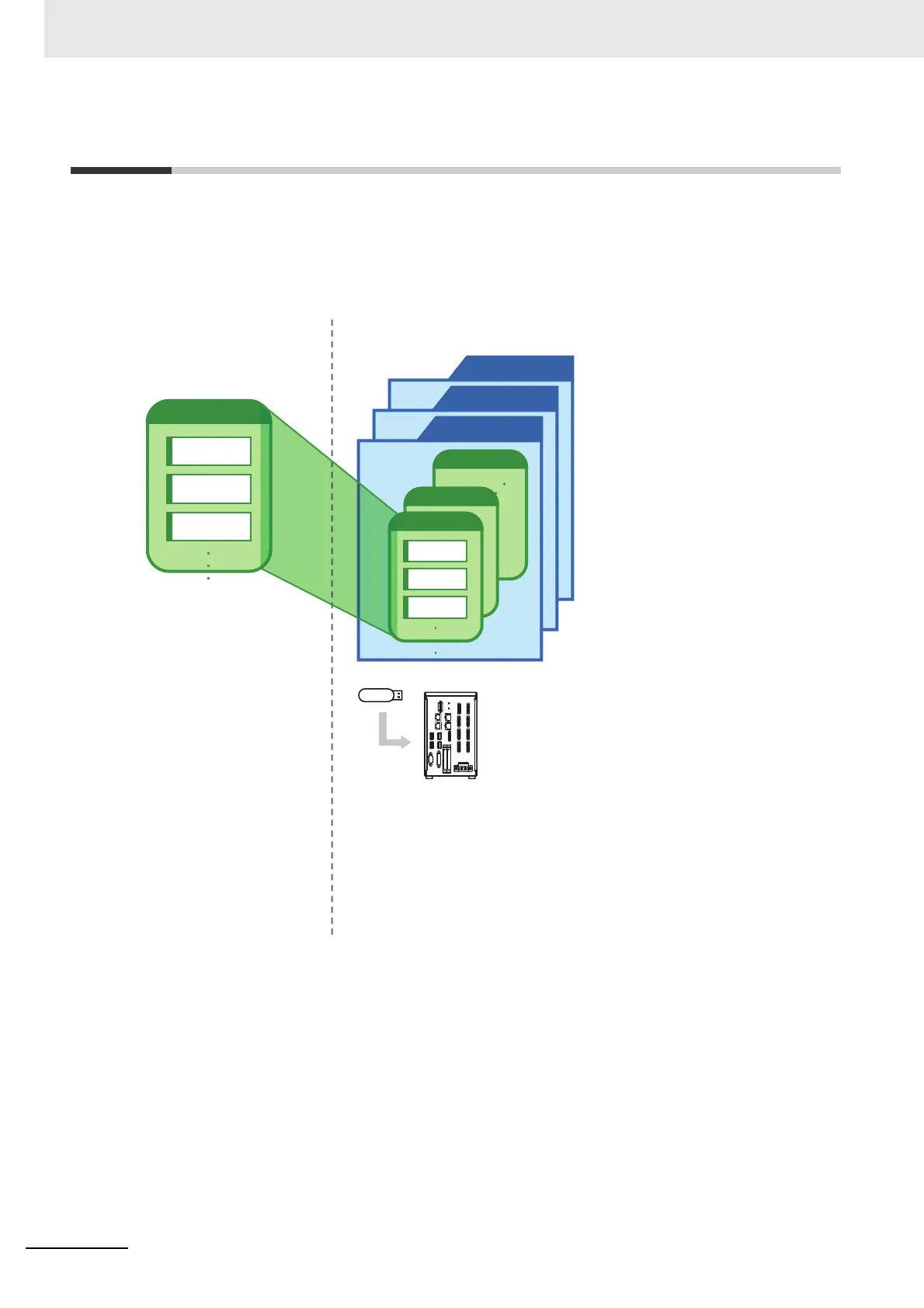

Scene Scene Group
Scene 0
Unit 0
Unit 1
Unit 2
Scene group 2
Scene group 1
Scene group 0
Scene 127
Scene 1
Scene 0
Scene group 0: Saved in the built-in flash memory
Scene groups 1 to 31: Saved in the USB memory device
USB memory
Sensor Controller
• For the FH5-L series or FZ5-600 series
All scene groups: Saved in the built-in flash memory by default
• For the FH series or FZ5-1100 series
