4 Setting the Controller
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
4-4 Setting Operation Mode [Startup Settings]
4
4-4-1 Setting the Operation Mode
This section describes the operation mode (FH series and FZ5-800/1100/1200 series only). You can
use a multi-core CPU to set the operation mode according to the application conditions. This helps to
reduce the takt time and downtime. The operation mode is set in the startup settings.
Refer to 4-2 Setting the Status at Startup [Startup Settings] on page 4-3 and 1-1-2 Functional Compari-
son between the FH-series, FHV-series and FZ5-series Controllers on page 1-3.
1 In the Main Window, select [System settings] − [Startup settings] from the [Tool] menu.
The Startup settings dialog box is displayed.

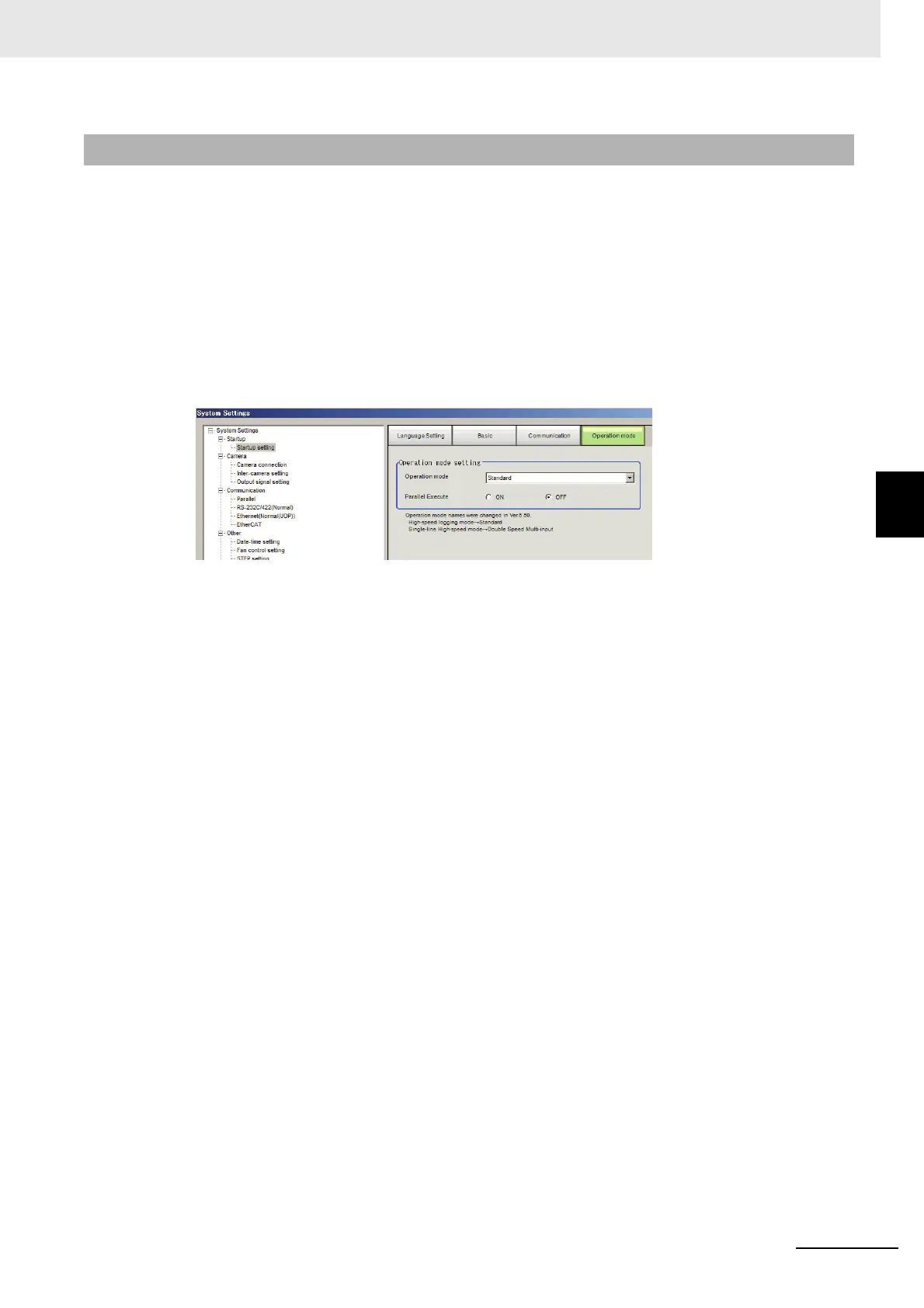

2 Click the [Operation mode] button and select the operation mode.
3 Click the [Apply] Button.
4 In the Adjustment Window (layout 0), click [Data save] in the Toolbox Pane to save the settings
data.
5 In the Main Window, select [System restart] from the [Function] menu.
The System restart dialog box is displayed.
6 Click [OK].
4-4-1 Setting the Operation Mode
