4 - 43
4 Setting the Controller
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
4-7 Setting the SHTOUT Signal [Output Signal Settings]
4
4-7 Setting the SHTOUT Signal [Output
Signal Settings]
This function is exclusively for an FH series Sensor Controller.
This setting affects the SHTOUT signal that is output when the exposure of the Camera ends.You can
detect when the exposure ends with the SHTOUT signal to minimize the time to hold the workpieces
still for taking images. This allows you to move the workpiece or the Camera immediately after the
exposure ends.
Important
• You cannot use the STGOUT signal and SHTOUT signal at the same time. Select the signal
to output depending on the application.
• [Output signal setting] is effective only with FH series.
• SHTOUT signal: SHTOUT0 to SHTOUT7 is tied to the Line number, not camera number.
When use the Multi-line random-trigger mode, confirm the Line number, and then use
SHTOUT signal.
• [Output Signal Settings] apply only to the FH series Sensor Controller.
In FZ5 series Sensor Controller, you cannot use the SHTOUT signal regardless of what is set
in [Output Signal Settings].

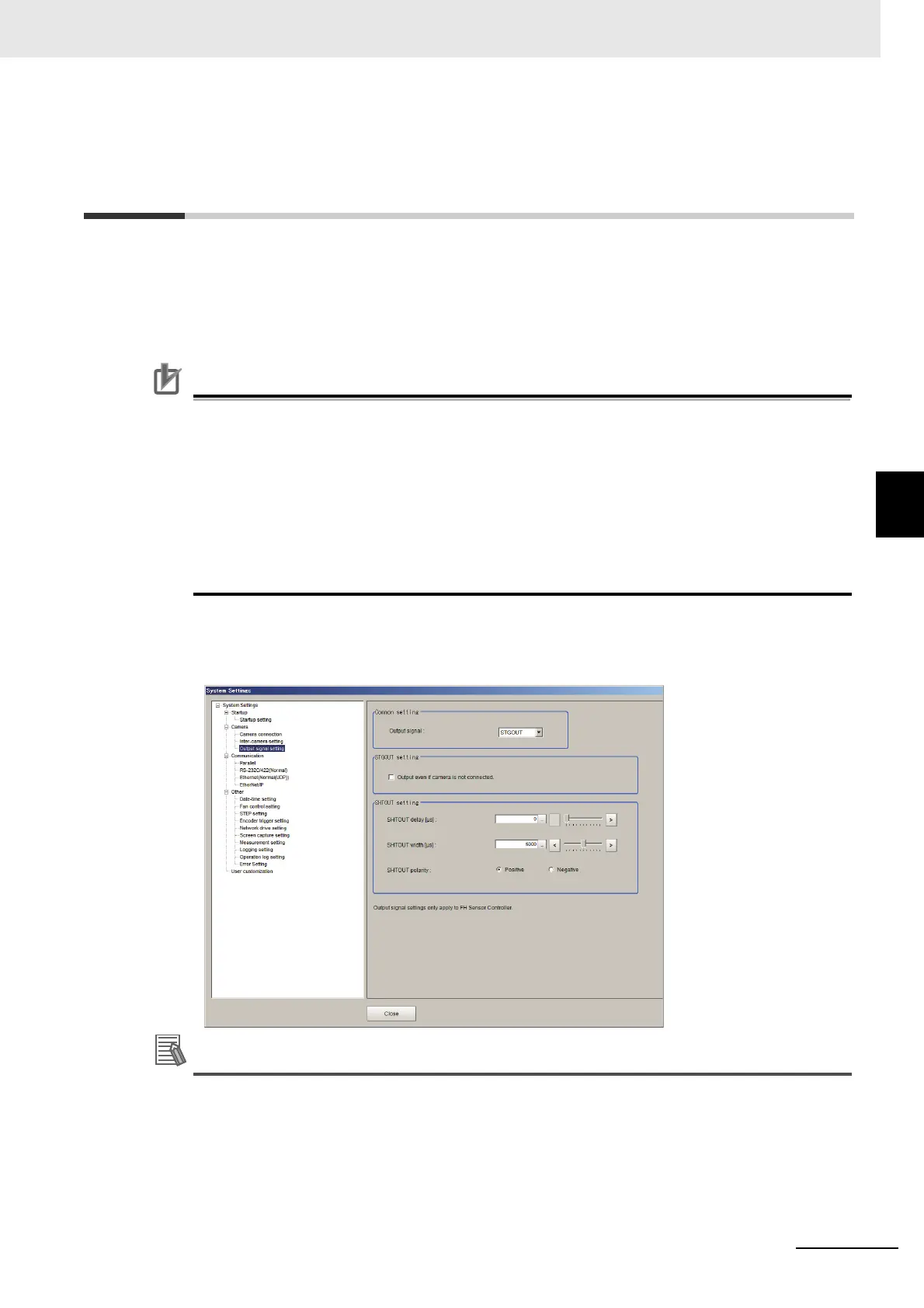

1 In the Main Window, select [Camera] − [Output Signal Setting] from the [Tool] menu.
The settings dialog box for the output signals is displayed.
Additional Information
• If the [Output Signal Selection] is set to [SHTOUT], the SHTOUT signal is output according to
the settings in the [Individual Line Settings]. If the [Output Signal Selection] is set to
STGOUT, the STGOUT signal is output according to the settings in the [Electronic flash set-
ting] for a camera input processing item.
• If you are using the Camera Image Input HDR, or Camera Image Input HDR Lite processing
item, the SHTOUT signal is output for every image that is taken.
